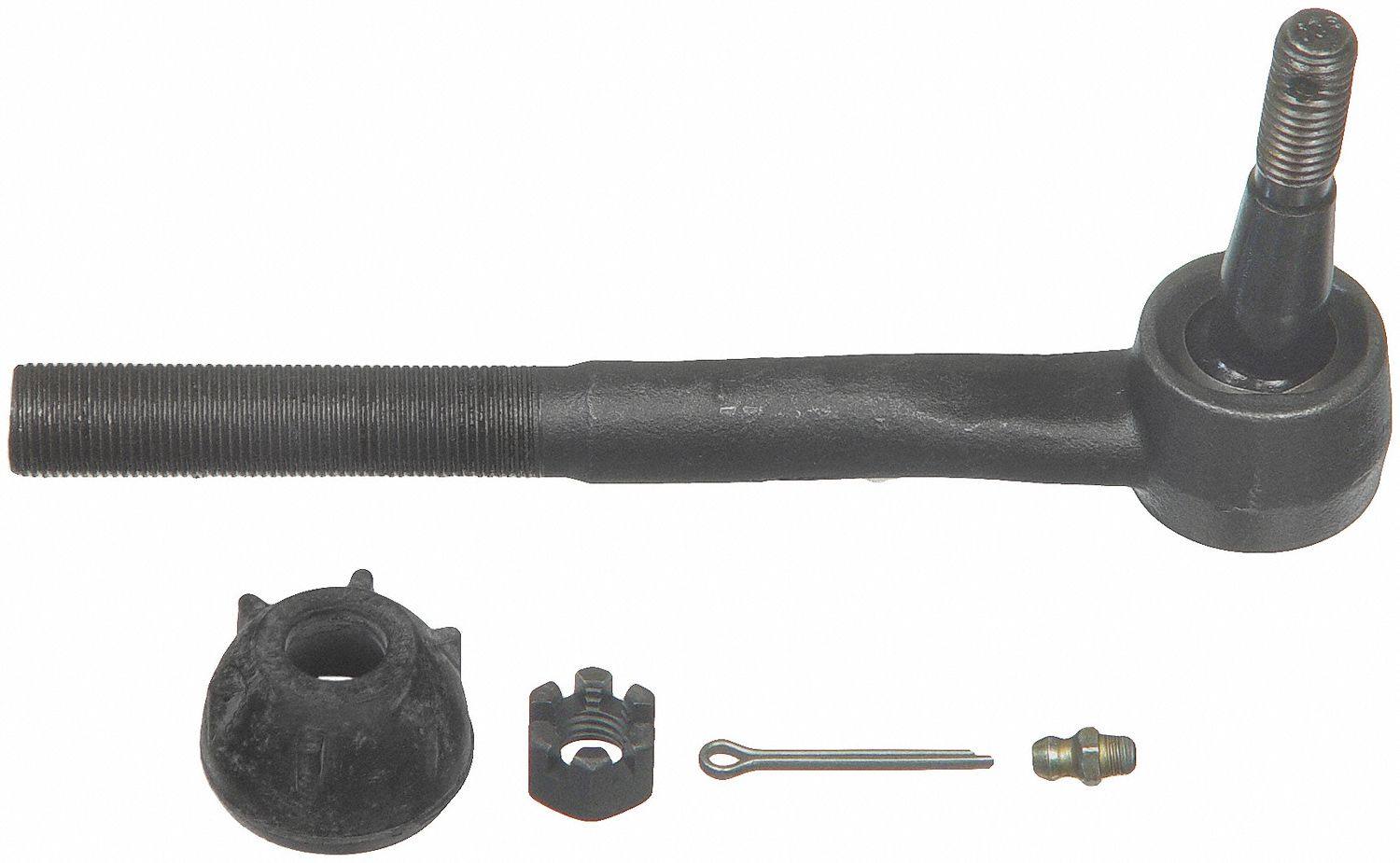

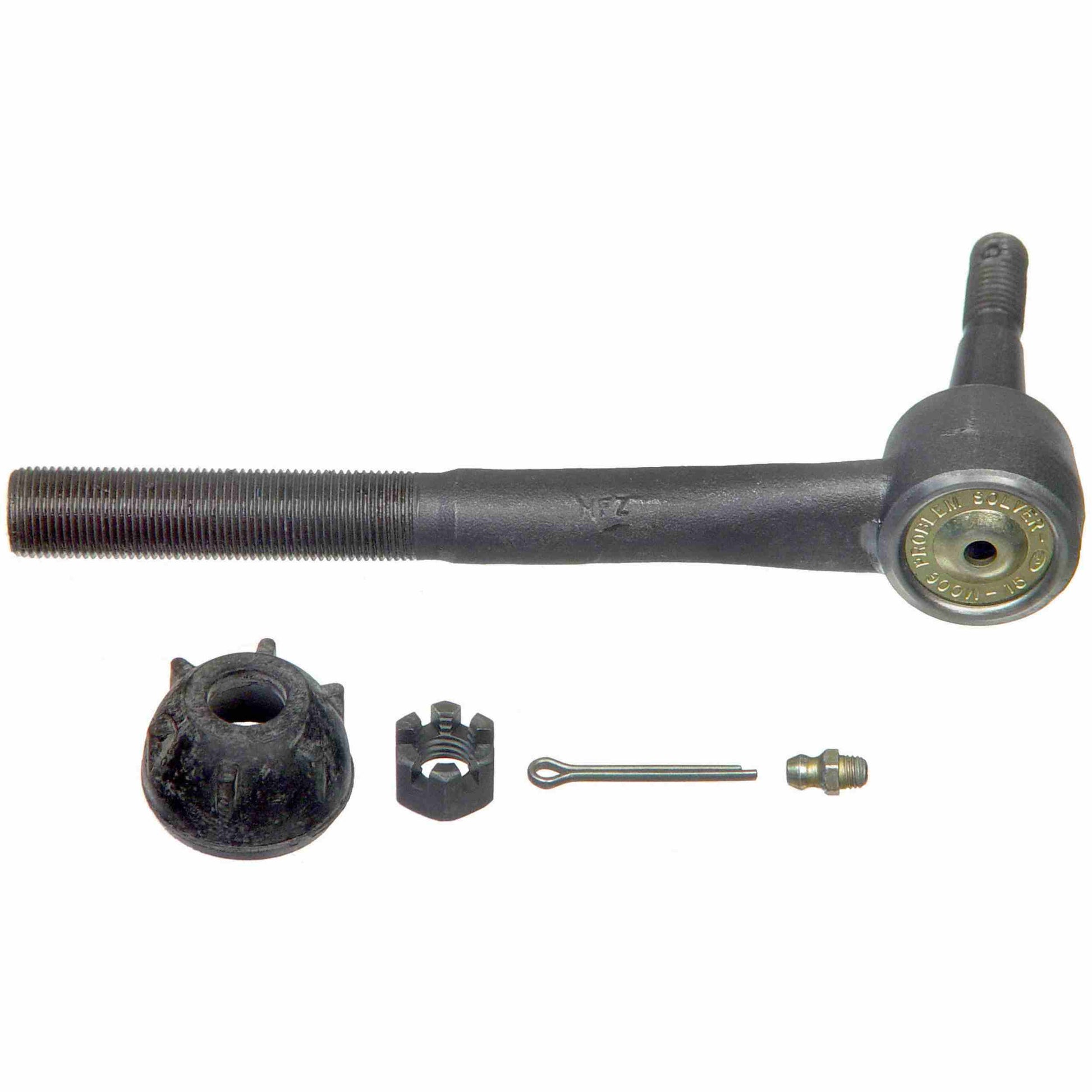

Moog Tie Rod Out Astor 90-95

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications
Tie Rods
Stud Center to End (in): 7.040
Rod Thread: .687-18R
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.500
Stud Diameter Dimension (bottom in.): 0.622
Stud Thread: M12-1.75
Specification Image Reference: OUTERTIEROD.tif
End 1 Thread Diameter (IN): 0.687
End 1 Thread Direction: Clockwise
End 1 Threads Per Inch: 18

Applications
Chevrolet Astro 2005-1990 Outer AWD

GMC Safari 2005-1990 Outer AWD
