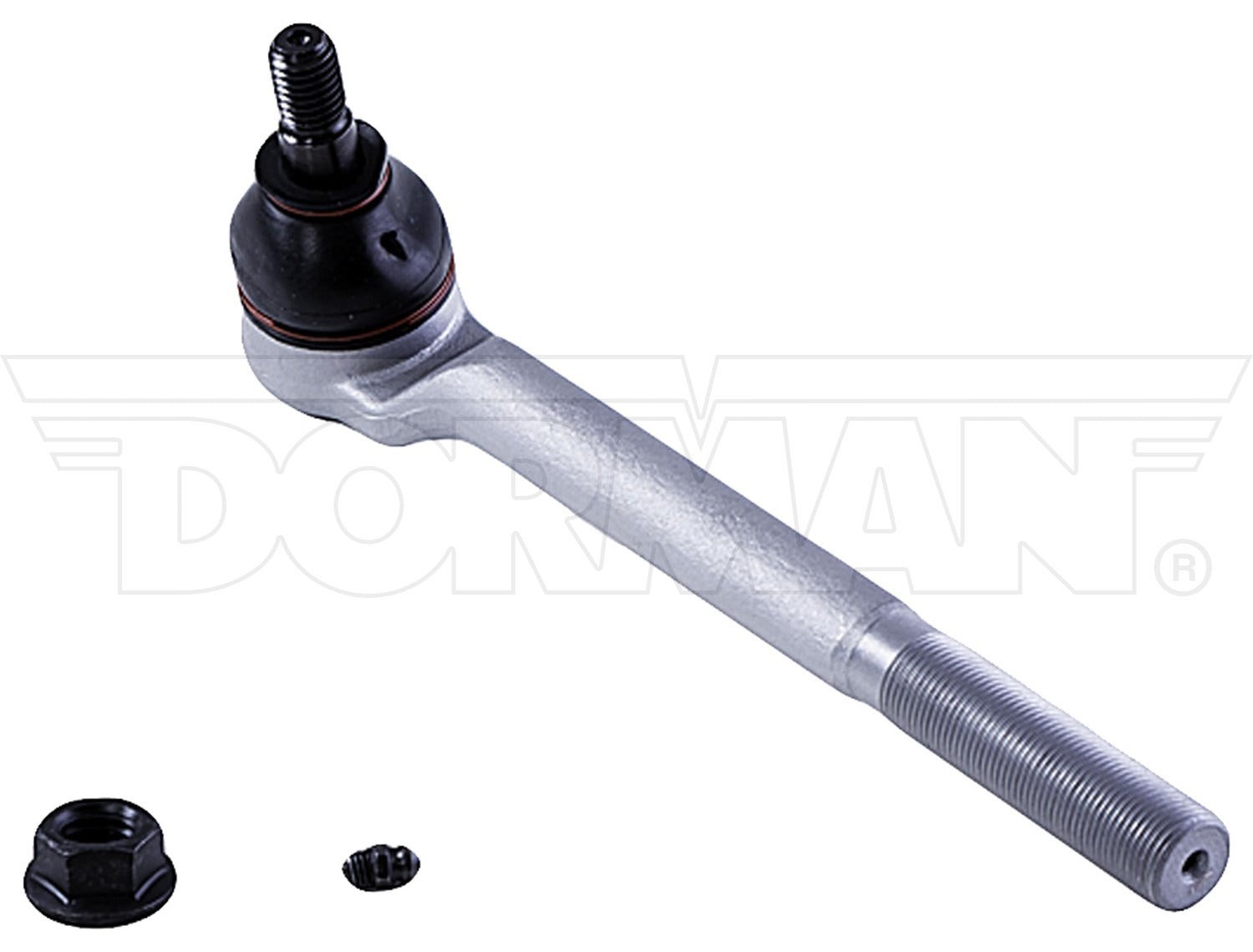

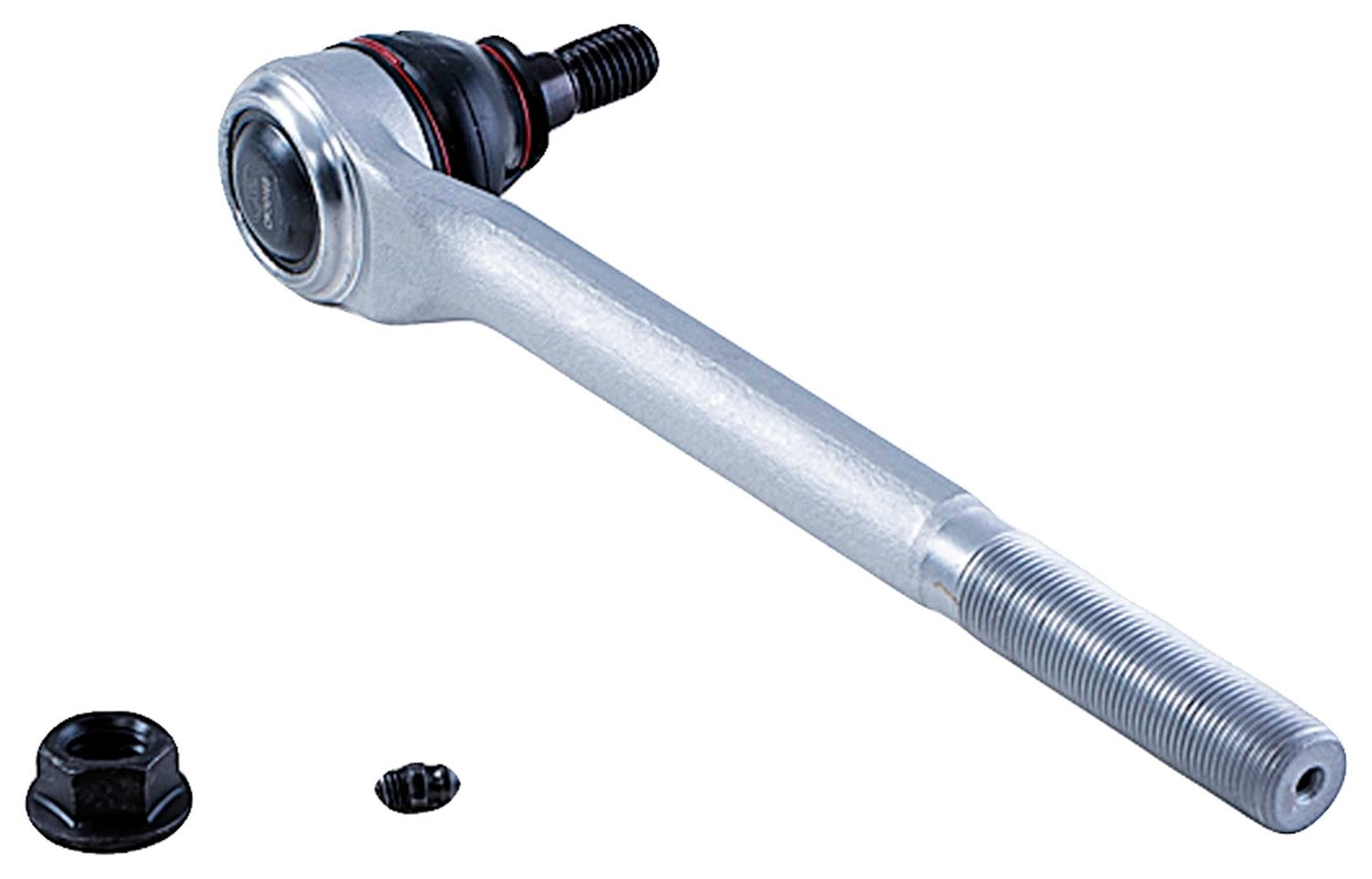

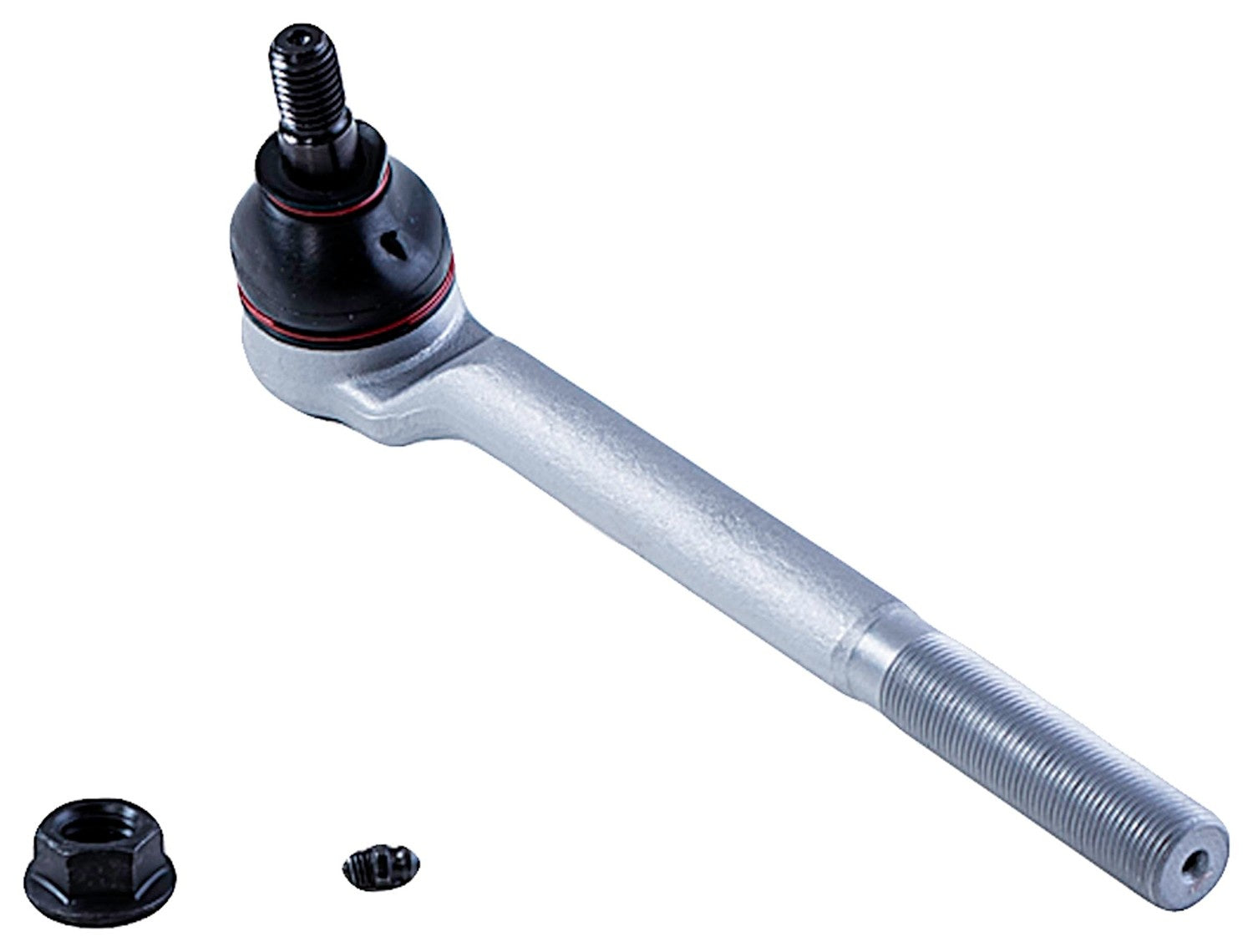

Dorman Tie Rod End

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Product Specifications

Color: Silver
End 1 Attachment Type: Threaded
End 1 Gender: Male
End 2 Attachment Type: Taper
End 2 Gender: Male
Finish: Coated
Grade Type: Premium
Grease Fitting Included: Yes
Length: 213.5 mm
Material: Steel
Mounting Hardware Included: Yes
Package Contents: Tie Rod, 1 Nut
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM: Piece
Thread Pitch: 18 LH; 1.75
Tie Rod End Thread Diameter: 11/16 In., 12 mm

Application Summary: Chevrolet 2005-95, GMC 2004-95, Isuzu 2000-96

Vehicle Fitments:
