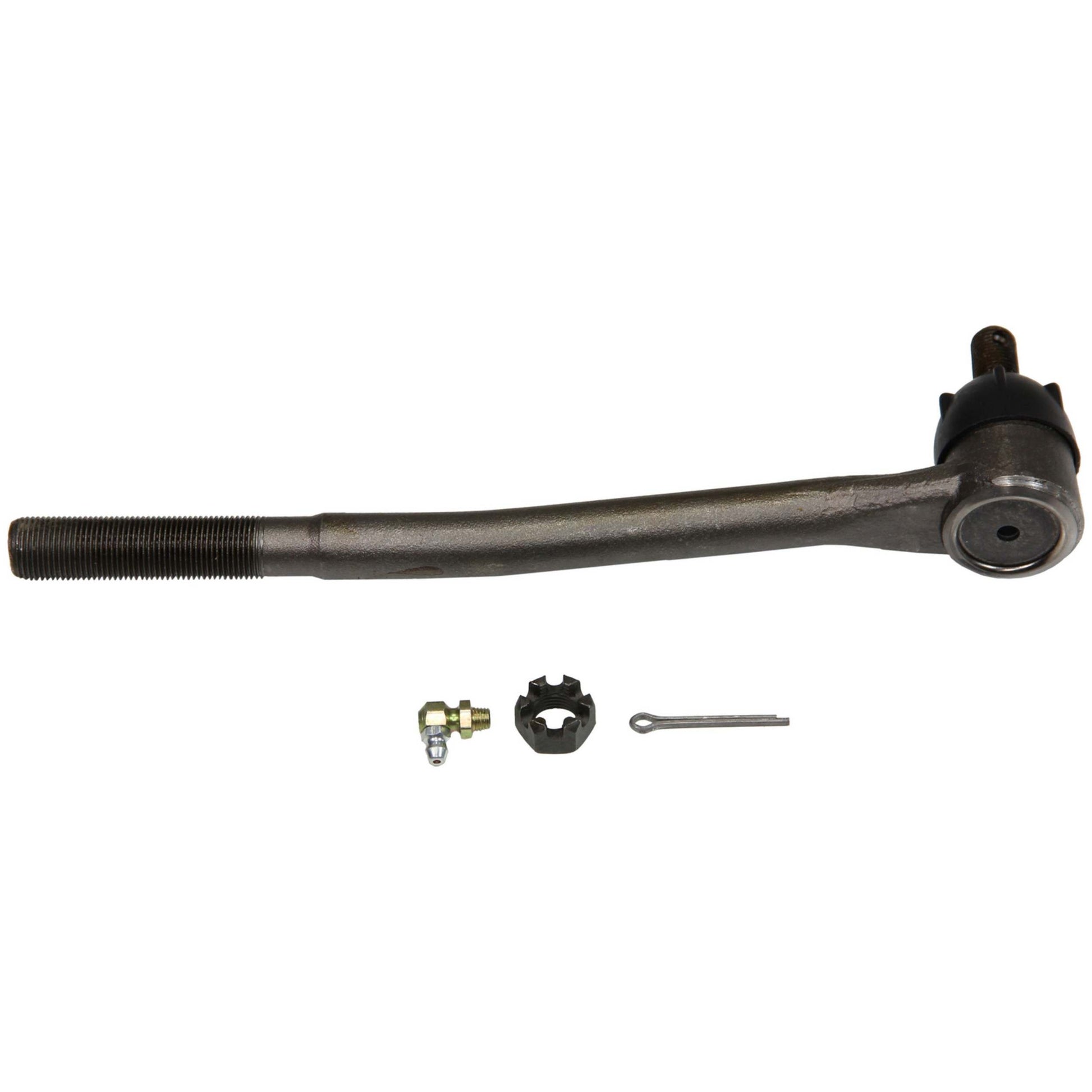

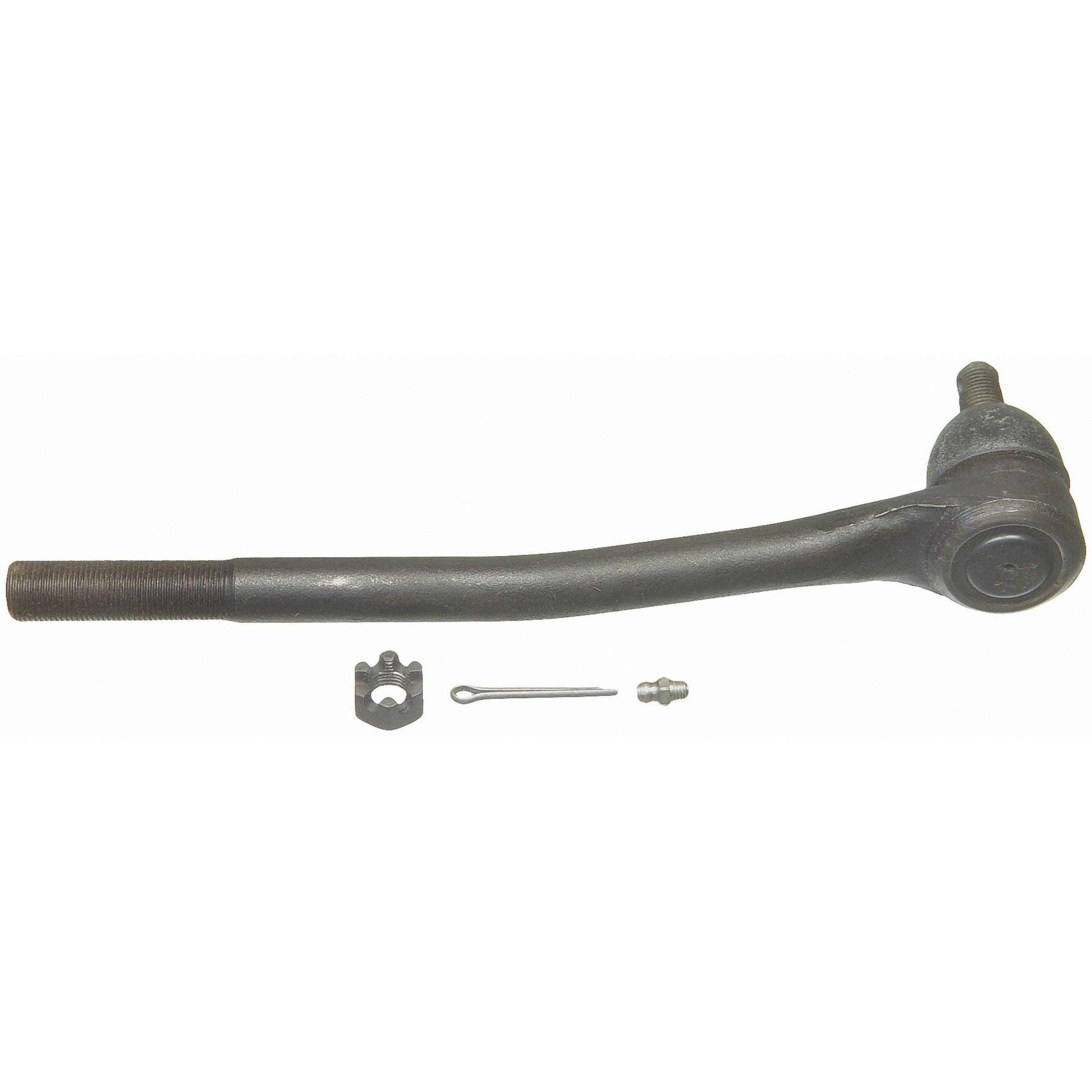

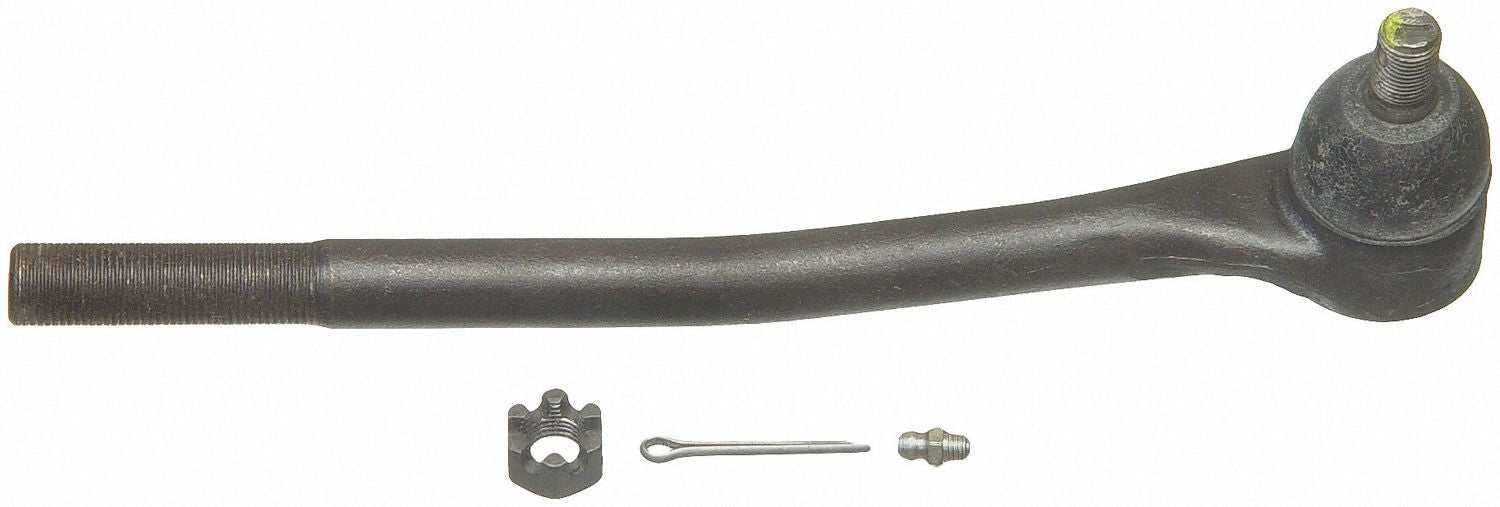

Moog Tie Rod End
Moog Tie Rod End
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyMOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
Features:
Loose or worn chassis parts can lead to premature tire wear
Engineered to meet or exceed OE part performance
Stud design is optimized to provide ideal stud swing and strength for each application.
Wrench flats on housing and stud provide easy installation and alignment adjustment.
Assembled in the USA
Specifications:
- Greasable: Yes
- Stud Center to End (in): 10.520
- Rod Thread: 11/16-18 UNS-2A
- Configuration: BENT
- Rod Type (Male / Female): MALE
- Stud Diameter Dimension (top in.): 0.556
- Stud Diameter Dimension (bottom in.): 0.622
- Stud Thread: M12X1.75
- Rack End Thread: M12X1.75
- Dust Boot Included: Yes
- End 1 Thread Diameter (IN): 11/16
- End 1 Thread Direction: Counterclockwise
- End 1 Threads Per Inch: 18
- End 2 Thread Diameter (MM): 12.0
- End 2 Thread Pitch (MM): 1.75
