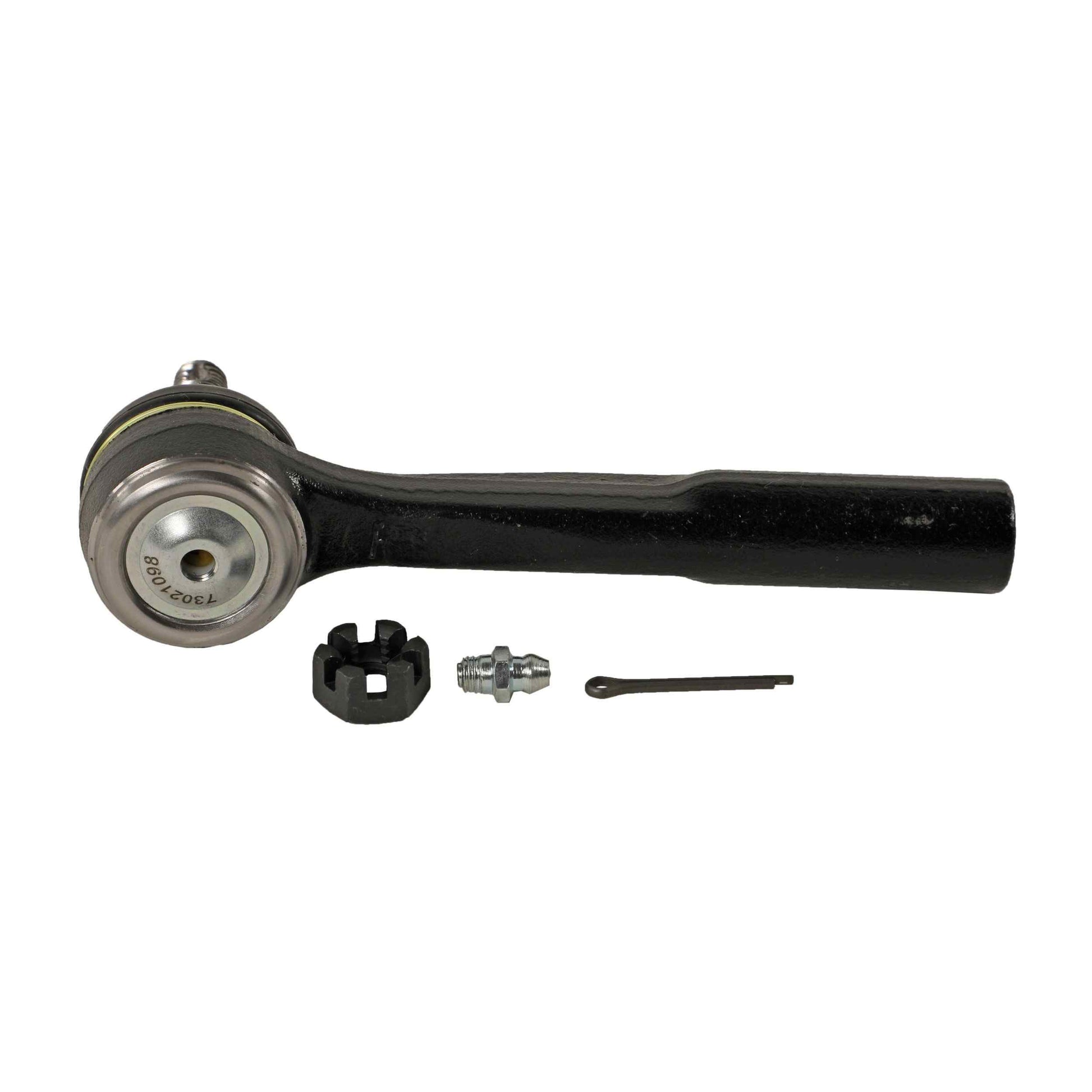

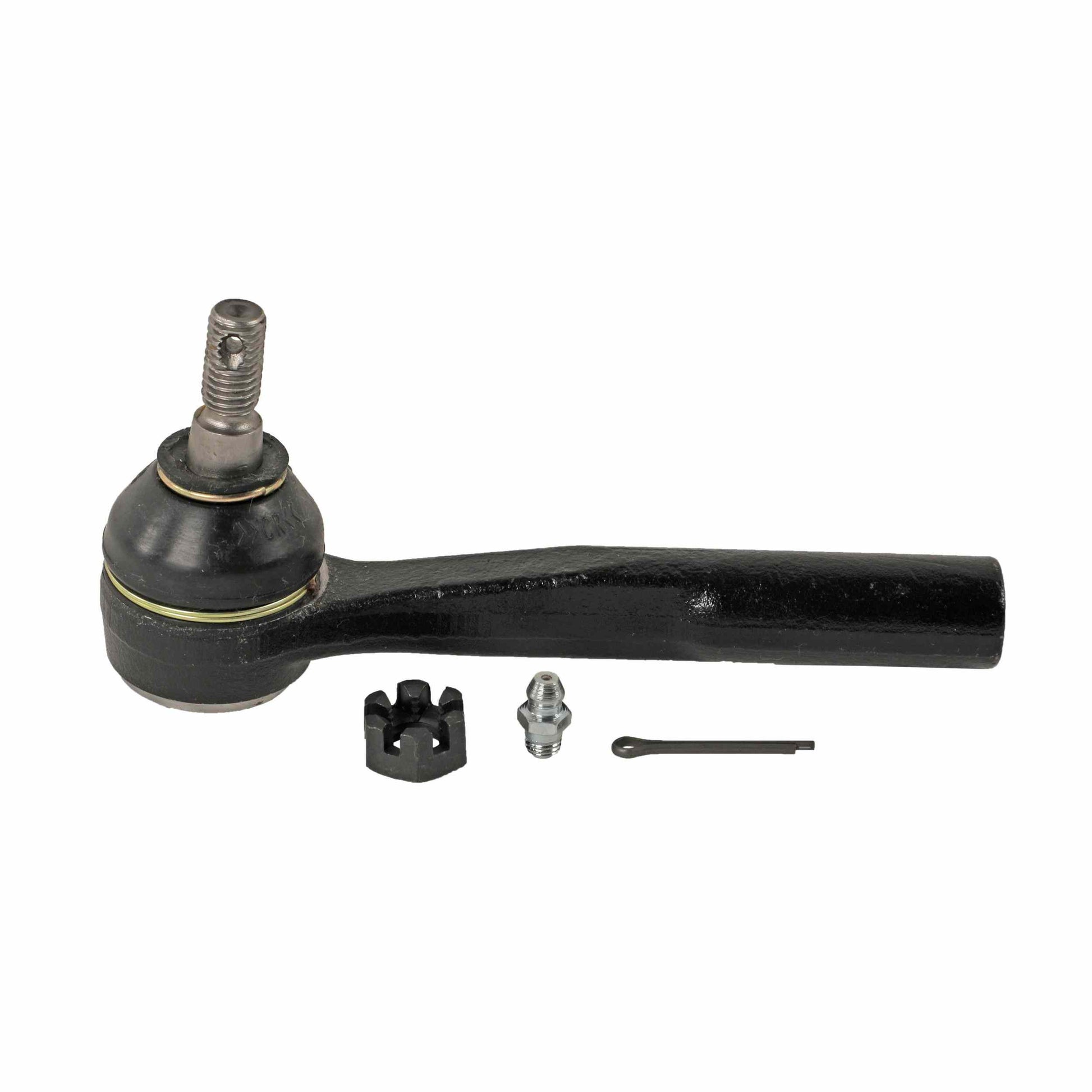

Moog Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

•  Restores like-new steering and handling
• Coated for corrosion resistance
• Loose or worn chassis parts can lead to premature tire wear
•  Construction and design validated by MOOG engineers
• Engineered to provide long life and dependability
• Includes any necessary hardware

Specifications

• Tie Rods

  • Rod Thread: M14 X 1.5-6H RH
  • Configuration: STRAIGHT
  • Rod Type (Male / Female): FEMALE
  • Stud Thread: M10 X 1.25-6G RH
  • End 1 Thread Diameter (MM): 14.0
  • End 1 Thread Pitch (MM): 1.5
  • End 1 Thread Direction: Clockwise
  • End 2 Thread Diameter (MM): 10.0
  • End 2 Thread Pitch (MM): 1.3
  • End 2 Thread Direction: Clockwise

Application

• Fiat 500L 2019-2014 Right Outer
• Fiat 500X 2018-2016 Right Outer
• Jeep Renegade 2018-2015 Right Outer
