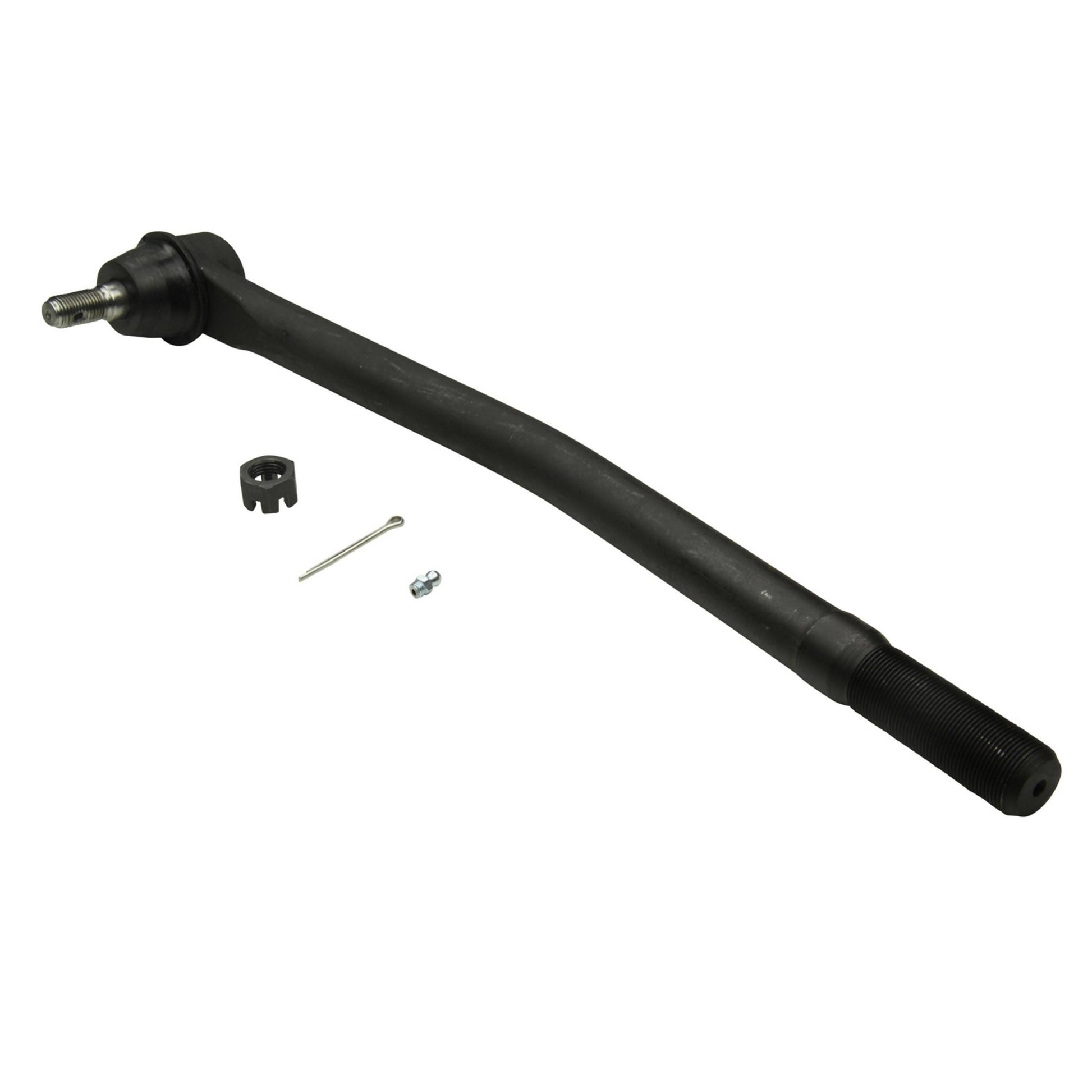

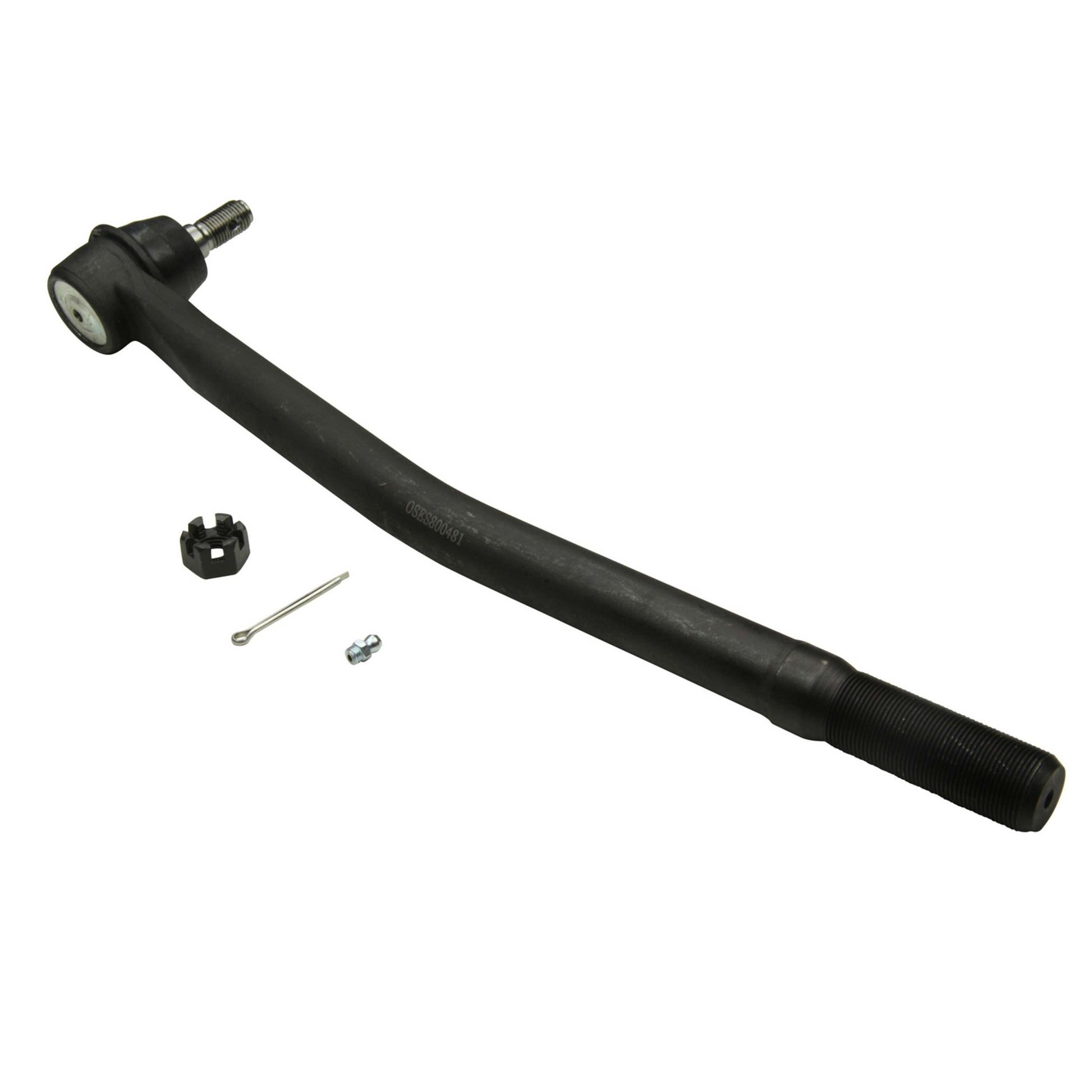

Moog Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

• Loose or worn chassis parts can lead to premature tire wear
• Engineered to meet or exceed OE part performance
• Stud design is optimized to provide ideal stud swing and strength for each application.
• Wrench flats on housing and stud provide easy installation and alignment adjustment.
• Assembled in the USA

Specifications

• Tie Rods

  • Greasable: Yes
  • Stud Center to End (in): 17.000
  • Rod Thread: 1" - 18"
  • Configuration: BENT
  • Rod Type (Male / Female): MALE
  • Stud Diameter Dimension (top in.): 0.613
  • Stud Diameter Dimension (bottom in.): 0.703
  • Stud Thread: M14 X 1.50
  • Rack End Thread: M14 X 1.50
  • Specification Image Reference: OUTERTIEROD.tif
  • Dust Boot Included: Yes
  • End 1 Thread Diameter (IN): 1.000
  • End 1 Thread Direction: Clockwise
  • End 1 Threads Per Inch: 18
  • End 2 Thread Diameter (MM): 14.0
  • End 2 Thread Pitch (MM): 1.5
  • End 2 Thread Direction: Clockwise

Application

• Ford E-150 2014-2008 Left Inner
• Ford E-250 2014-2008 Left Inner
• Ford E-350 Super Duty 2018-2008 Left Inner
• Ford E-450 Super Duty 2017-2008

Vehicle Fitments:
