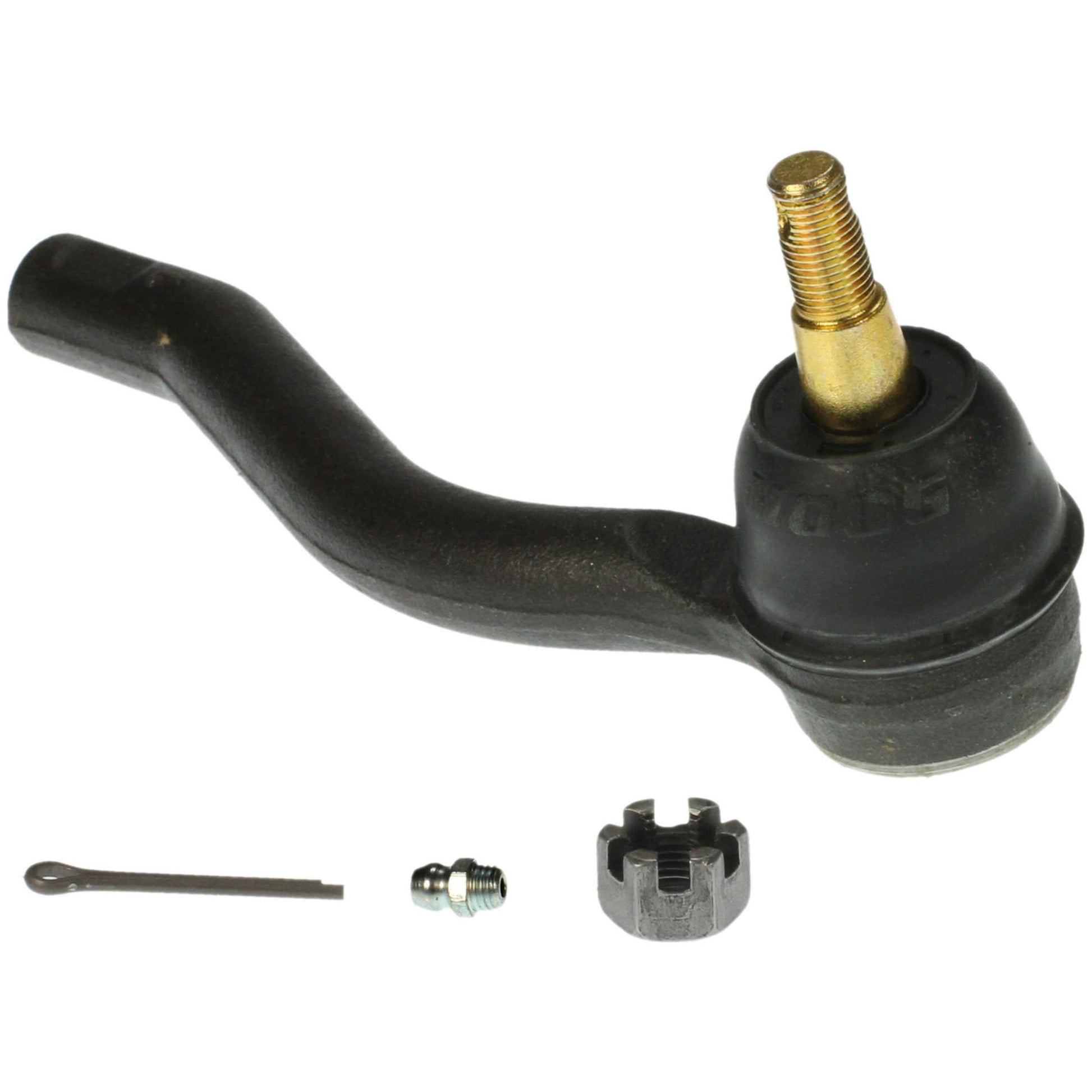

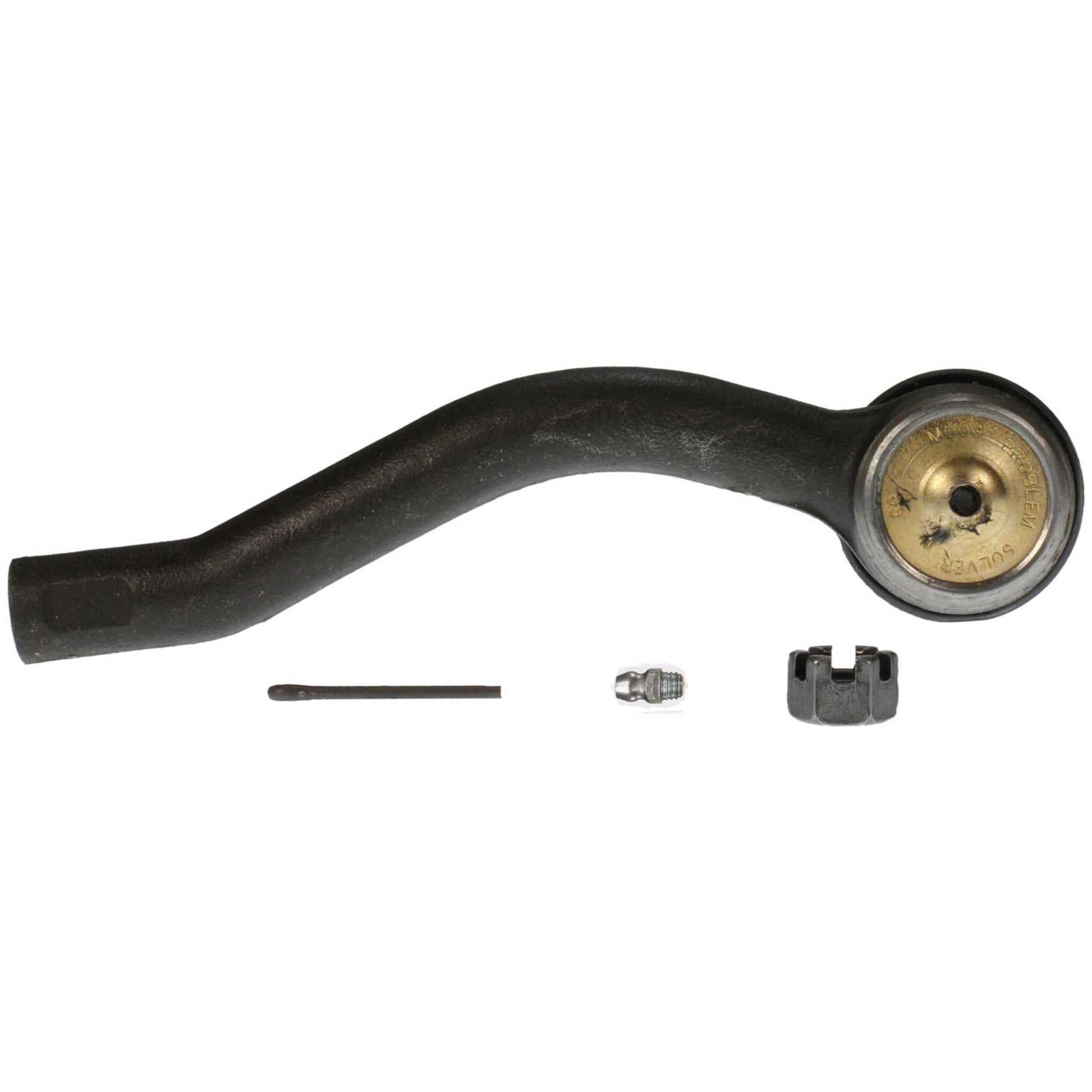

Moog Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

• Loose or worn chassis parts can lead to premature tire wear
• Exclusive cover plate protects against contaminants leaking into the bearing surface
• Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
• Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
• Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
• Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications

Greasable: Yes

Stud Center to End (in): 7.600

Rod Thread: M14X1.5

Configuration: Bent

Rod Type (Male / Female): Female

Stud Diameter Dimension (top in.): 0.550

Stud Diameter Dimension (bottom in.): 0.724

Stud Thread: M12X1.25

Rack End Thread: M12X1.25

Dust Boot Included: Yes

End 1 Thread Diameter (mm): 14.0

End 1 Thread Pitch (mm): 1.5

End 1 Thread Direction: Clockwise

End 2 Thread Diameter (mm): 12.0

End 2 Thread Pitch (mm): 1.25

Vehicle Fitments:
