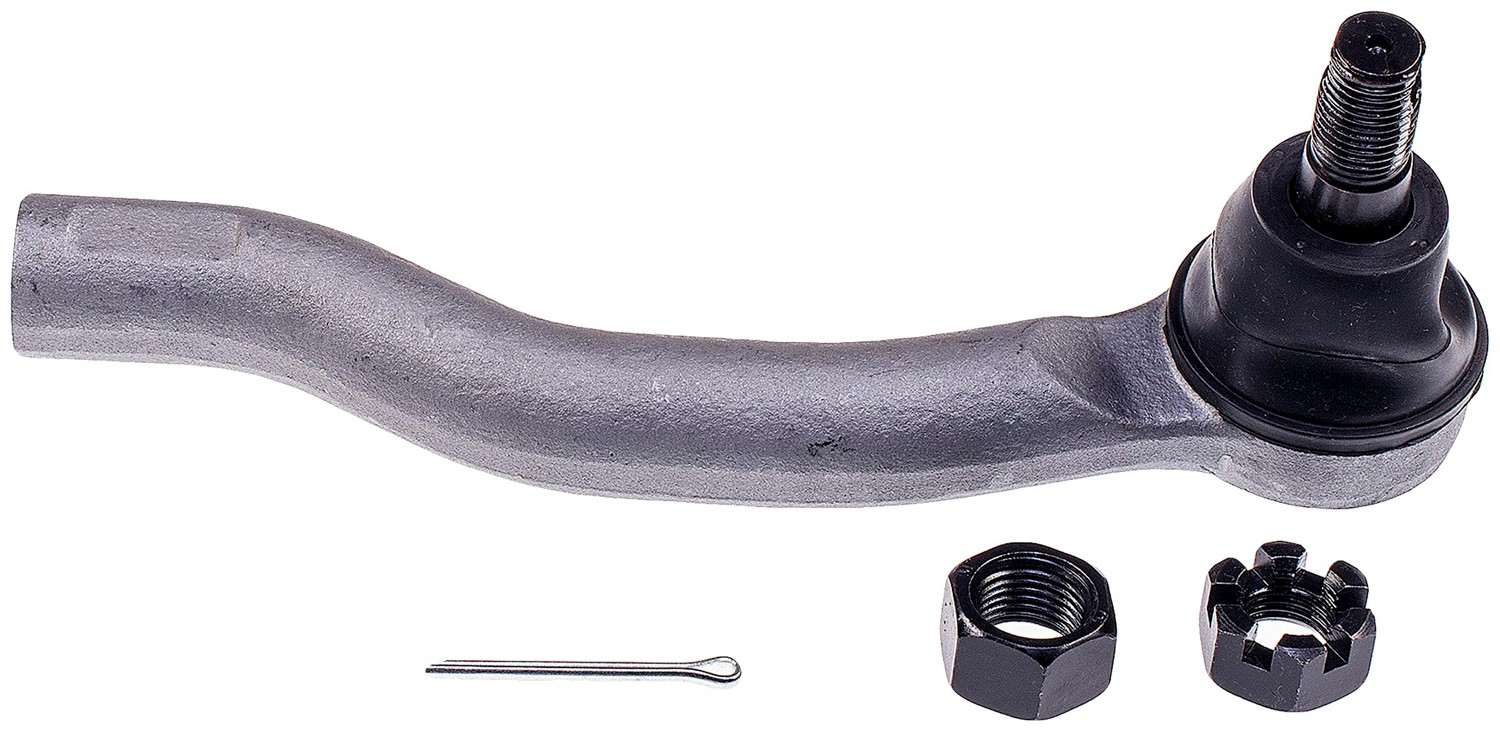

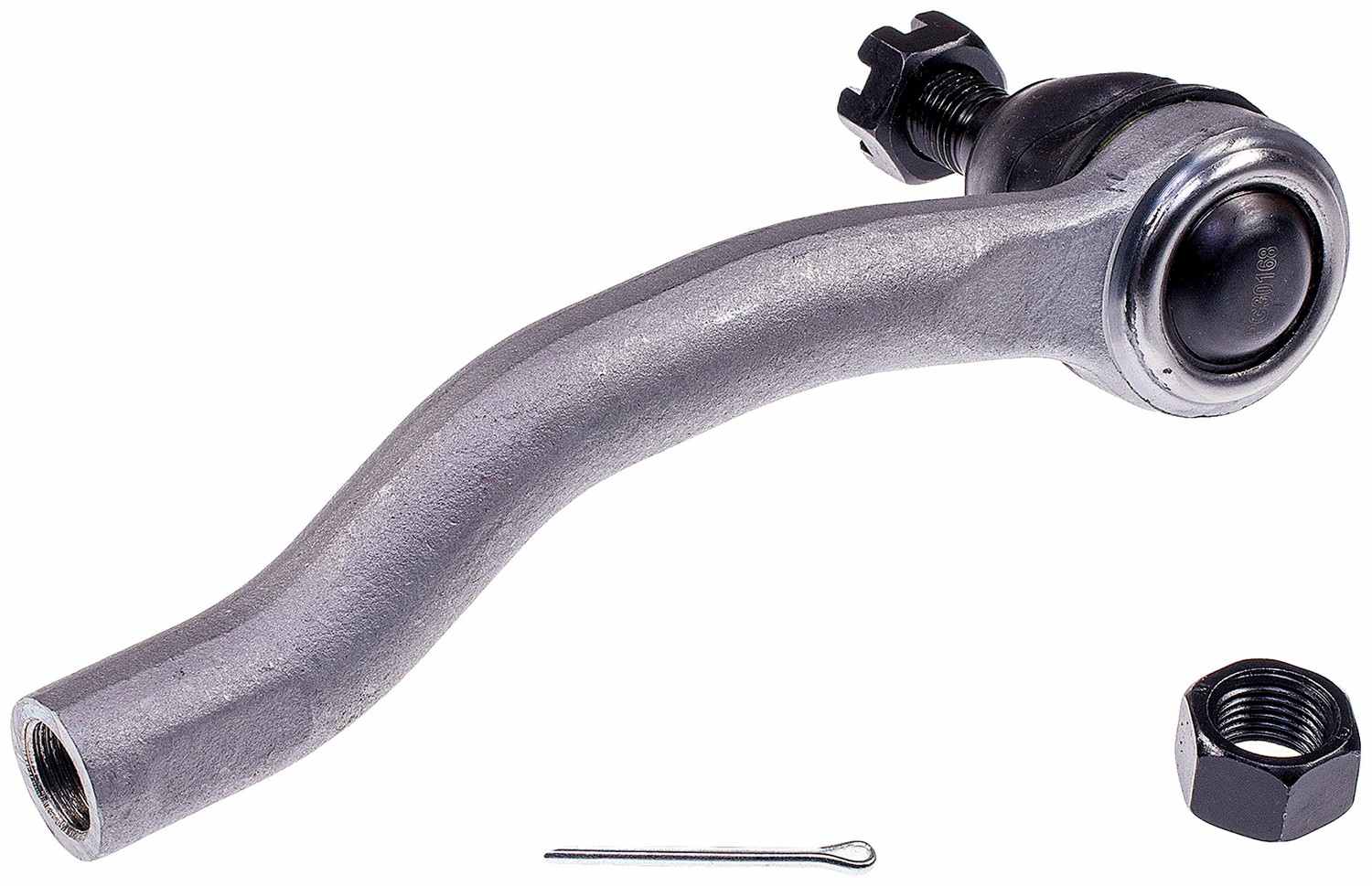

Dorman Tie Rod End - Outer

Application Summary: Nissan 2018-05, Suzuki 2012-09

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Product Specifications

• Color: Silver
• End 1 Attachment Type: Threaded
• End 1 Gender: Female
• End 2 Attachment Type: Taper
• End 2 Gender: Male
• Finish: Coated
• Grade Type: Premium
• Grease Fitting Included: No
• Length: 182 mm
• Material: Steel
• Mounting Hardware Included: Yes
• Package Contents: Tie Rod, 1 Castle Nut, 1 Cotter Pin, 1 Nut
• Package Quantity: 1
• Packaging Type: Box
• Selling Package Quantity UOM: Piece
• Thread Pitch: 1.5, 1.5
• Tie Rod End Thread Diameter: M16, M14
• Brand: Dorman - Premium XL
