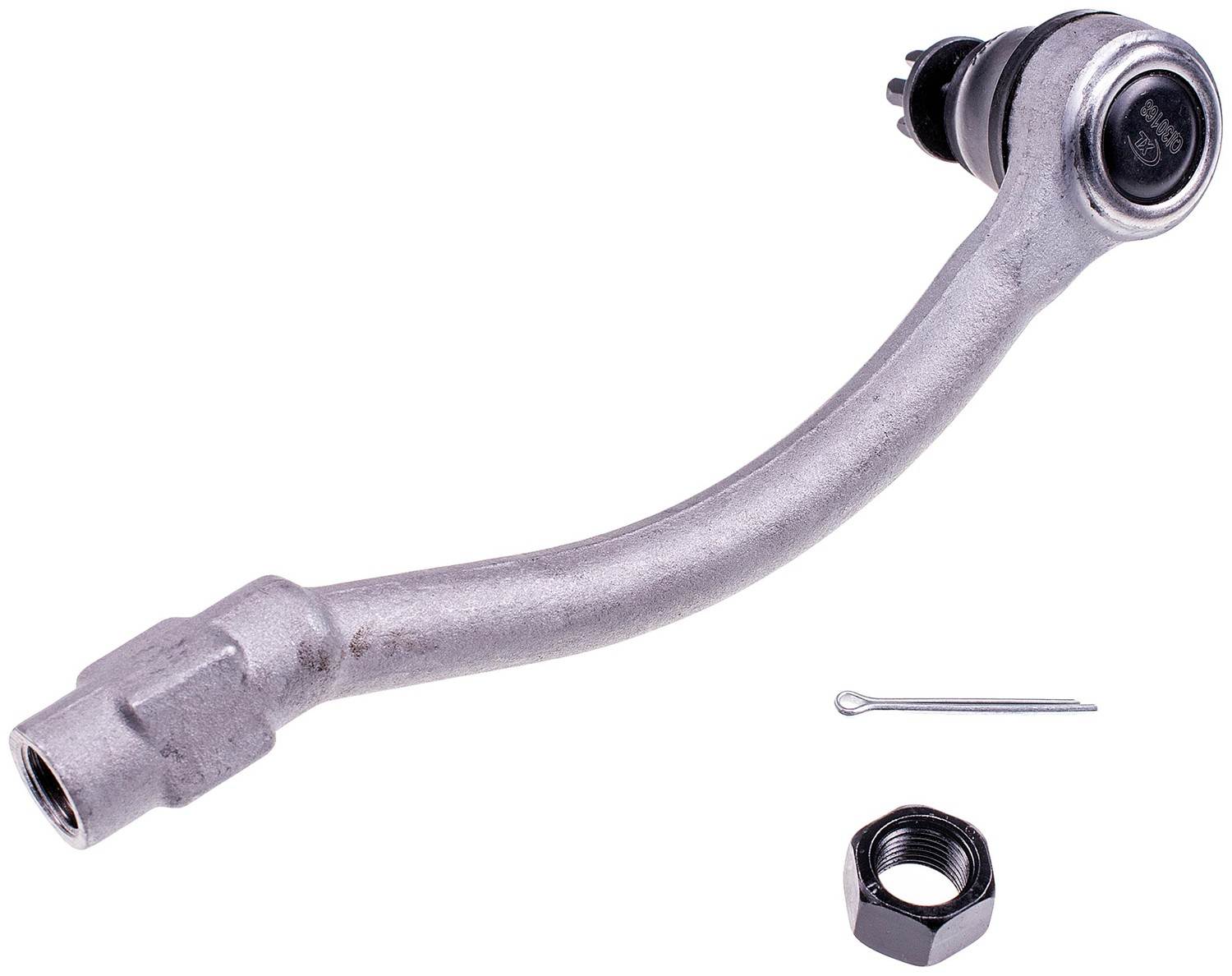

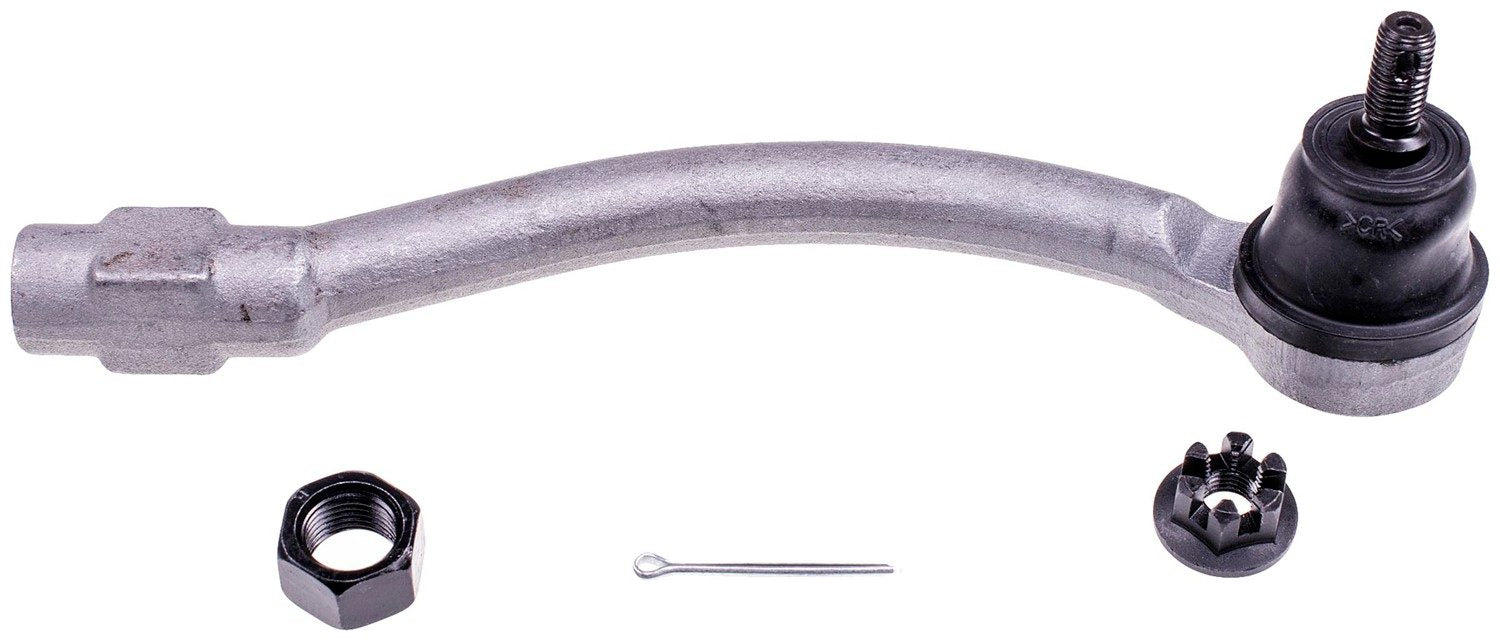

Dorman Tie Rod End - Outer

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Product Specifications

Color: Silver
End 1 Attachment Type: Threaded
End 1 Gender: Female
End 2 Attachment Type: Taper
End 2 Gender: Male
Finish: Coated
Grade Type: Premium
Grease Fitting Included: No
Length: 222 mm
Material: Steel
Mounting Hardware Included: Yes
Package Contents: Tie Rod, 1 Nut, Castle Nut, Cotter Pin
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM: Piece
Thread Pitch: 1.5, 1.25
Tie Rod End Thread Diameter: 16 mm, 10 mm

Application Summary: Hyundai 2017-11, Kia 2018-14

Vehicle Fitments:
