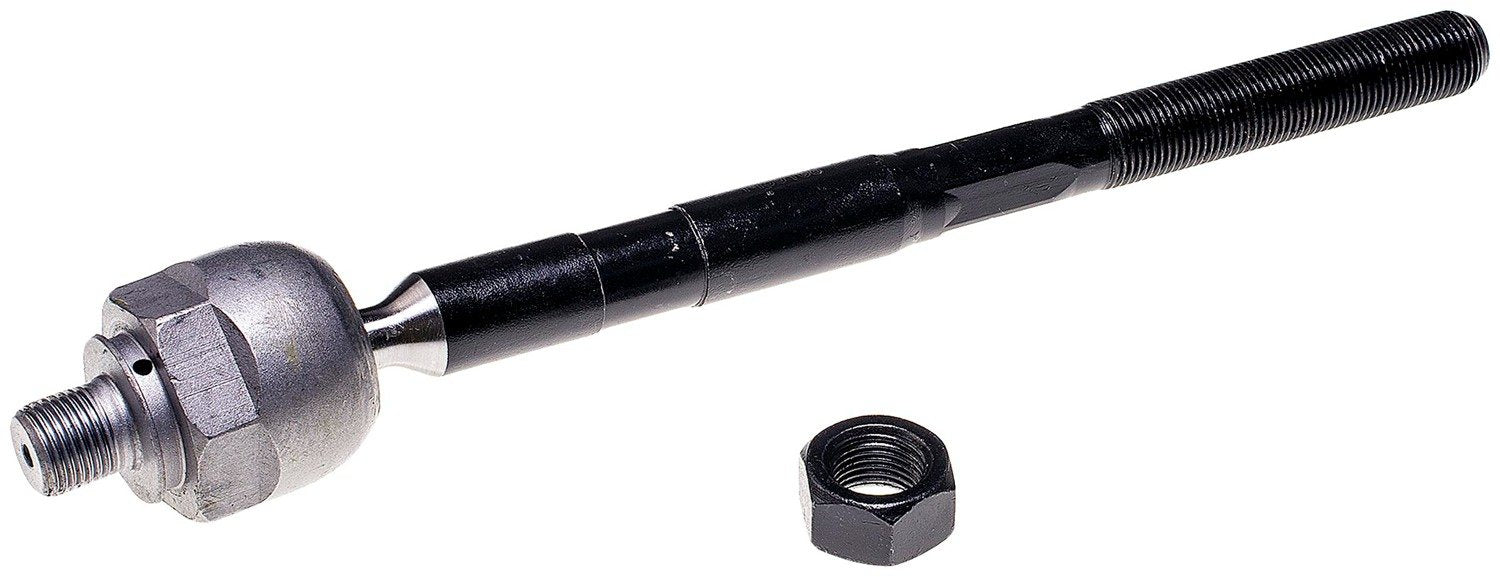

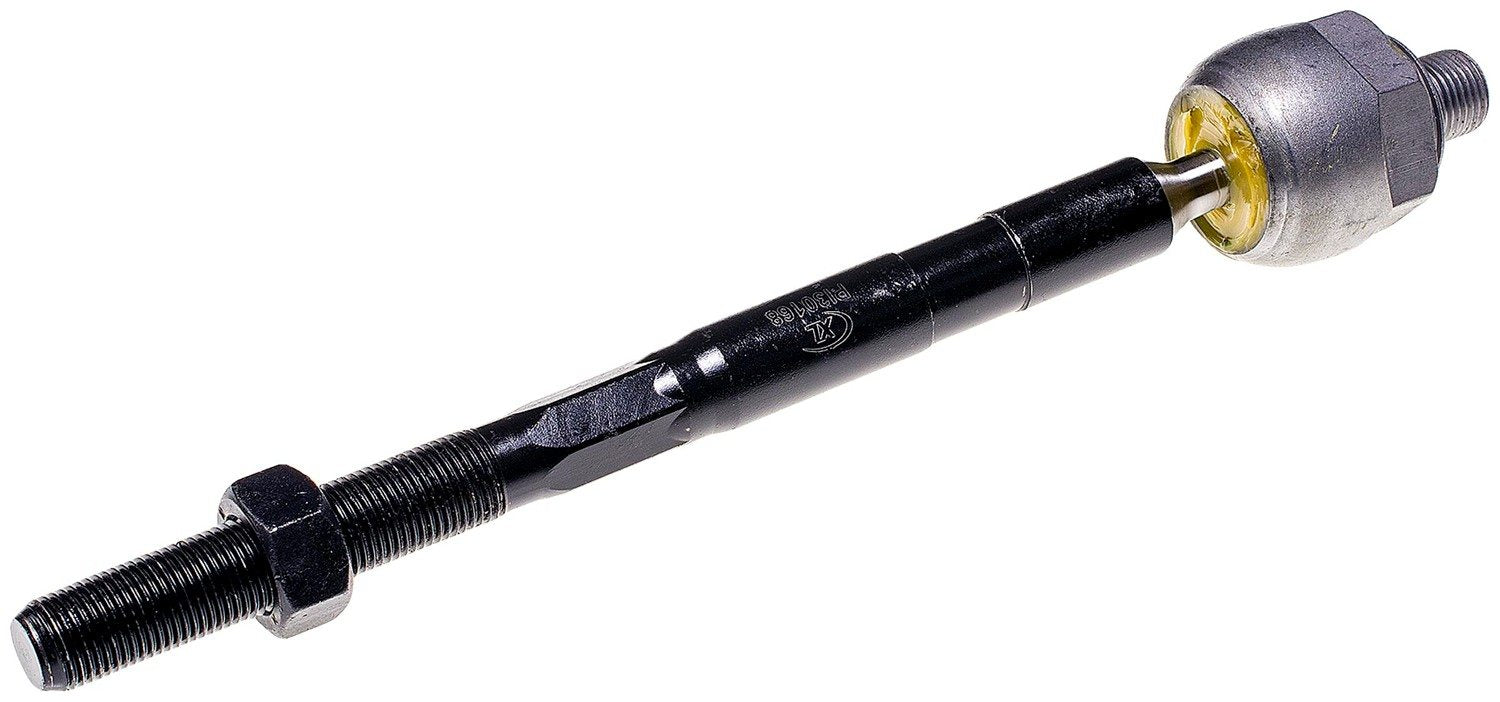

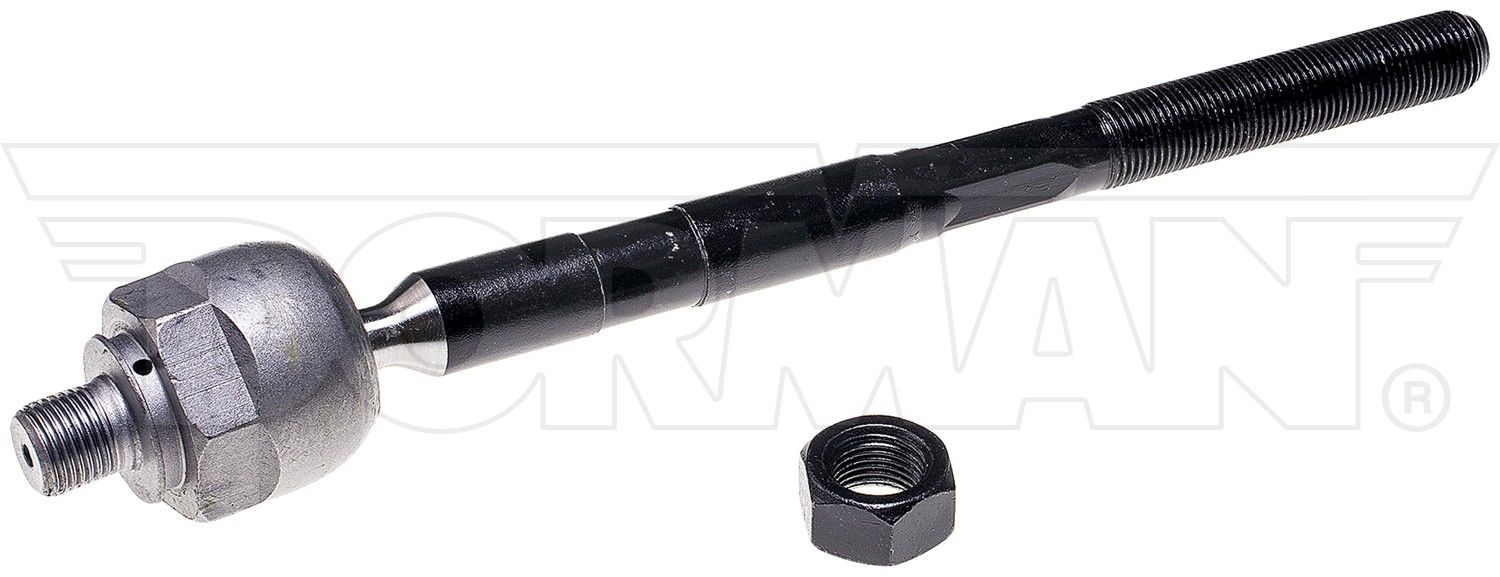

Dorman Tie Rod End - Inner
This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.
- Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Product Specifications
Color: Black
End 1 Attachment Type: Threaded
End 1 Gender: Male
End 2 Attachment Type: Threaded
End 2 Gender: Male
Finish: Coated
Grade Type: Premium
Grease Fitting Included: No
Length: 238 mm
Material: Steel
Mounting Hardware Included: Yes
Package Contents: Tie Rod, 1 Nut
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM: Piece
Thread Pitch: 1.5, 1.5
Tie Rod End Thread Diameter: 16 mm, 16 mm
Application Summary: Chevrolet Colorado 2012-06, GMC Canyon 2012-06, Isuzu i-350 2006, Isuzu i-370 2008-07
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 - 2008 | Chevrolet | Colorado | LS |
| 2006 - 2012 | Chevrolet | Colorado | LT, Base, WT |
| 2007 - 2012 | GMC | Canyon | Base |
| 2006 - 2008 | GMC | Canyon | SL |
| 2006 - 2012 | GMC | Canyon | WT, SLT, SLE |
| 2006 | Isuzu | i-350 | Base |
| 2007 - 2008 | Isuzu | i-370 | LS |
