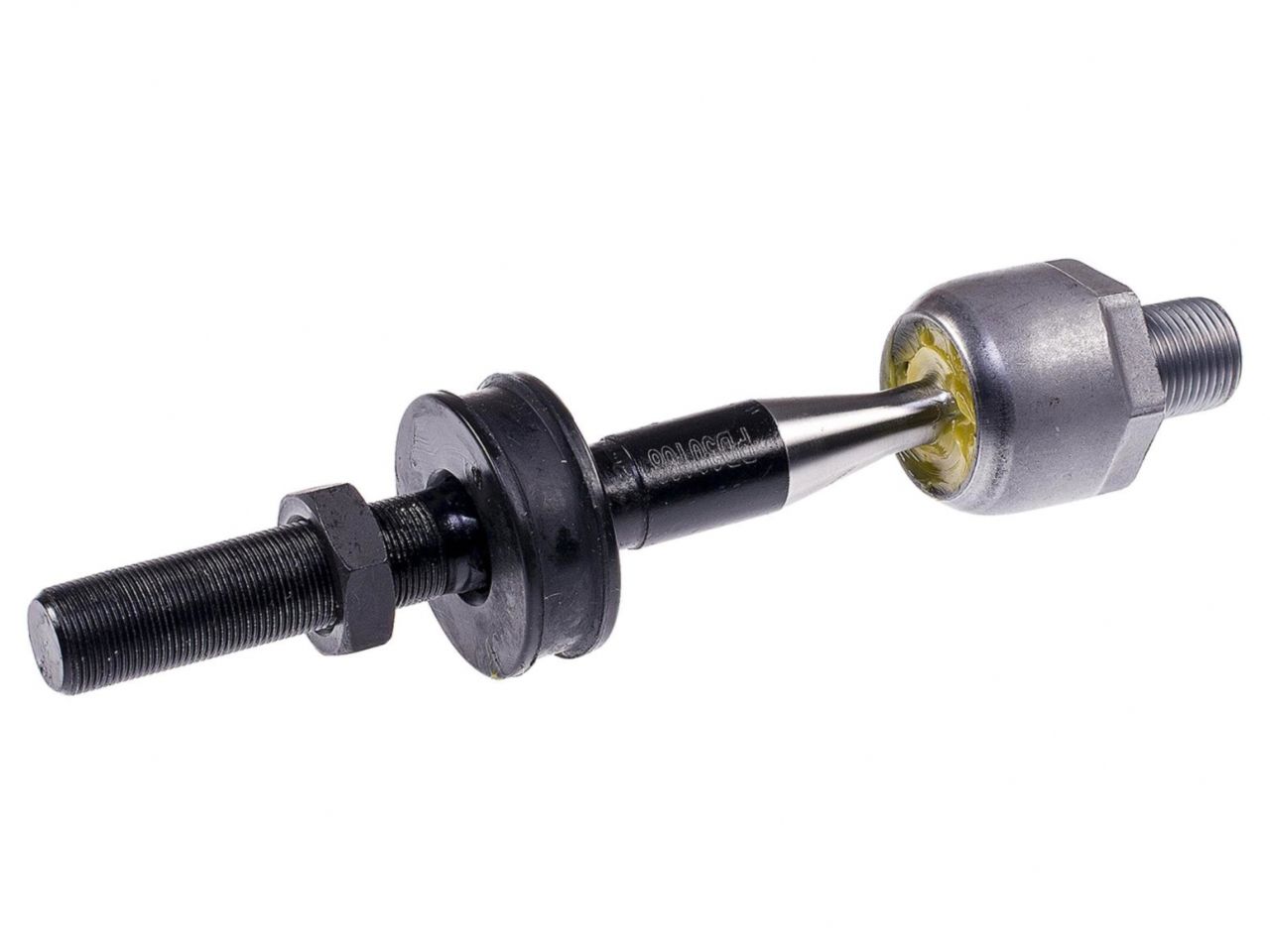

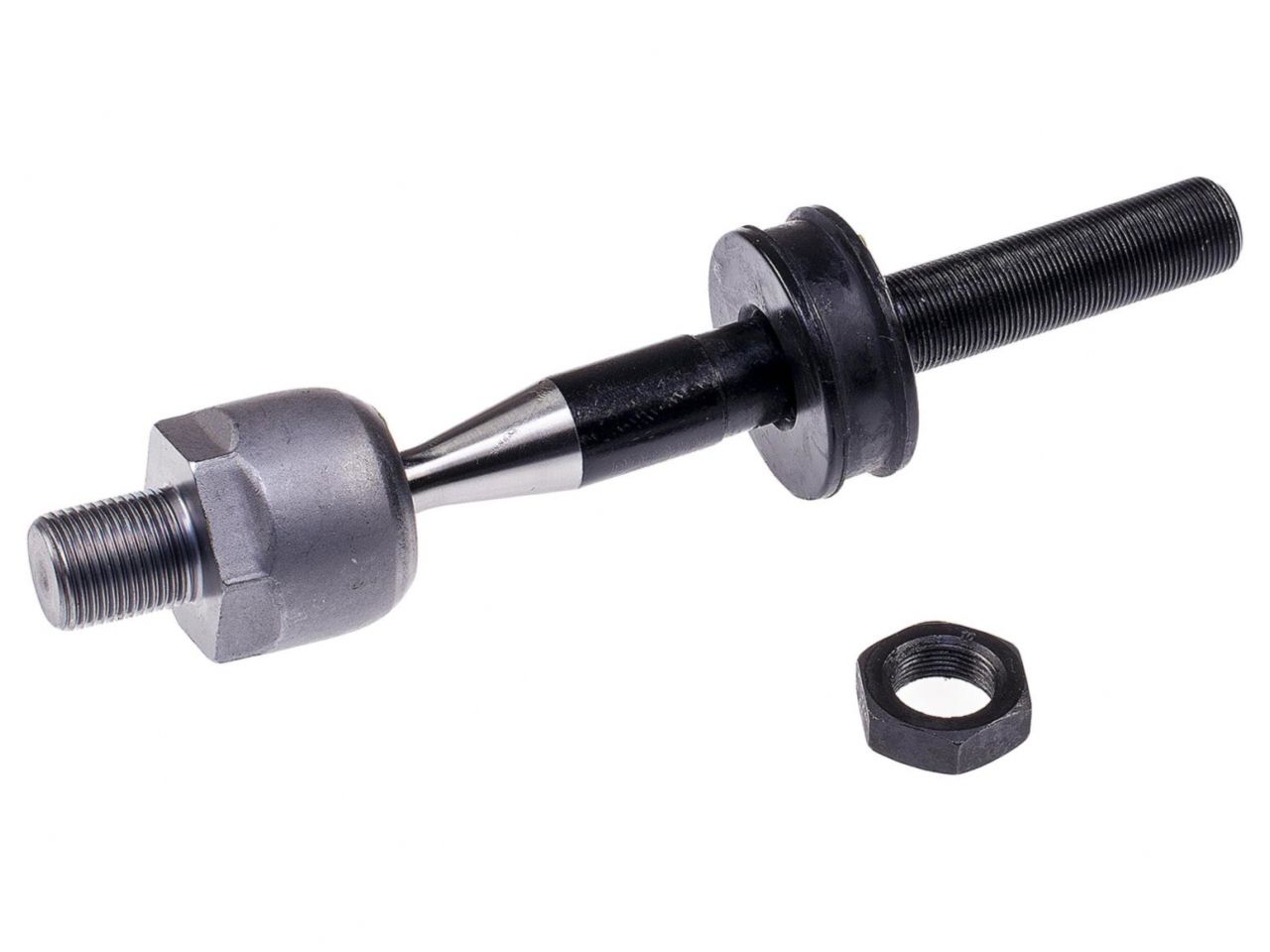

Dorman Tie Rod End - Inner

This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Product Specifications

Color: Black
End 1 Attachment Type: Threaded
End 1 Gender: Male
End 2 Attachment Type: Threaded
End 2 Gender: Male
Finish: Coated
Grade Type: Regular
Grease Fitting Included: No
Length: 195.1 mm
Material: Steel
Mounting Hardware Included: Yes
Package Contents: 1 Link; 1 Nut
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM: Piece
Thread Pitch: 1 mm; 1.5 mm
Tie Rod End Thread Diameter: 16 mm; 18 mm

Application Summary: BMW 525i 2003-01, BMW 528i 2000-97, BMW 530i 2003-01
