MOOG Chassis Products

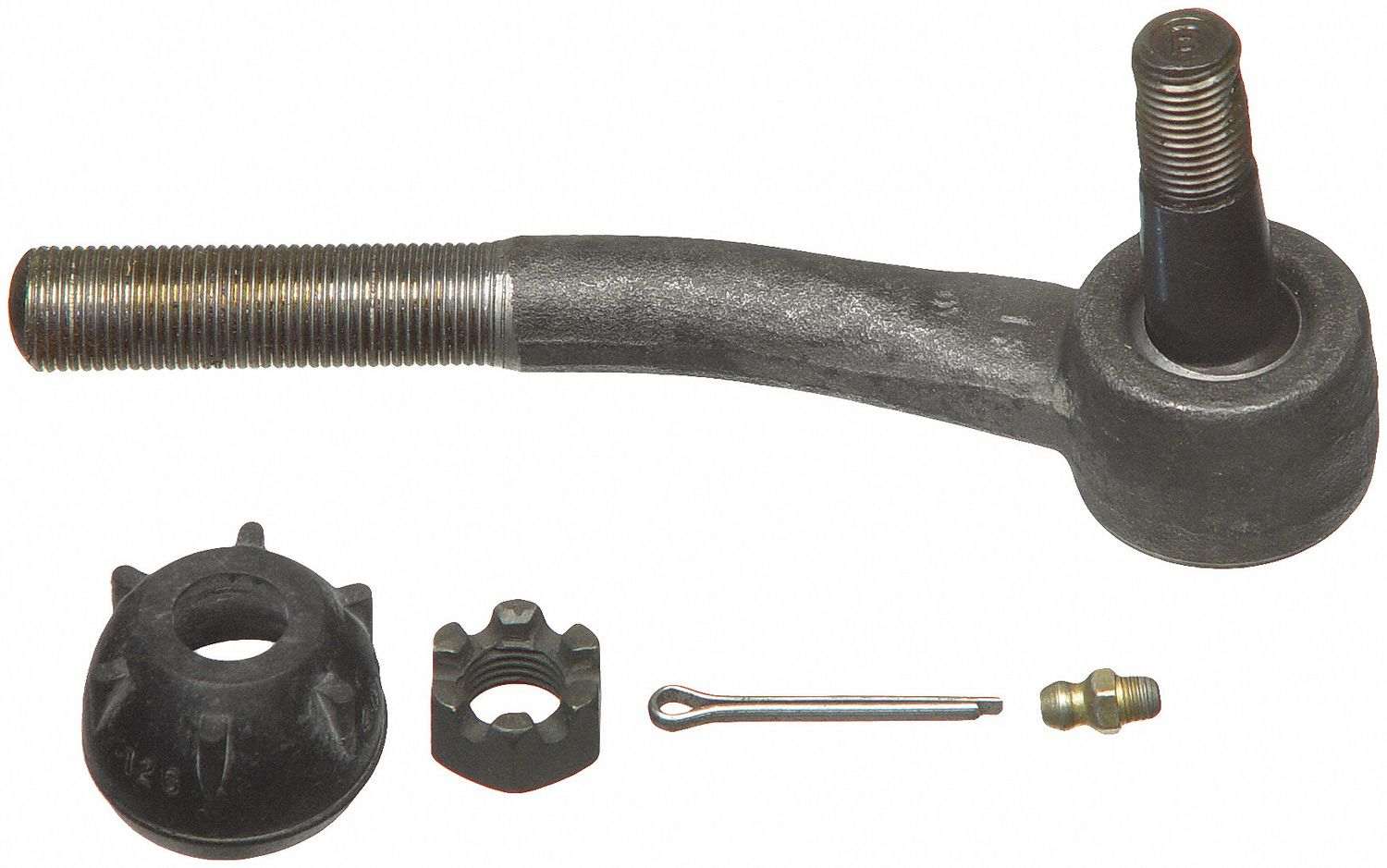

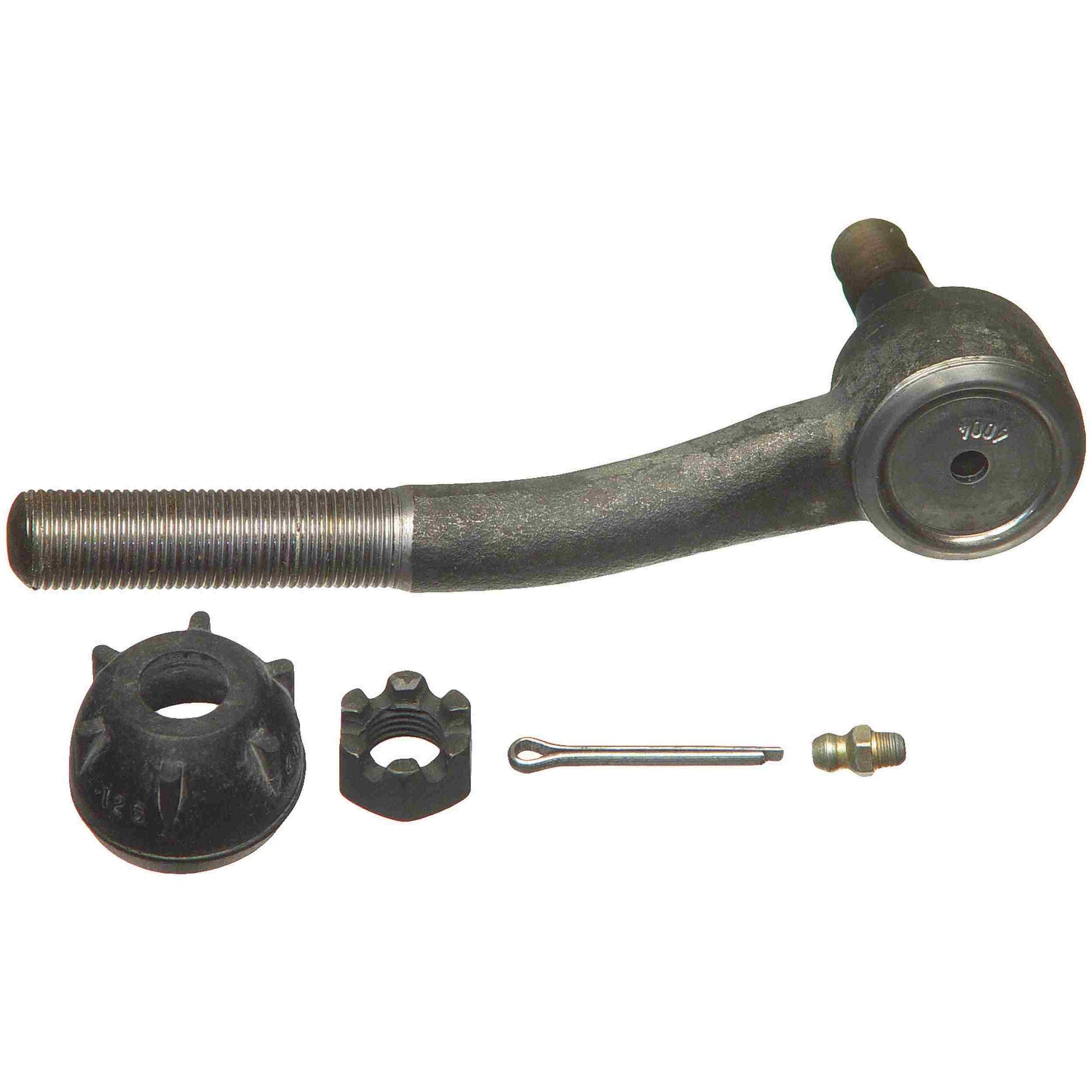

Moog Tie Rod End

Moog Tie Rod End

sku: 1P5N4 | mpn: ES2309
$23.26
$23.26 $23.26
Sale Sold out

Out of stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

SPECIFICATION:

  • Greasable: Yes
  • Stud Center to End (in): 5.950
  • Rod Thread: M17X1.5
  • Configuration: Bent
  • Rod Type (Male / Female): MALE
  • Stud Diameter Dimension (top in.): 0.577
  • Stud Diameter Dimension (bottom in.): 0.641
  • Stud Thread: M14 X 1.50
  • Rack End Thread: M14 X 1.50
  • Rack End Type (Male / Female): Male
  • Specification Image Reference: OUTERTIEROD.tif
  • Dust Boot Included: Yes
  • End 1 Thread Diameter (MM): 17.0
  • End 1 Thread Pitch (MM): 1.5
  • End 1 Thread Direction: Counterclockwise
  • End 2 Thread Diameter (MM): 14.0
  • End 2 Thread Pitch (MM): 1.5
