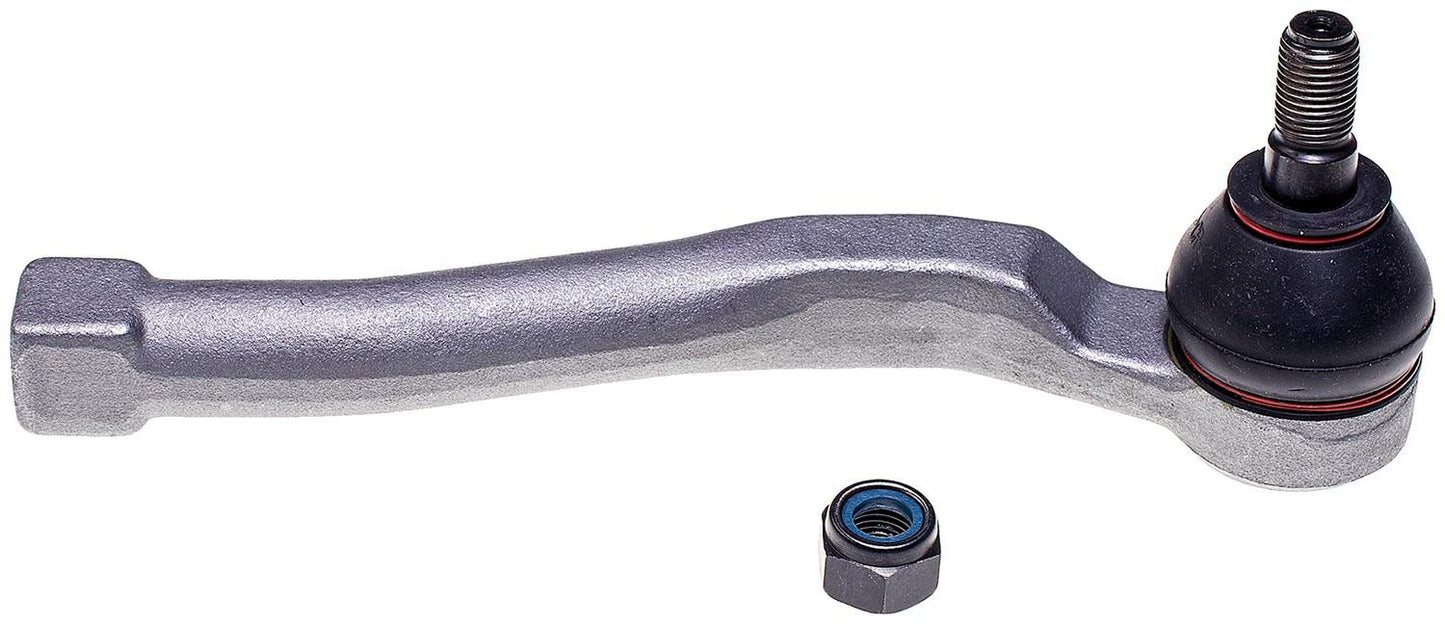

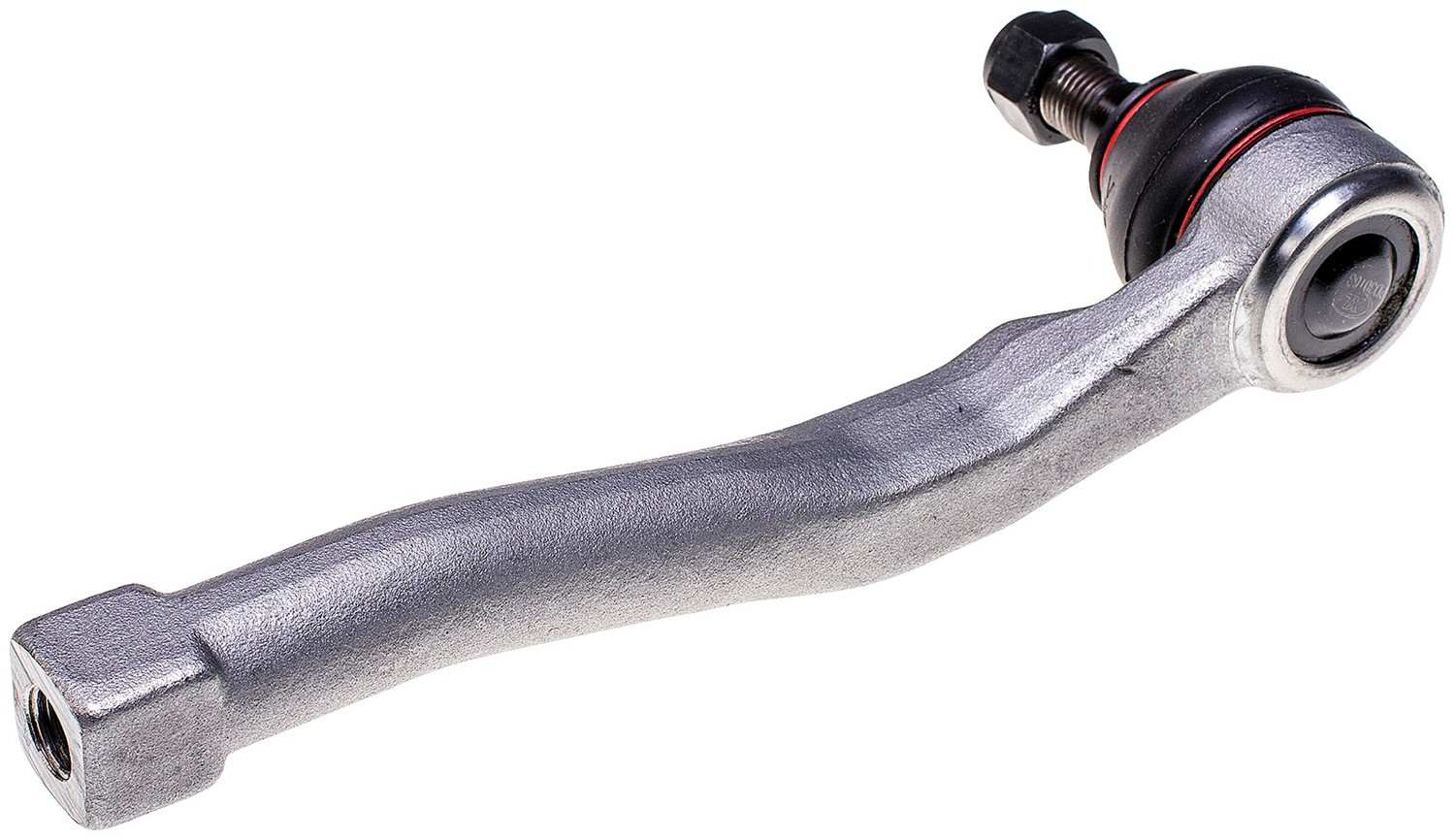

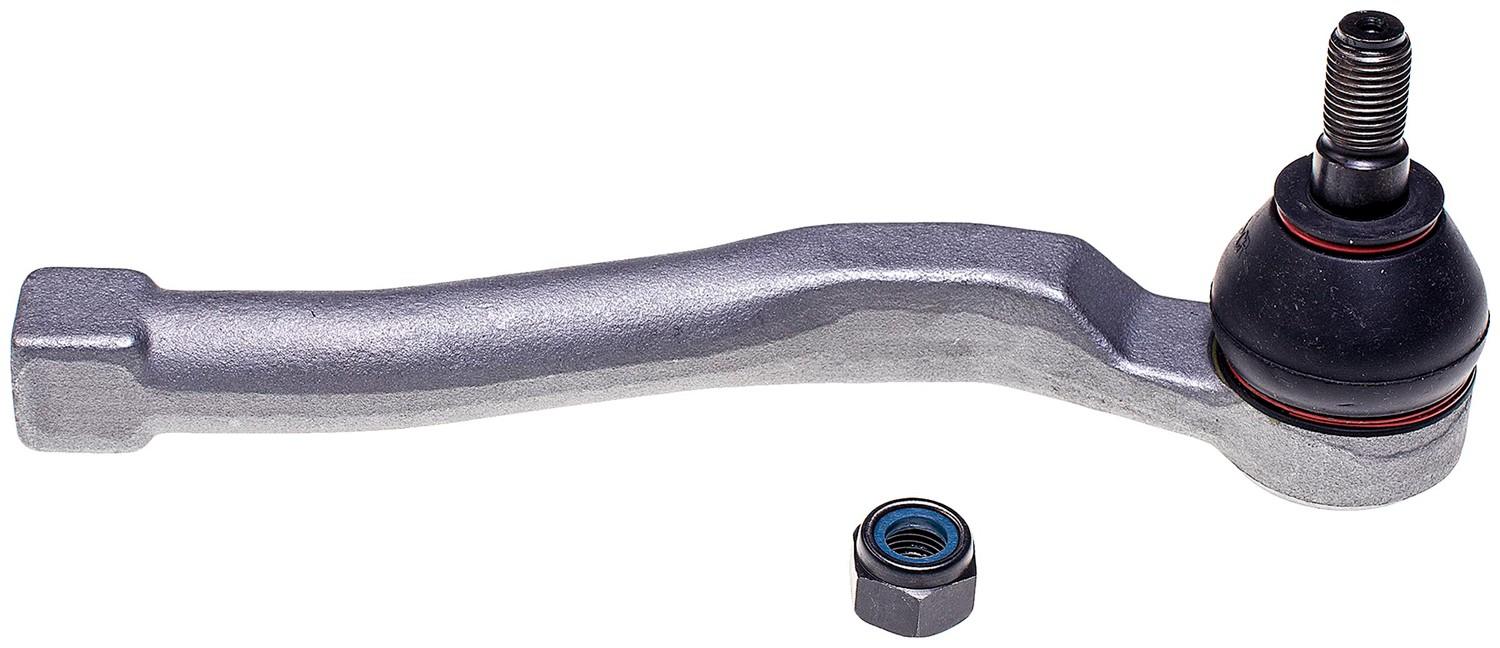

Dorman Tie Rod Center Stud
Tie Rod Center Stud
This extended life tie rod end is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.
" Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
" Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
" Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
" Premium corrosion resistance - WeatherShield external coating to resist corrosion
Application Summary: Chevrolet 2018-04, Pontiac 2010-05, Suzuki 2009-04
Specifications
Color: Silver
End 1 Attachment Type: Threaded
End 1 Gender: Female
End 2 Attachment Type: Taper
End 2 Gender: Male
Finish: Coated
Grade Type: Premium
Grease Fitting Included: No
Length: 190 mm
Material: Steel
Mounting Hardware Included: Yes
Package Contents: Tie Rod, 1 Nut
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM: Piece
Thread Pitch: 1.5, 1.25
Tie Rod End Thread Diameter: 12 mm; 12 mm
Brand: Dorman - Premium XL
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2004 - 2013 | Chevrolet | Aveo | Base |
2004 - 2018 | Chevrolet | Aveo | LS |
2005 - 2018 | Chevrolet | Aveo | LT |
2013 - 2018 | Chevrolet | Aveo | LTZ |
2005 - 2006 | Chevrolet | Aveo | Special Value |
2006 - 2011 | Chevrolet | Aveo5 | LT, LS |
2007 - 2008 | Chevrolet | Aveo5 | Special Value |
2007 - 2010 | Pontiac | G3 | Base |
2009 | Pontiac | G3 Wave | Base |
2005 - 2008 | Pontiac | Wave | Base |
2007 - 2008 | Pontiac | Wave | SE |
2005 - 2007 | Pontiac | Wave5 | Base |
2004 - 2010 | Suzuki | Swift+ | Base |
2004 - 2008 | Suzuki | Swift+ | S |
