TiALSport

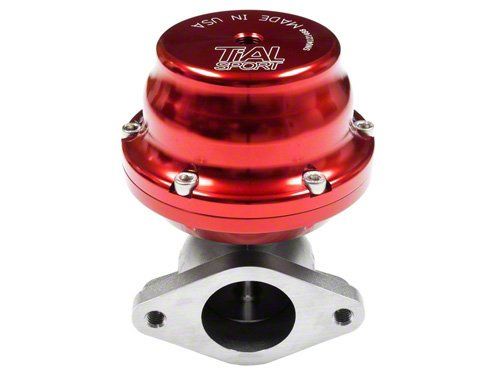

Tial 38mm External Wastegate Red

Tial 38mm External Wastegate Red

sku: 075Z8 | mpn: 721490-0002-WGT-005-RED
$292.60
$292.60 $292.60
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Tial 38mm External Wastegate has been proven to work reliably from medium to high power setups. The Tial 38mm wastegate bolt pattern is compatible with Turbonetics Deltagate style flanges.

  • 347 stainless steel alloy for valve and housing
  • High temperature silicone Nomex reinforced diaphram
  • Stainless steel actuator spring for consistent pressure/force
  • Nitronic stainless steel for valve seat and valve bushing
  • Includes higher level gates and hardware and fittings

Note:

  • This Wastegate comes standard with the 0.5 Bar Spring (~7 PSI). You can select an extra springs for additional boost.
  • You can combine a SMALL & LARGE spring to go beyond 1.0 BAR. For example, combine a 0.5 BAR (Small Green) with 1.0 BAR (Large Blue) spring, and you'll get 1.5 BAR combination.
  • Gaskets are included. Flanges are sold seperately.

*Picture above shows Silver color*
