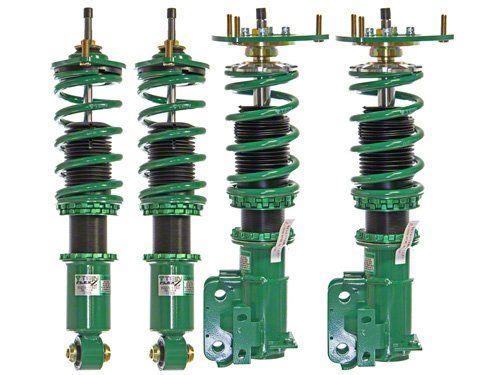

Tein Flex Z Coilover System 2005-2009 Subaru Legacy
Tein Flex Z Coilover System 2005-2009 Subaru Legacy
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyThe Tein Flex Z for the Legacy features a full-length ride height adjustment system, enables adjustment of ride height by adjusting the case length, without changing the damper stroke length and/or spring pre-load. By adjusting the case length to change ride height, the ride quality stays optimal. A big advantage when the vehicle is used for street driving.
This system not only makes it possible to maintain a good balance between the lowered appearance and ride comfort, but also provides 16 different damping adjustments for the driver to enjoy.
The Tein Flex Z contains the ever-popular 16-level damping force adjustment (compression/rebound together) feature with the use of a needle valve. By turning the adjustment knob, damping force (stiffness) is adjusted linearly step by step. A quick and easy way to change the ride and handling of the car to suit driver's needs and preferences.
The Tein Flex Z lowers the front of the vehicle by -45 mm and the rear of the vehicle -40 mm instantly and can be further adjusted to be lower or higher depending on the driver's preferences.
The Flex Z coilovers also feature a 6 (kgf/mm) spring in the front and a 7 (kgf/mm) spring in the rear for the ideal match of spring to shock damping characteristics.
Specifications:
- Spring Rate Front: 6 (kgf/mm)/ 336 (lbs/in)
- Sring Rate Rear: 7 (kgf/mm)/ 392 (lbs/in)
- Front Ride Heigh(mm): -45 (mm)
- Rear Ride Height(mm): -40 (mm)
- EDFC Motor Kit: EDK05-12140
Product Highlights
- Made in Yokohama Japan
- Twin-Tube System for Comfortable Ride on Streets
- Full-Length System for Ride Height Adjustment w/ Minimal Change in Ride Quality
- Damping Force Adjustable to Change Ride to Ideal Settings
- Compatible with EDFC Series to enable In-Car Damping Force Adjustment
- Upper Mounts Included for Easy Installation
- Highly Durable & Reliable
- Thoroughgoing Rust-Proofing
- Highly-Rigid Bracket & Shell Case
- Smooth Ride Height Adjustment & One-of-A-Kind Adjusting Wrench
- No-Sag Springs
- High-Spec Damper Oil
- Replacement Service to Bring Used Shock Absorbers Back to Life
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008 | Subaru | Legacy | 2.0, 3.0, Touring |
| 2007 - 2009 | Subaru | Legacy | 2.5i Special Edition |
| 2009 | Subaru | Legacy | 2.5i Touring, 3.0 R Premier, 3.0 R, Base, 2.0R |
| 2008 - 2009 | Subaru | Legacy | 3.0 R Limited |
| 2005 - 2009 | Subaru | Legacy | GT Limited |
| 2006 - 2009 | Subaru | Legacy | GT spec.B, 2.5i Limited, 2.5i |
| 2005 - 2008 | Subaru | Legacy | GT, Limited |
| 2005 | Subaru | Legacy | i |
