Tein Flex Z Coilover System 2000-2003 Honda S2000, 2004-2009 Honda S2000

SKU: 0N7Y5 | MPN:  VSH64-C1SS3
Sale price$1,070.88 USD Regular price$1,110.00 USD
Sold out

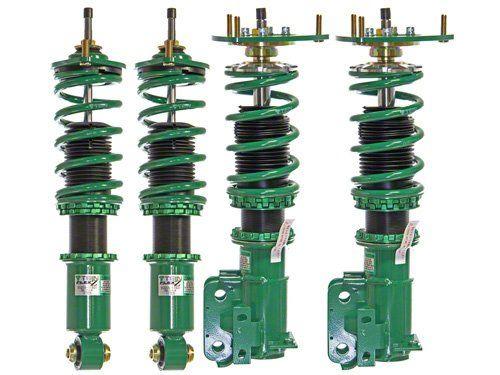

Flex Z Coilover System 2000-2003 Honda S2000, 2004-2009 Honda S2000

The Tein Flex Z for the S2000 features a full-length ride height adjustment system, enables adjustment of ride height by adjusting the case length, without changing the damper stroke length and/or spring pre-load. By adjusting the case length to change ride height, the ride quality stays optimal. A big advantage when the vehicle is used for street driving.

This system not only makes it possible to maintain a good balance between the lowered appearance and ride comfort, but also provides 16 different damping adjustments for the driver to enjoy.

The Tein Flex Z contains the ever-popular 16-level damping force adjustment (compression/rebound together) feature with the use of a needle valve. By turning the adjustment knob, damping force (stiffness) is adjusted linearly step by step. A quick and easy way to change the ride and handling of the car to suit driver's needs and preferences.

The Tein Flex Z lowers the front of the vehicle by -25 mm and the rear of the vehicle -35 mm instantly and can be further adjusted to be lower or higher depending on the driver's preferences.

The Flex Z coilovers also feature a 10 (kgf/mm) spring in the front and a 10 (kgf/mm) spring in the rear for the ideal match of spring to shock damping characteristics.

Specifications:

  • Spring Rate Front: 10 (kgf/mm)/ 560 (lbs/in)
  • Sring Rate Rear: 10 (kgf/mm)/ 560 (lbs/in)
  • Front Ride Heigh(mm): -25 (mm)
  • Rear Ride Height(mm): -35 (mm)
  • EDFC Motor Kit: EDK05-12120

Product Highlights

  • Made in Yokohama Japan
  • Twin-Tube System for Comfortable Ride on Streets
  • Full-Length System for Ride Height Adjustment w/ Minimal Change in Ride Quality
  • Damping Force Adjustable to Change Ride to Ideal Settings
  • Compatible with EDFC Series to enable In-Car Damping Force Adjustment
  • Upper Mounts Included for Easy Installation
  • Highly Durable & Reliable
  • Thoroughgoing Rust-Proofing
  • Highly-Rigid Bracket & Shell Case
  • Smooth Ride Height Adjustment & One-of-A-Kind Adjusting Wrench
  • No-Sag Springs
  • High-Spec Damper Oil
  • Replacement Service to Bring Used Shock Absorbers Back to Life


Vehicle Fitments:

Year Make Model Submodel
2000 - 2009 Honda S2000 Base
2008 - 2009 Honda S2000 CR
