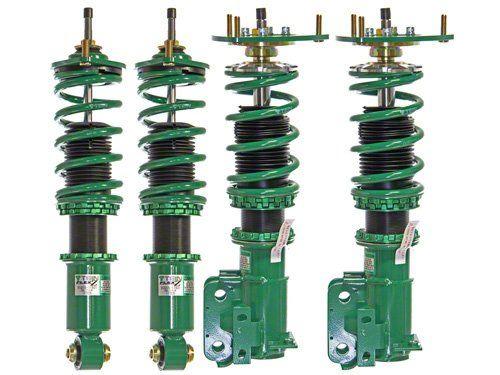

Tein Flex Z Coilover System 2008-2015 Mitsubishi Lancer Evolution X
Tein Flex Z Coilover System 2008-2015 Mitsubishi Lancer Evolution X
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
The Tein Flex Z for the Lancer Evolution X features a full-length ride height adjustment system, enables adjustment of ride height by adjusting the case length, without changing the damper stroke length and/or spring pre-load. By adjusting the case length to change ride height, the ride quality stays optimal. A big advantage when the vehicle is used for street driving.
This system not only makes it possible to maintain a good balance between the lowered appearance and ride comfort, but also provides 16 different damping adjustments for the driver to enjoy.
The Tein Flex Z contains the ever-popular 16-level damping force adjustment (compression/rebound together) feature with the use of a needle valve. By turning the adjustment knob, damping force (stiffness) is adjusted linearly step by step. A quick and easy way to change the ride and handling of the car to suit driver's needs and preferences.
The Tein Flex Z lowers the front of the vehicle by -55 mm and the rear of the vehicle -40 mm instantly and can be further adjusted to be lower or higher depending on the driver's preferences.
The Flex Z coilovers also feature a 9 (kgf/mm) spring in the front and a 8 (kgf/mm) spring in the rear for the ideal match of spring to shock damping characteristics.
Specifications:
- Spring Rate Front: 9 (kgf/mm)/ 504 (lbs/in)
- Sring Rate Rear: 8 (kgf/mm)/ 448 (lbs/in)
- Front Ride Heigh(mm): -55 (mm)
- Rear Ride Height(mm): -40 (mm)
- EDFC Motor Kit: EDK05-12140
Product Highlights
- Made in Yokohama Japan
- Twin-Tube System for Comfortable Ride on Streets
- Full-Length System for Ride Height Adjustment w/ Minimal Change in Ride Quality
- Damping Force Adjustable to Change Ride to Ideal Settings
- Compatible with EDFC Series to enable In-Car Damping Force Adjustment
- Upper Mounts Included for Easy Installation
- Highly Durable & Reliable
- Thoroughgoing Rust-Proofing
- Highly-Rigid Bracket & Shell Case
- Smooth Ride Height Adjustment & One-of-A-Kind Adjusting Wrench
- No-Sag Springs
- High-Spec Damper Oil
- Replacement Service to Bring Used Shock Absorbers Back to Life
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 - 2014 | Mitsubishi | Lancer | ES Sportback |
| 2008 - 2015 | Mitsubishi | Lancer | ES, GTS, Evolution MR, Evolution GSR, DE |
| 2015 | Mitsubishi | Lancer | Evolution Final Edition, SE Limited Edition Sportback, SE Limited Edition |
| 2010 - 2011 | Mitsubishi | Lancer | Evolution MR Touring, GTS Sportback, Ralliart Sportback |
| 2010 | Mitsubishi | Lancer | Evolution SE |
| 2011 - 2015 | Mitsubishi | Lancer | GT, SE Sportback, GT Sportback |
| 2014 | Mitsubishi | Lancer | Limited Edition, Evolution |
| 2010 - 2015 | Mitsubishi | Lancer | SE, Ralliart |
