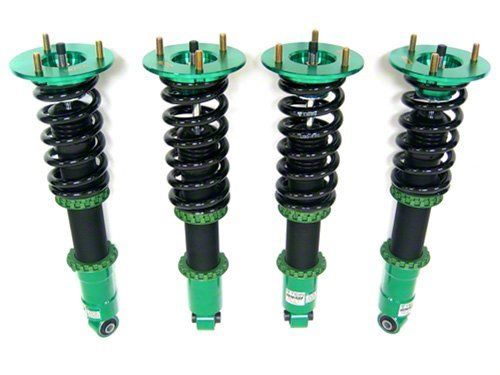

Tein Super Drift Coilover Kit Nissan 180SX RPS13 2000 FR Type I, Type II, Type III, Type G, Type R, Type X, Type S 1991-1999TEIN's support of competition D1 drivers and vehicles has led to the development of Super Drift dampers. Which were specifically developed for the avid drifter. Spring rates and damping force characteristics were chosen to increase car control in a drift, and to aid in initiating a slide. Full length and 16 level damping force adjustment allow suspension tuning for drivers at all skill levels. Pillowball upper mounts with front camber adjustment plates are included*. EDFC compatible for quick and hassle free dampening force changes. Super Drift is the suspension of choice for all levels of drifters.
- Steel Construction
- Special damping force curves to improve drift control
- Twin Tube internal construction
- Ride height adjustable via threaded body and springs seats
- 16 way adjustable dampners, compression and rebound combined
- Pillow ball upper mounts for increased steering feel
- Upper camber adjustment on front for strut type of vehicles
- Larger piston diameter for strut type front and rear (22mm)
- EDFC compatible
- Powder coated brackets with teflon coated shock body for heavy duty rust prevention
- 1 year manufactures defect warranty
| SPECS: |
| Front: |
Rear: |
-
Damping Force Adjustment: Y
-
Full Length Ride Height Adjustable: Y
-
Upper Mount: CAMBER ADJ. P/U
-
Base Ride Height (mm): -40
-
Max Low (mm): -91
-
Max Low (inch): -3.6
-
Max Height (mm): 17
-
Max Height (inch): 0.7
-
Recommended Low (mm): -50
-
Recommended Low (inch): -2
-
Recommended Height (mm): -30
-
Recommended Height (inch): -1.2
-
Rate (kgf/mm): 10
-
Rate (lbs/in): 560
-
SP PART#: SQ100-01175
-
Free Length (mm): 175
-
I.D.(mm): ID65
|
-
Damping Force Adjustment: Y
-
Full Length Ride Height Adjustable: Y
-
Uppermount: P/U
-
Base Ride Height (mm): -20
-
Max Low (mm): -111
-
Max Low (inch): -4.4
-
Max Height (mm): 30
-
Max Height (inch): 1.2
-
Recommended Low (mm): -30
-
Recommended Low (inch): -1.2
-
Recommended Height (mm): -10
-
Recommended Height (inch): -0.4
-
Rate (kgf/mm): 8
-
Rate (lbs/in): 448
-
SP PART#: SV080-01225
-
Free Length (mm): 225
-
I.D.(mm): ID65
|
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1997 - 1998 |
Nissan |
180SX |
Type-G |
| 1989 - 1995 |
Nissan |
180SX |
Type-I, Type-II |
| 1992 - 1994 |
Nissan |
180SX |
Type-III |
| 1994 - 1998 |
Nissan |
180SX |
Type-R, Type-X |
| 1996 - 1998 |
Nissan |
180SX |
Type-S |
| 1989 - 1993 |
Nissan |
240SX |
Base |
| 1991 - 1992 |
Nissan |
240SX |
LE |
| 1989 - 1994 |
Nissan |
240SX |
SE |
| 1989 - 1990 |
Nissan |
240SX |
XE |
| 1989 - 1991 |
Nissan |
Silvia |
Convertible |
| 1989 - 1994 |
Nissan |
Silvia |
Q's, J's, K's |
