Tein Lexus 06-12 GS430 / 07-11 GS350 / 06 GS300 Mono Sport Damper Coil

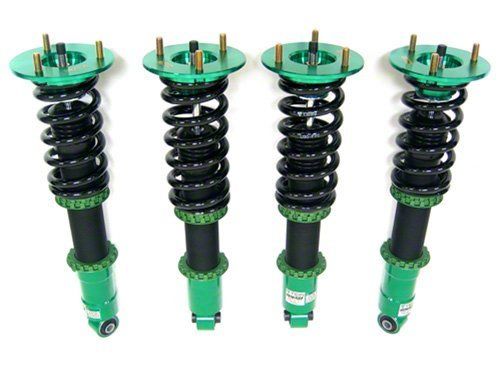

Tein Mono Sport Coilover Kit Lexus GS300 GRS190L 3000 FR 2006



The main concept of MONO SPORT is to provide driving pleasures to all drivers. All the different needs and demands are carefully analyzed to come up with the most suitable settings for each and every vehicle models. For cars often running on circuit, the settings are focused more on sport driving. MONO SPORT offers not only the precise steering feel that strongly appeals to sport-minded drivers, but also the flexible movement. MONO SPORT is set up to let the drivers enjoy the runs on circuits and/or winding roads and everyday driving on streets with the damping force adjusted. For cars requiring comfortable ride more than anything, touring settings are applied to provide and maintain the finest ride comfort which are often lost when the vehicle is lowered and/or larger tires/wheels are used. MONO SPORT offers the finest and most comfortable ride feel that makes even a long-distance driving seem like a breeze.

SPECS:
Front:	Rear:
Damping Force Adjustment: Y Full Length Ride Height Adjustable: Y Upper Mount: R/U Base Ride Height (mm): -45 Max Low (mm): -96 Max Low (inch): -3.8 Max Height (mm): 24 Max Height (inch): 0.9 Recommended Low (mm): -55 Recommended Low (inch): -2.2 Recommended Height (mm): -35 Recommended Height (inch): -1.4 Rate (kgf/mm): 10 Rate (lbs/in): 560 SP PART#: SB100-01200 Free Length (mm): 200 I.D.(mm): ID70	Damping Force Adjustment: Y Full Length Ride Height Adjustable: Y Uppermount: R/U Base Ride Height (mm): -30 Max Low (mm): -139 Max Low (inch): -5.5 Max Height (mm): 18 Max Height (inch): 0.7 Recommended Low (mm): -40 Recommended Low (inch): -1.6 Recommended Height (mm): -20 Recommended Height (inch): -0.8 Rate (kgf/mm): 8 Rate (lbs/in): 448 SP PART#: SV080-01225 Free Length (mm): 225 I.D.(mm): ID65

Vehicle Fitments:

Year	Make	Model	Submodel
2006	Lexus	GS300	Base
2007 - 2011	Lexus	GS350	Base
2005 - 2007	Lexus	GS430	Base
2007 - 2011	Lexus	GS450h	Base
