Tein 94-01 Integra (DC2)/92-95 Civic (EG1/EH2/EH3/DC2) 3Dr/4Dr Rr Fork

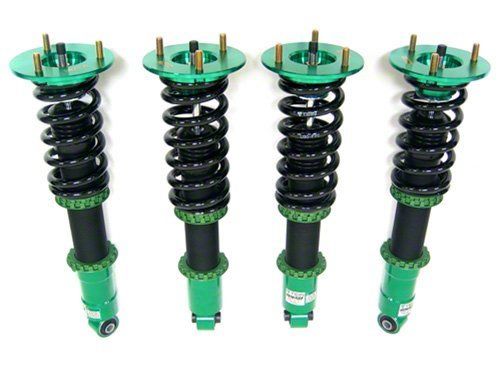

Tein Mono Sport Coilover Kit Acura Integra DC2 1800 FF 1994-2001



The main concept of MONO SPORT is to provide driving pleasures to all drivers. All the different needs and demands are carefully analyzed to come up with the most suitable settings for each and every vehicle models. For cars often running on circuit, the settings are focused more on sport driving. MONO SPORT offers not only the precise steering feel that strongly appeals to sport-minded drivers, but also the flexible movement. MONO SPORT is set up to let the drivers enjoy the runs on circuits and/or winding roads and everyday driving on streets with the damping force adjusted. For cars requiring comfortable ride more than anything, touring settings are applied to provide and maintain the finest ride comfort which are often lost when the vehicle is lowered and/or larger tires/wheels are used. MONO SPORT offers the finest and most comfortable ride feel that makes even a long-distance driving seem like a breeze.

SPECS:
Front:	Rear:
Damping Force Adjustment: Y Full Length Ride Height Adjustable: Y Upper Mount: P/U Base Ride Height (mm): -75 Max Low (mm): -134 Max Low (inch): -5.3 Max Height (mm): -30 Max Height (inch): -1.2 Recommended Low (mm): -85 Recommended Low (inch): -3.3 Recommended Height (mm): -65 Recommended Height (inch): -2.6 Rate (kgf/mm): 16 Rate (lbs/in): 896 SP PART#: SA160-01150 Free Length (mm): 150 I.D.(mm): ID70	Damping Force Adjustment: Y Full Length Ride Height Adjustable: Y Uppermount: P/U Base Ride Height (mm): -55 Max Low (mm): -118 Max Low (inch): -4.6 Max Height (mm): 19 Max Height (inch): 0.7 Recommended Low (mm): -65 Recommended Low (inch): -2.6 Recommended Height (mm): -45 Recommended Height (inch): -1.8 Rate (kgf/mm): 9 Rate (lbs/in): 504 SP PART#: SA090-01150 Free Length (mm): 150 I.D.(mm): ID70

Vehicle Fitments:

Year	Make	Model	Submodel
1994 - 2001	Acura	Integra	GS-R, LS
1994 - 1998	Acura	Integra	RS
1995 - 1996	Acura	Integra	Special Edition
1997 - 2001	Acura	Integra	Type R, GS
1992 - 1995	Honda	Civic	EX, CX, DX, VX, LX, Si
1993 - 1997	Honda	Civic del Sol	Si, S
1994 - 1997	Honda	Civic del Sol	VTEC
