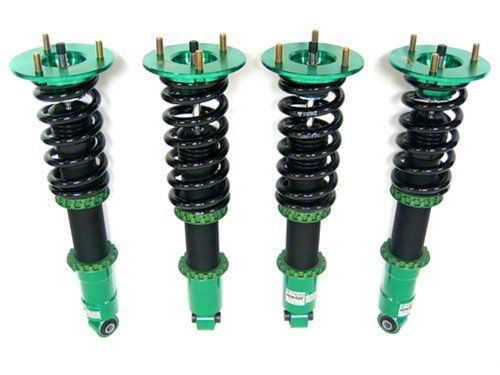

Tein Coilover Kits DSH64-81LS1 Item Image
Tein

Tein Super Racing Coilover Kit Honda S2000 AP1 1999-2005

SKU: 003RL | MPN:  DSH64-81LS1
Usually Ships in 10-14 Days
Sale price$3,159.50 USD
Tein Super Racing Coilover Kit Honda S2000 AP1 2000 FR Base Model, Type V 1999-2005



Developed from actual competition, TEIN was able to create a fully adjustable damper that can be easily tuned for any track and weather conditions. Super Racing Dampers utilize a full-length adjustment system to allow shock length and spring pre-load to be adjusted independently. Separate 16 - way adjustments for compression and rebound damping enable the user to fine tune for any situation. TEIN has incorporated both camber and caster adjustment into the front pillow ball upper mounts for strut type vehicles. External reservoirs on SA type dampers allow for added oil capacity. Spring rates and shock valving were derived from many years of motorsports support, to provide the ultimate damper for competition. Designed and tested for circuit use by advanced and professional drivers who are seeking complete damper tuning capability.

Features:
  • Steel Construction
  • Mono Tube internal construction
  • Inverted design for strut type front and rear
  • Ride Height adjustable via threaded body and spring seats
  • 16 × 16 way adjustable dampers, compression and rebound separately adjustable
  • Pillow ball upper mounts for increased steering feel
  • Upper and lower camber adjustment on front for strut type vehicles
  • Caster adjustment on front for strut type vehicles
  • Dual EDFC (Electronic Damping Force Controller) compatible
  • Powder coated brackets with Teflon coated shock body for heavy duty rust prevention

SPECS:
Front: Rear:
  • Damping Force Adjustment: Y
  • Full Length Ride Height Adjustable: Y
  • Upper Mount: P/U
  • Base Ride Height (mm): -40
  • Max Low (mm): -60
  • Max Low (inch): -2.4
  • Max Height (mm): -22
  • Max Height (inch): -0.9
  • Recommended Low (mm): -50
  • Recommended Low (inch): -2
  • Recommended Height (mm): -30
  • Recommended Height (inch): -1.2
  • Rate (kgf/mm): 18
  • Rate (lbs/in): 1008
  • SP PART#: RS180-A1150
  • Free Length (mm): 150
  • I.D.(mm): ID58
  • Damping Force Adjustment: Y
  • Full Length Ride Height Adjustable: Y
  • Uppermount: P/U
  • Base Ride Height (mm): -50
  • Max Low (mm): -68
  • Max Low (inch): -2.7
  • Max Height (mm): -34
  • Max Height (inch): -1.3
  • Recommended Low (mm): -60
  • Recommended Low (inch): -2.4
  • Recommended Height (mm): -40
  • Recommended Height (inch): -1.6
  • Rate (kgf/mm): 18
  • Rate (lbs/in): 1008
  • SP PART#: RS180-A1125
  • Free Length (mm): 125
  • I.D.(mm): ID58


Vehicle Fitments:

Year Make Model Submodel
2000 - 2009 Honda S2000 Base
2008 - 2009 Honda S2000 CR
2013 Nissan Altima Advance, SV, Sense, Exclusive
2008 - 2009 Nissan Altima Coupe
2007 - 2011 Nissan Altima Hybrid
2007 - 2013 Nissan Altima S, Base, SL
2007 - 2009 Nissan Altima SE
2010 - 2012 Nissan Altima SR
