PART NUMBER
|
SPRING RATE | LENGTH | STROKE | FCH | CW | |||||
| kgf/mm | lbs/inch | mm | Inch | mm | Inch | mm | Inch | mm | lbs | |

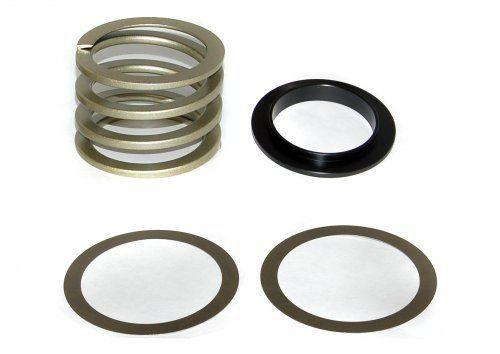

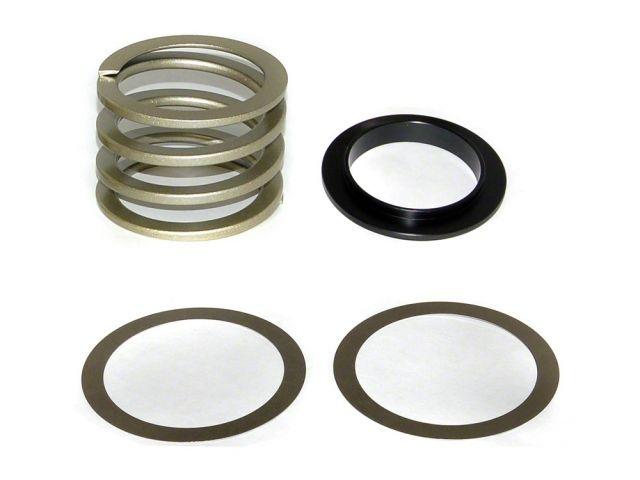

| 65MM (2.55") | comes with stack spring adapter | |||||||||
| H65-135-0008 | 0.08 | 4 | 135 | 5.3 | 118 | 4.6 | 17 | 0.7 | 10 | 22 |
| H65-070-008 | 0.8 | 45 | 70 | 2.8 | 46 | 1.8 | 24 | 0.9 | 43 | 95 |
| H65-060-015 | 1.5 | 84 | 60 | 2.4 | 39 | 1.5 | 21 | 0.8 | 70 | 154 |
| H65-060-030 | 3.0 | 168 | 60 | 2.4 | 36 | 1.4 | 24 | 0.9 | 120 | 265 |
