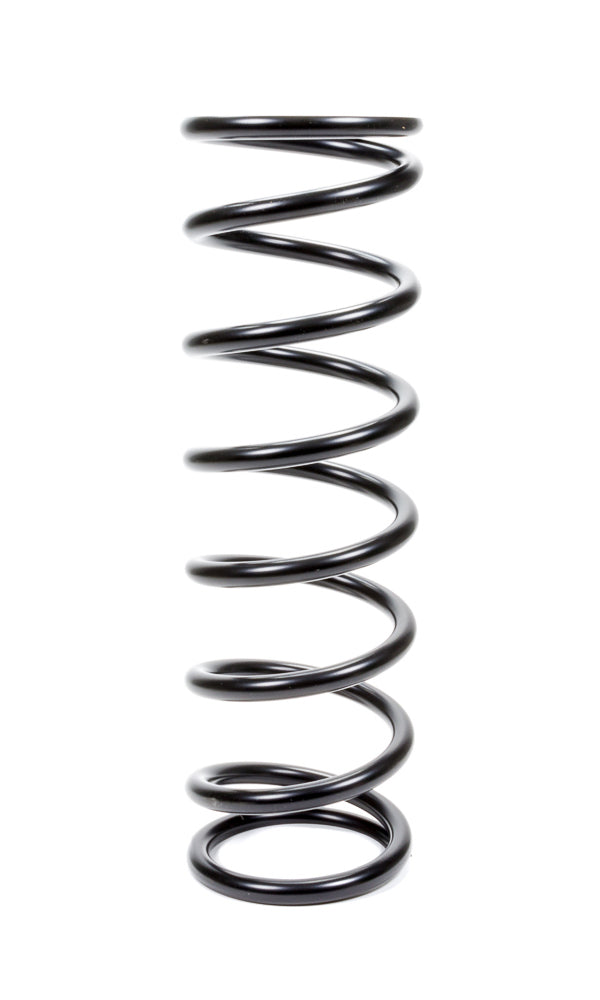

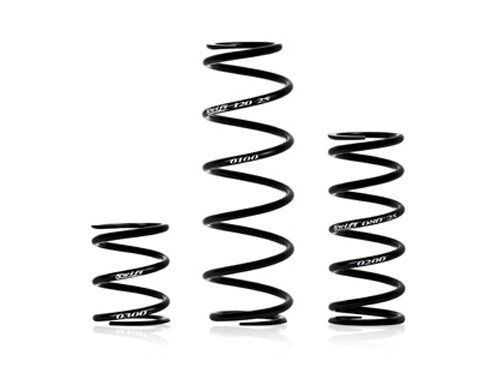

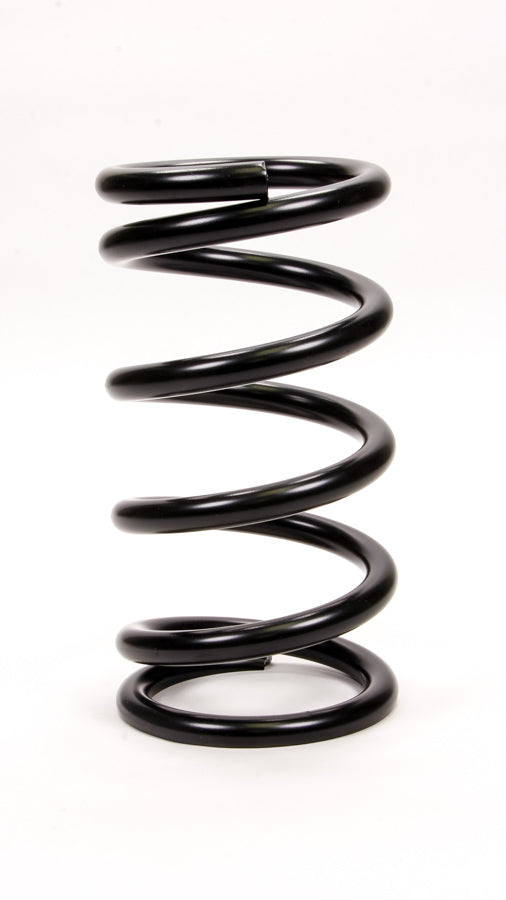

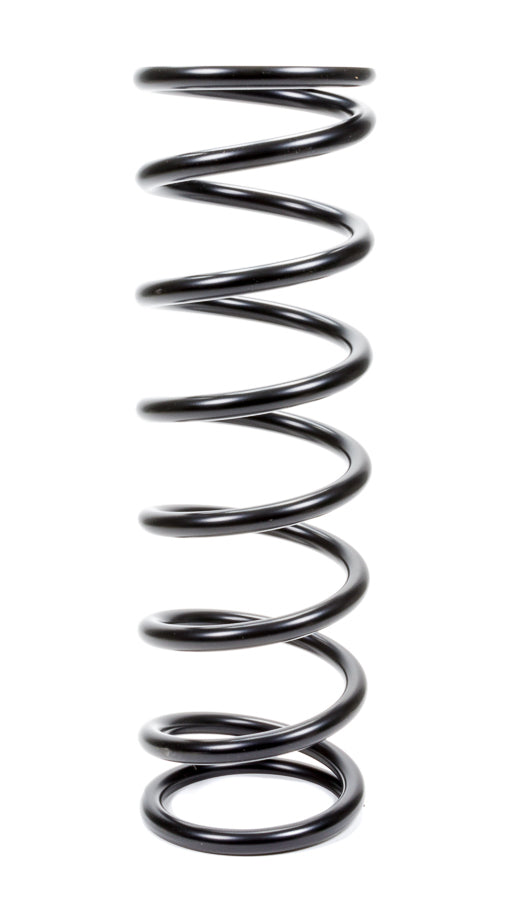

Swift Conventional Springs OD 5" 9.5" Length Front 350 lbs/inch
|
PART NUMBER
|
SPRING RATE | USABLE STROKE | MAX STROKE | MAX LOAD |
| lbs/inch | inch | inch | lbs | |
| 950-500-350 | 350 | 5.9 | 6.5 | 2,258 |
| 950-500-375 | 375 | 5.8 | 6.4 | 2,410 |
| 950-500-400 | 400 | 5.7 | 6.5 | 2,588 |
| 950-500-425 | 425 | 5.6 | 6.4 | 2,731 |
| 950-500-450 | 450 | 5.7 | 6.3 | 2,804 |
| 950-500-475 | 475 | 5.7 | 6.3 | 2,914 |
| 950-500-500 | 500 | 5.7 | 6.1 | 3,051 |
| 950-500-525 | 525 | 5.6 | 6.0 | 3,153 |
| 950-500-550 | 550 | 5.7 | 5.8 | 3,204 |
| 950-500-575 | 575 | 5.4 | 5.8 | 3,417 |
| 950-500-600 | 600 | 5.5 | 5.7 | 3,447 |
| 950-500-625 | 625 | 5.3 | 5.9 | 3,671 |
| 950-500-650 | 650 | 5.3 | 5.8 | 3,763 |
| 950-500-700 | 700 | 5.3 | 5.5 | 3,830 |
| 950-500-750 | 750 | 5.0 | 5.7 | 4,251 |
| 950-500-800 | 800 | 5.1 | 5.4 | 4,285 |
Swift Conventional Springs OD 5" 9.5" Length Front
Sale price$141.00 USD
