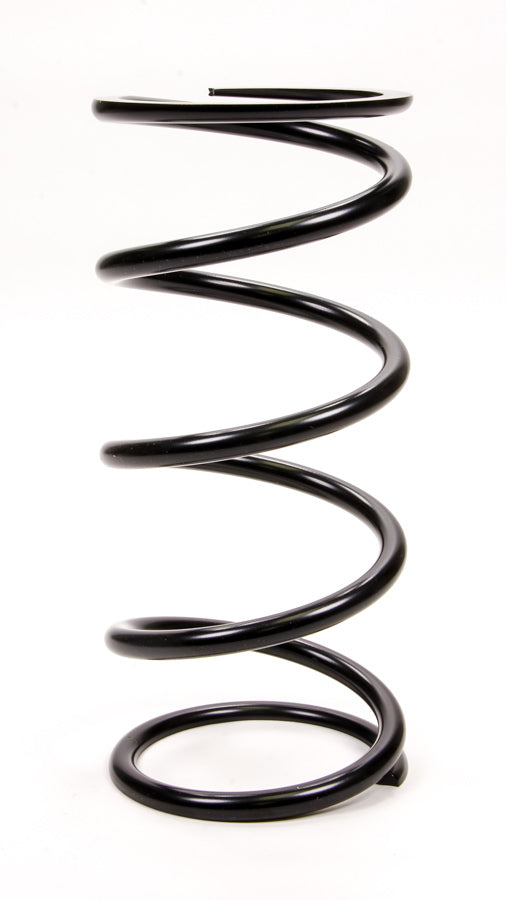

Swift Conventional Springs OD 5" 11" Length 80 lbs/inch
|
PART NUMBER
|
SPRING RATE | USABLE STROKE | MAX STROKE | MAX LOAD |
| lbs/inch | inch | inch | lbs | |
| 110-500-080 | 80 | 8.7 | 8.7 | 694 |
| 110-500-100 | 100 | 8.6 | 8.6 | 858 |
| 110-500-125 BP | 125 | 8.5 | 8.7 | 1,091 |
| 110-500-150 BP | 150 | 8.5 | 8.6 | 1,292 |
| 110-500-175 BP | 175 | 7.9 | 8.4 | 1,479 |
| 110-500-200 BP | 200 | 7.6 | 8.5 | 1,706 |
| 110-500-225 BP | 225 | 7.8 | 8.2 | 1,847 |
| 110-500-250 | 250 | 7.4 | 8.3 | 2,066 |
| 110-500-275 | 275 | 6.9 | 8.2 | 2,253 |
| 110-500-300 | 300 | 6.9 | 8.0 | 2,402 |
| 110-500-325 | 325 | 6.8 | 7.9 | 2,568 |
| 110-500-350 | 350 | 6.6 | 7.9 | 2,763 |
Swift Conventional Springs OD 5" 11" Length
Sale price$131.00 USD
