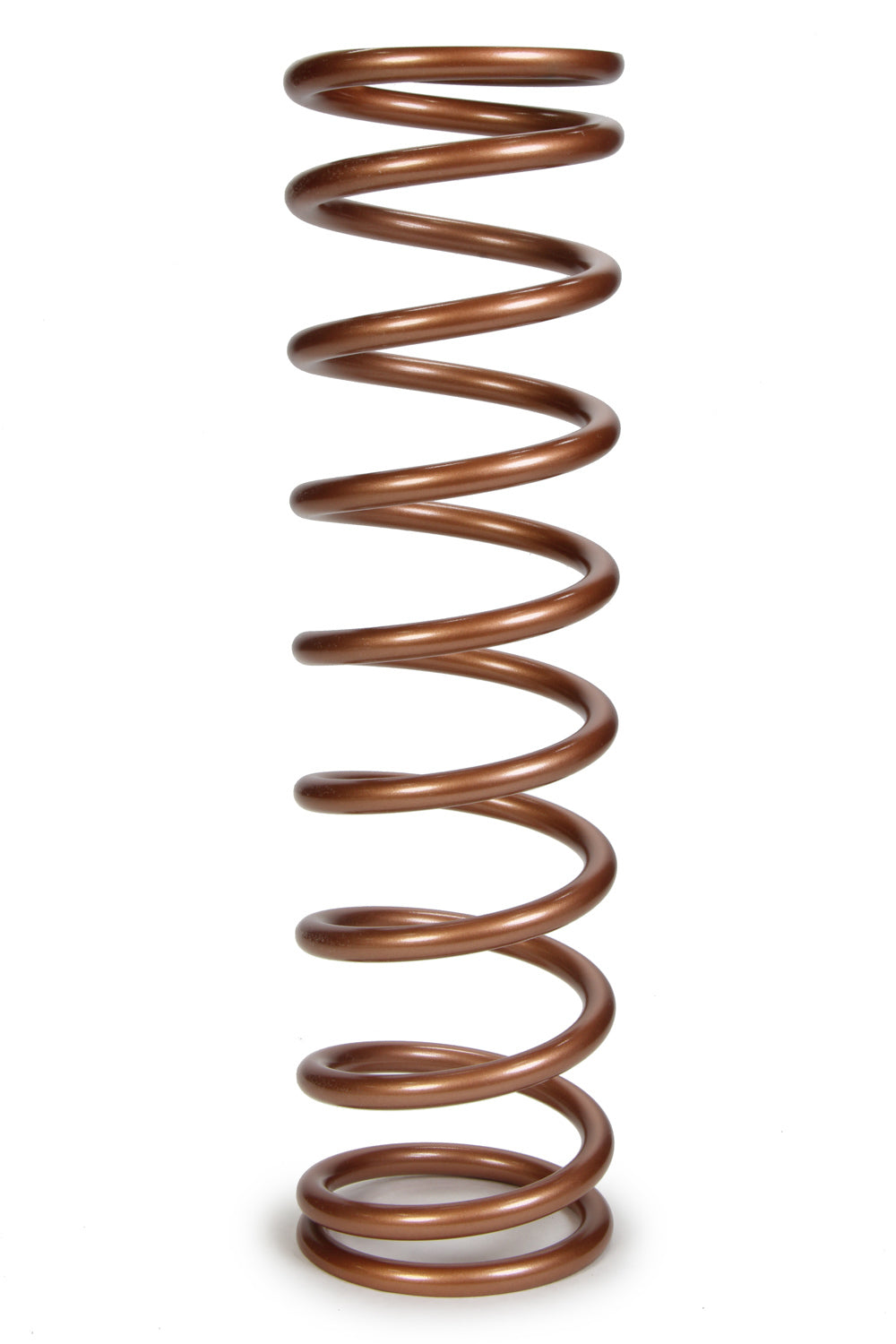

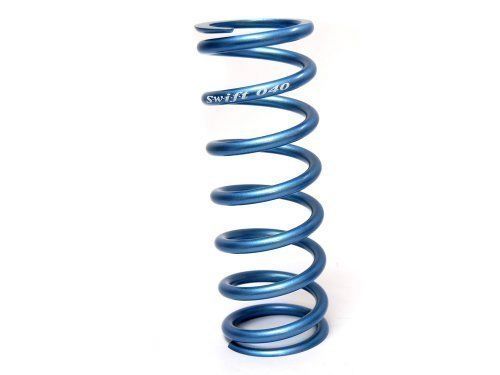

Swift Coilover Springs ID 3.0" 16" Length 100 lbs/inch
|
PART NUMBER
|
SPRING RATE | USABLE STROKE | MAX STROKE | MAX LOAD |
| lbs/inch | inch | inch | lbs | |
| 160-300-100 BP | 100 | 11.7 | 11.7 | 1,173 |
| 160-300-125 BP | 125 | 11.5 | 11.5 | 1,442 |
| 160-300-150 BP | 150 | 11.1 | 11.1 | 1,659 |
| 160-300-250 | 250 | 9.4 | 10.5 | 2,618 |
| 160-300-300 | 300 | 8.9 | 10.2 | 3,047 |
| 160-300-350 | 350 | 8.6 | 10.0 | 3,486 |
| 160-300-400 | 400 | 8.5 | 9.5 | 3,795 |
| 160-300-450 | 450 | 8.0 | 9.6 | 4,341 |
| 160-300-500 | 500 | 7.8 | 9.4 | 4,705 |
| 160-300-550 | 550 | 7.7 | 9.1 | 5,024 |
| 160-300-600 | 600 | 7.3 | 8.9 | 5,315 |
| 160-300-650 | 650 | 6.7 | 9.1 | 5,911 |
Swift Coilover Springs ID 3.0" 16" Length
Sale price$161.00 USD
