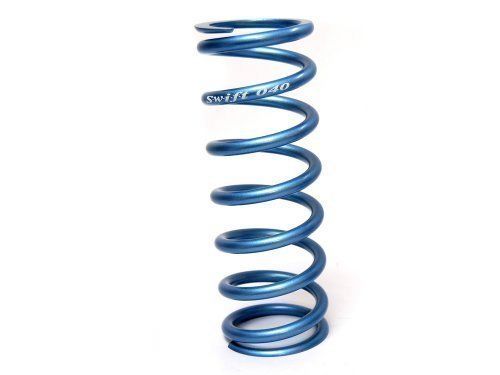

Swift Coilover Springs ID 3.0" 12" Length 100 lbs/inch
|
PART NUMBER
|
SPRING RATE | USABLE STROKE | MAX STROKE | MAX LOAD |
| lbs/inch | inch | inch | lbs | |
| 120-300-100 | 100 | 8.8 | 8.8 | 878 |
| 120-300-125 | 125 | 8.7 | 8.7 | 1,088 |
| 120-300-150 | 150 | 8.5 | 8.5 | 1,281 |
| 120-300-175 | 175 | 7.4 | 8.6 | 1,509 |
| 120-300-200 | 200 | 7.2 | 8.5 | 1,701 |
| 120-300-225 | 225 | 7.0 | 8.3 | 1,878 |
| 120-300-250 | 250 | 6.9 | 8.1 | 2,037 |
| 120-300-275 | 275 | 7.0 | 7.8 | 2,155 |
| 120-300-300 | 300 | 6.9 | 7.7 | 2,315 |
| 120-300-350 | 350 | 6.4 | 7.8 | 2,715 |
| 120-300-400 | 400 | 6.4 | 7.4 | 2,945 |
| 120-300-450 | 450 | 6.4 | 7.0 | 3,154 |
| 120-300-475 | 475 | 6.4 | 6.8 | 3,235 |
| 120-300-500 | 500 | 6.3 | 6.8 | 3,386 |
| 120-300-550 | 550 | 5.9 | 6.9 | 3,811 |
| 120-300-600 | 600 | 5.7 | 6.9 | 4,134 |
| 120-300-650 | 650 | 5.6 | 6.9 | 4,453 |
| 120-300-700 | 700 | 5.3 | 6.9 | 4,850 |
| 120-300-750 | 750 | 5.4 | 6.6 | 4,961 |
Swift Coilover Springs ID 3.0" 12" Length
Sale price$151.00 USD
