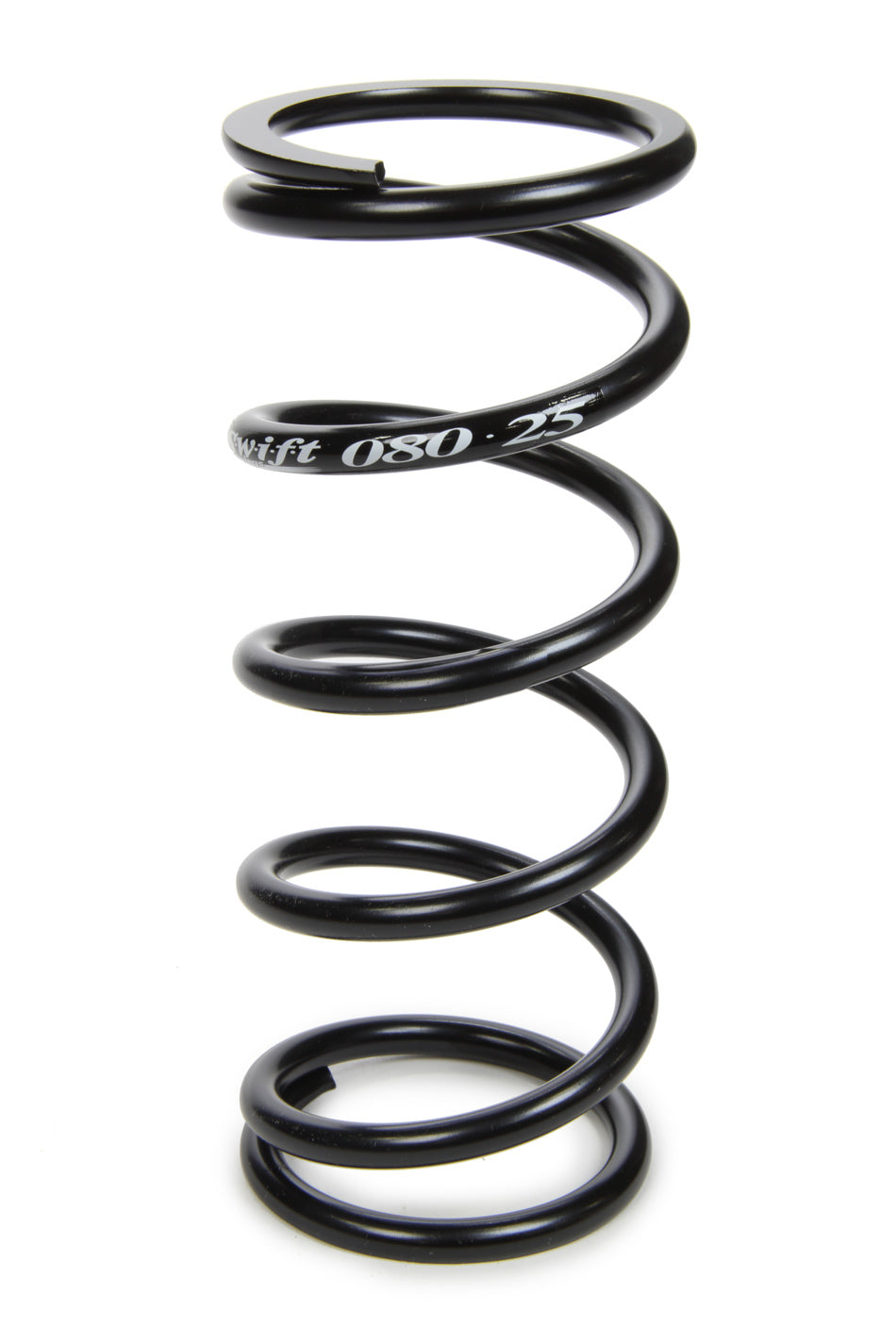

Swift Coilover Springs ID 2.5" 8" Length Straight Type 100 lbs/inch
|
PART NUMBER
|
SPRING RATE | USABLE STROKE | MAX STROKE | MAX. LOAD |
| lbs/inch | inch | inch | lbs | |
| 080-250-100 | 100 | 5.8 | 5.8 | 582 |
| 080-250-125 | 125 | 5.6 | 5.6 | 710 |
| 080-250-150 | 150 | 5.7 | 5.7 | 877 |
| 080-250-175 | 175 | 5.2 | 5.7 | 985 |
| 080-250-200 | 200 | 5.1 | 5.8 | 1,151 |
| 080-250-225 | 225 | 4.9 | 5.7 | 1,281 |
| 080-250-250 | 250 | 4.8 | 5.6 | 1,400 |
| 080-250-275 | 275 | 4.7 | 5.5 | 1,515 |
| 080-250-300 | 300 | 4.7 | 5.4 | 1,621 |
| 080-250-350 | 350 | 4.6 | 5.2 | 1,837 |
| 080-250-375 | 375 | 4.4 | 5.2 | 1,954 |
| 080-250-400 | 400 | 4.4 | 5.2 | 2,065 |
| 080-250-425 | 425 | 4.3 | 5.1 | 2,172 |
| 080-250-450 | 450 | 4.3 | 5.1 | 2,274 |
| 080-250-475 | 475 | 4.3 | 5.0 | 2,371 |
| 080-250-500 | 500 | 4.2 | 4.9 | 2,461 |
| 080-250-525 | 525 | 4.2 | 4.8 | 2,546 |
| 080-250-550 | 550 | 4.1 | 4.9 | 2,678 |
| 080-250-600 | 600 | 4.0 | 4.8 | 2,883 |
| 080-250-650 | 650 | 4.0 | 4.6 | 3,010 |
| 080-250-700 | 700 | 3.9 | 4.5 | 3,180 |
| 080-250-1100 | 1100 | 3.5 | 3.9 | 4,339 |
| 080-250-1300 | 1300 | 3.2 | 4.0 | 5,220 |
| 080-250-1400 | 1400 | 3.2 | 3.8 | 5,298 |
| 080-250-1500 | 1500 | 3.2 | 3.5 | 5,309 |
| 080-250-1600 | 1600 | 3.0 | 3.8 | 6,041 |

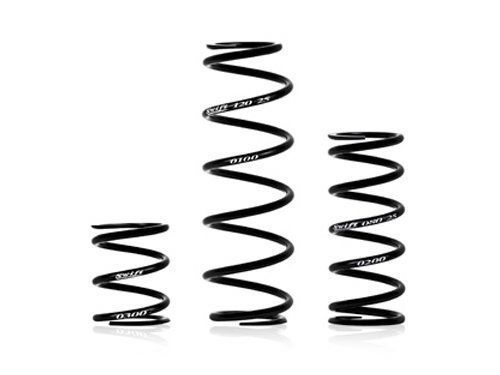

Swift Coilover Springs ID 2.5" 8" Length Straight Type
Sale price$121.00 USD
