Swift Coilover Springs ID 2.5" 16" Length Barrel Type 50 lbs/inch
|
PART NUMBER
|
SPRING RATE | USABLE STROKE | MAX STROKE | MAX. LOAD |
| lbs/inch | inch | inch | lbs | |

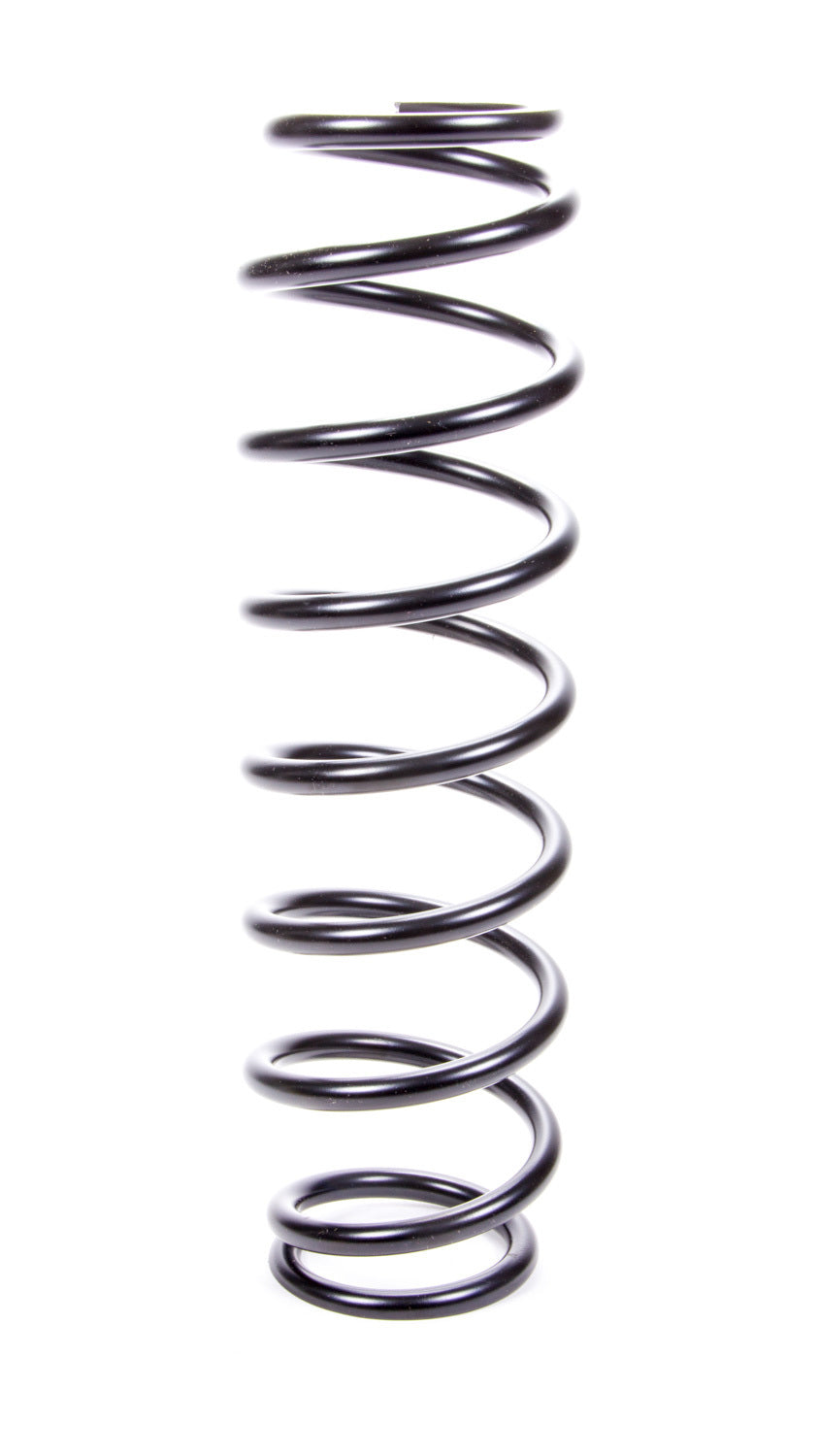

| 160-250-050 B | 50 | 12.4 | 12.4 | 615 |
| 160-250-080 B | 80 | 11.6 | 11.6 | 935 |
| 160-250-100 BP | 100 | 12.4 | 12.4 | 1,246 |

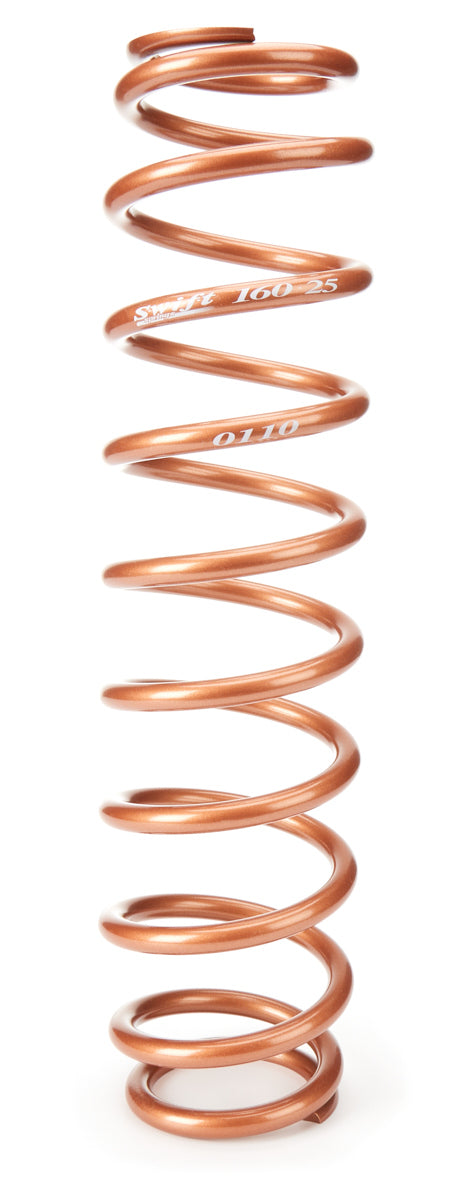

| 160-250-110 BP | 110 | 11.9 | 11.9 | 1,308 |
| 160-250-125 BP | 125 | 12.1 | 12.1 | 1,516 |

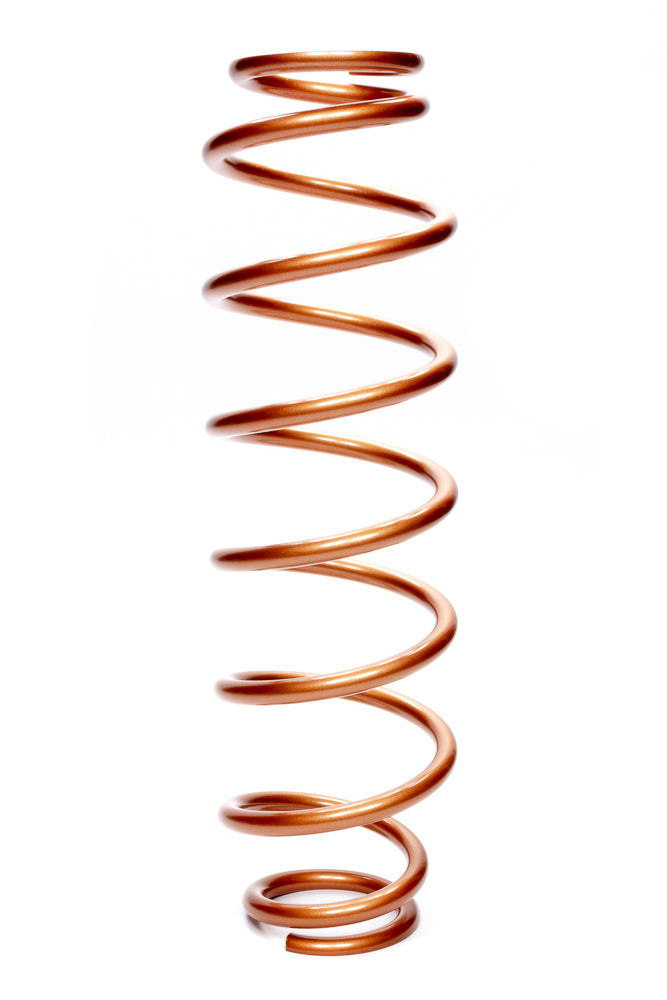

| 160-250-150 BP | 150 | 11.5 | 12.2 | 1,827 |
| 160-250-175 BP | 175 | 11.4 | 12.0 | 2,094 |
| 160-250-200 B | 200 | 9.6 | 11.5 | 2,308 |
| 160-250-250 B | 250 | 9.2 | 10.8 | 2,700 |
| 160-250-300 B | 300 | 8.9 | 10.3 | 3,081 |
Swift Coilover Springs ID 2.5" 16" Length Barrel Type
Sale price$151.00 USD
