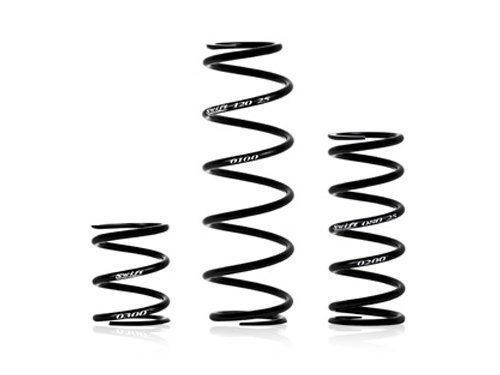

Swift Coilover Springs ID 2.5" 12" Length Barrel Type 60 lbs/inch
|
PART NUMBER
|
SPRING RATE | USABLE STROKE | MAX STROKE | MAX. LOAD |
| lbs/inch | inch | inch | lbs | |
| 120-250-060 B | 60 | 9.6 | 9.6 | 575 |
| 120-250-090 B | 90 | 9.1 | 9.1 | 813 |
| 120-250-100 B | 100 | 9.0 | 9.0 | 895 |
| 120-250-115 B | 115 | 8.7 | 8.7 | 1,091 |
| 120-250-125 B | 125 | 8.7 | 8.7 | 1,091 |
| 120-250-135 B | 135 | 8.5 | 8.5 | 1,157 |
| 120-250-150 B | 150 | 7.8 | 9.1 | 1,365 |
| 120-250-160 B | 160 | 7.8 | 8.8 | 1,407 |
| 120-250-175 B | 175 | 7.7 | 8.8 | 1,546 |
| 120-250-185 B | 185 | 7.7 | 8.7 | 1,608 |
| 120-250-200 B | 200 | 7.5 | 8.7 | 1,731 |
| 120-250-225 B | 225 | 7.4 | 8.5 | 1,905 |
| 120-250-250 B | 250 | 7.3 | 8.2 | 2,045 |
| 120-250-275 B | 275 | 7.1 | 8.1 | 2,219 |
| 120-250-300 B | 300 | 6.9 | 8.1 | 2,422 |
| 120-250-325 B | 325 | 6.8 | 7.9 | 2,570 |
| 120-250-350 B | 350 | 6.6 | 7.9 | 2,756 |
| 120-250-375 B | 375 | 6.5 | 7.6 | 2,866 |
| 120-250-400 B | 400 | 6.4 | 7.6 | 3,038 |
| 120-250-450 B | 450 | 6.1 | 7.6 | 3,421 |
| 120-250-475 B | 475 | 6.0 | 7.5 | 3,571 |
| 120-250-500 B | 500 | 6.0 | 7.2 | 3,622 |
| 120-250-525 B | 525 | 6.1 | 6.9 | 3,640 |
| 120-250-550 B | 550 | 5.8 | 7.2 | 3,940 |
| 120-250-575 B | 575 | 5.8 | 7.0 | 4,030 |
| 120-250-600 B | 600 | 5.8 | 6.9 | 4,132 |
| 120-250-750 B | 750 | 5.4 | 6.6 | 4,930 |
Swift Coilover Springs ID 2.5" 12" Length Barrel Type
Sale price$121.00 USD
