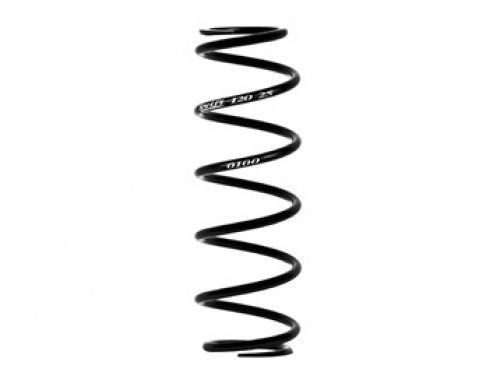

Swift Coilover Springs ID 1.88" 10" Length Barrel Type 100 lbs/inch
|
PART NUMBER
|
SPRING RATE | USABLE STROKE | MAX STROKE | MAX. LOAD |
| lbs/inch | inch | inch | lbs | |
| 100-188-100B3 | 100 | 6.5 | 7.5 | 754 |
| 100-188-110B3 | 110 | 6.3 | 7.4 | 829 |
| 100-188-120B3 | 120 | 6.2 | 7.3 | 877 |
| 100-188-130B3 | 130 | 6.2 | 7.0 | 903 |
| 100-188-140B3 | 140 | 5.9 | 7.2 | 1,014 |
| 100-188-150B3 | 150 | 6.1 | 6.9 | 1,042 |
| 100-188-160B3 | 160 | 5.7 | 7.0 | 1,144 |
| 100-188-170B3 | 170 | 5.8 | 6.9 | 1,157 |
| 100-188-180B3 | 180 | 5.8 | 6.7 | 1,206 |
| 100-188-190B3 | 190 | 5.8 | 6.4 | 1,219 |
| 100-188-200B3 | 200 | 5.7 | 6.5 | 1,317 |
| 100-188-220B3 | 220 | 5.7 | 6.4 | 1,402 |
| 100-188-240B3 | 240 | 5.6 | 6.3 | 1,510 |
| 100-188-260B3 | 260 | 5.4 | 6.3 | 1,612 |
| 100-188-280B3 | 280 | 5.4 | 5.9 | 1,651 |
| 100-188-300B3 | 300 | 5.1 | 6.1 | 1,845 |
| 100-188-325B3 | 325 | 5.2 | 5.9 | 1,905 |
| 100-188-350B3 | 350 | 5.0 | 5.7 | 2,028 |
Swift Coilover Springs ID 1.88" 10" Length Barrel Type
Sale price$97.00 USD
