Swift Bump Spring Linear Rate 400 lbs/inch
|
PART NUMBER
|
SPRING RATE | OD | LENGTH | STROKE |
| lbs/inch | inch | inch | inch | |
| SBS0400 | 400 | 2.0 | 2.25 | 1.12 |
| SBS0500 | 500 | 2.0 | 2.25 | 1.27 |
| SBS0600 | 600 | 2.0 | 2.25 | 1.11 |
| SBS0700 | 700 | 2.0 | 2.25 | 1.20 |
| SBS0800 | 800 | 2.0 | 2.25 | 1.01 |

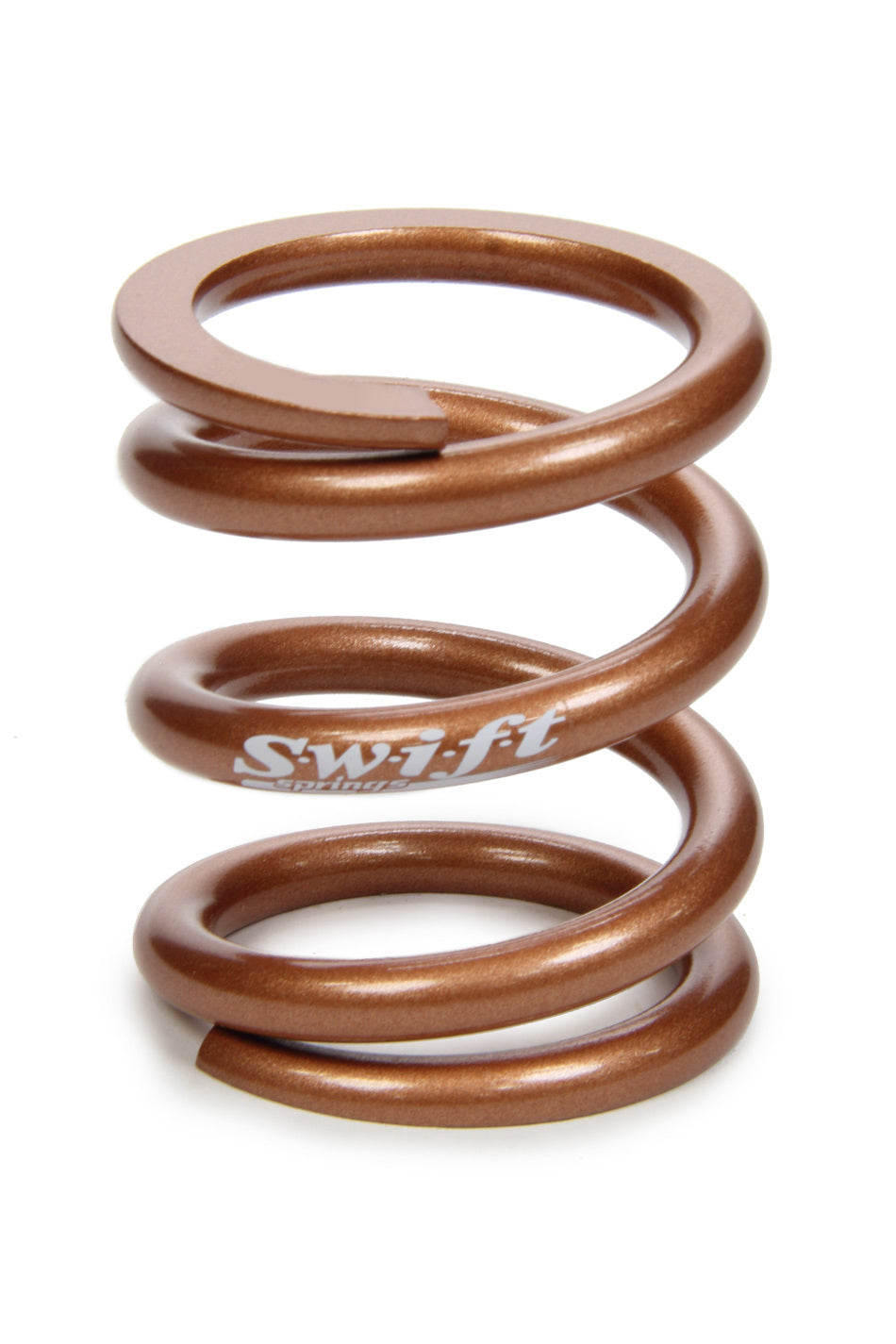

| SBS1000 | 1000 | 2.0 | 2.25 | 1.00 |

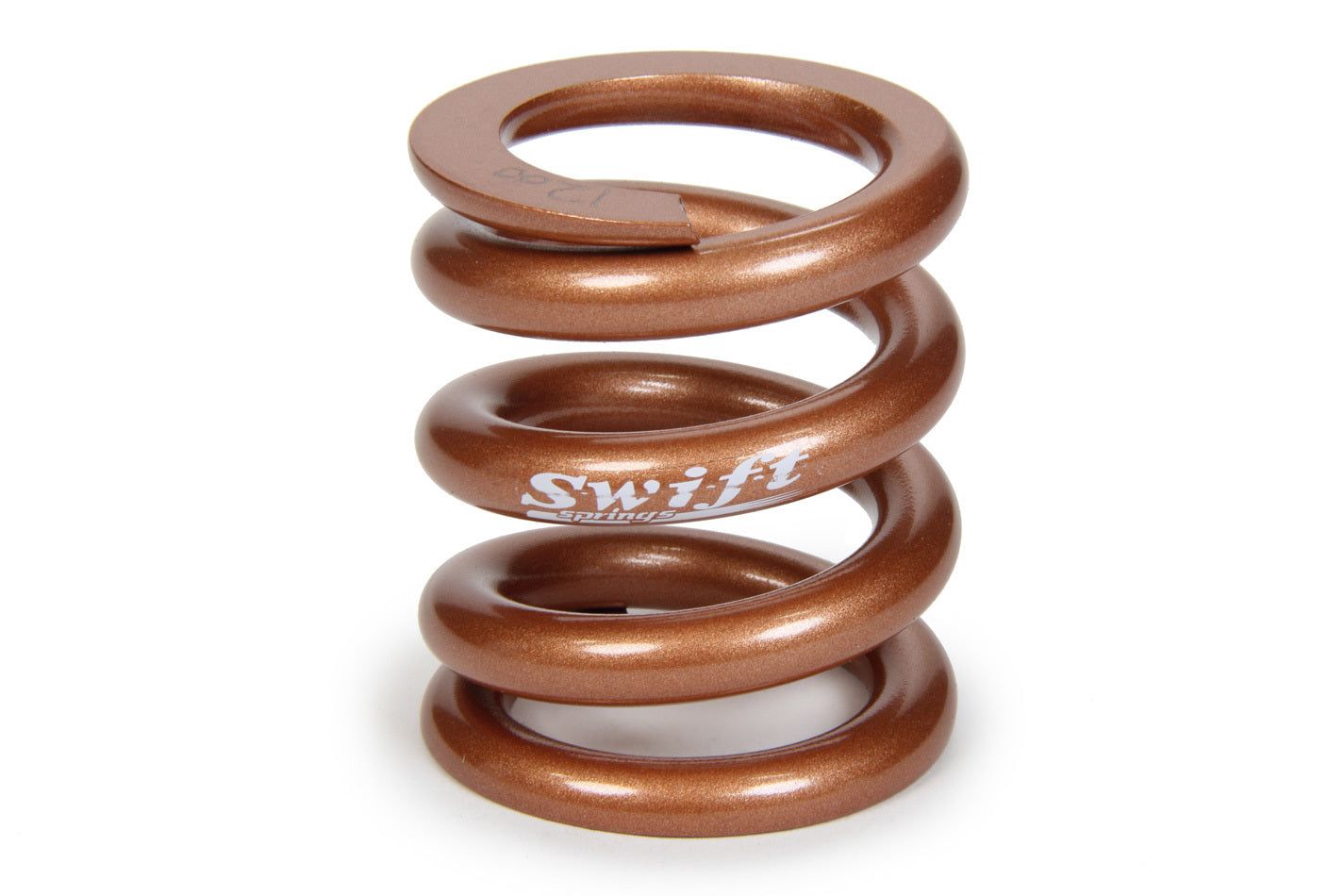

| SBS1200 | 1200 | 2.0 | 2.25 | 0.89 |
| SBS1400 | 1400 | 2.0 | 2.25 | 0.83 |
| SBS1600 | 1600 | 2.0 | 2.25 | 0.76 |

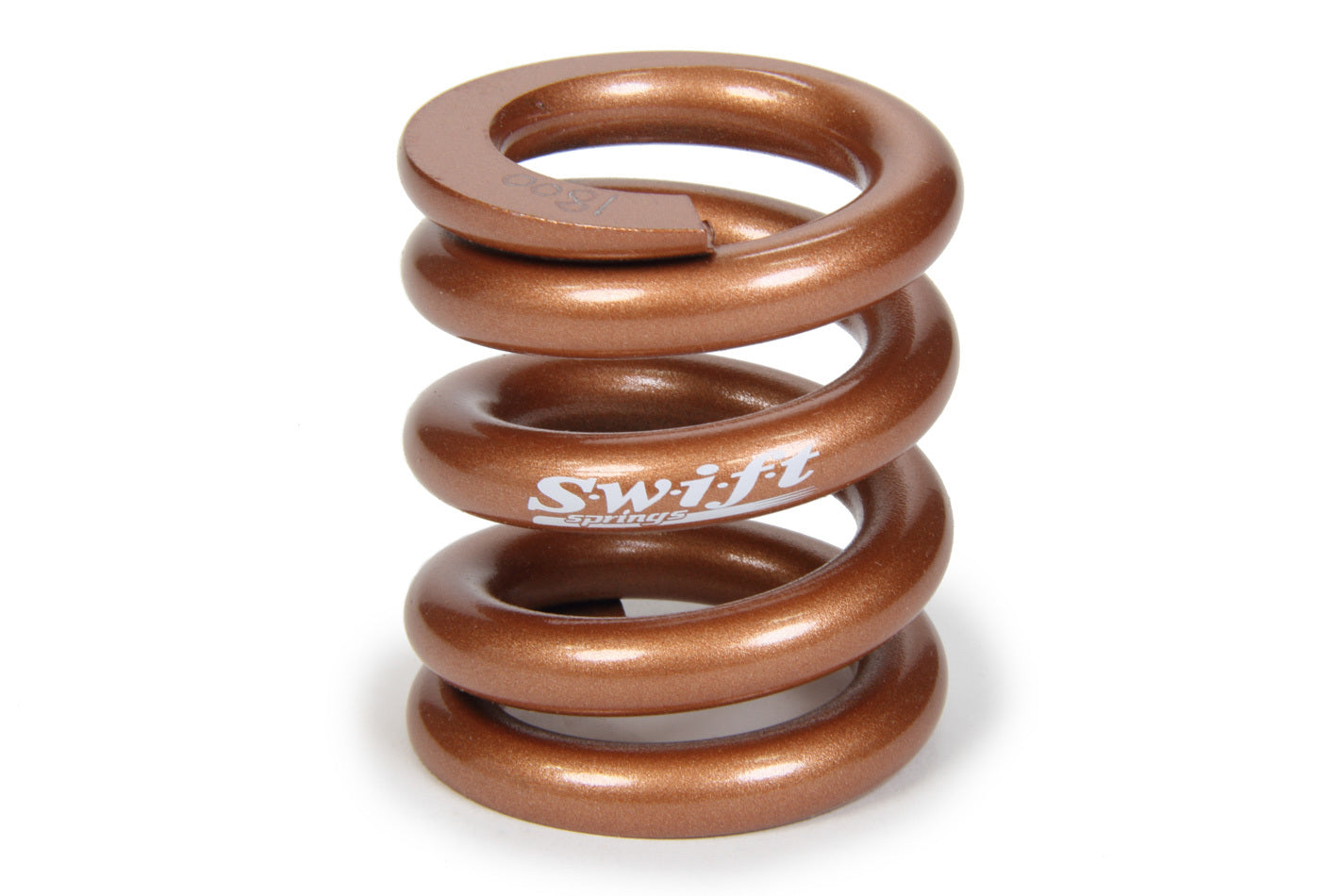

| SBS1800 | 1800 | 2.0 | 2.25 | 0.87 |
| SBS2000 | 2000 | 2.0 | 2.25 | 0.84 |

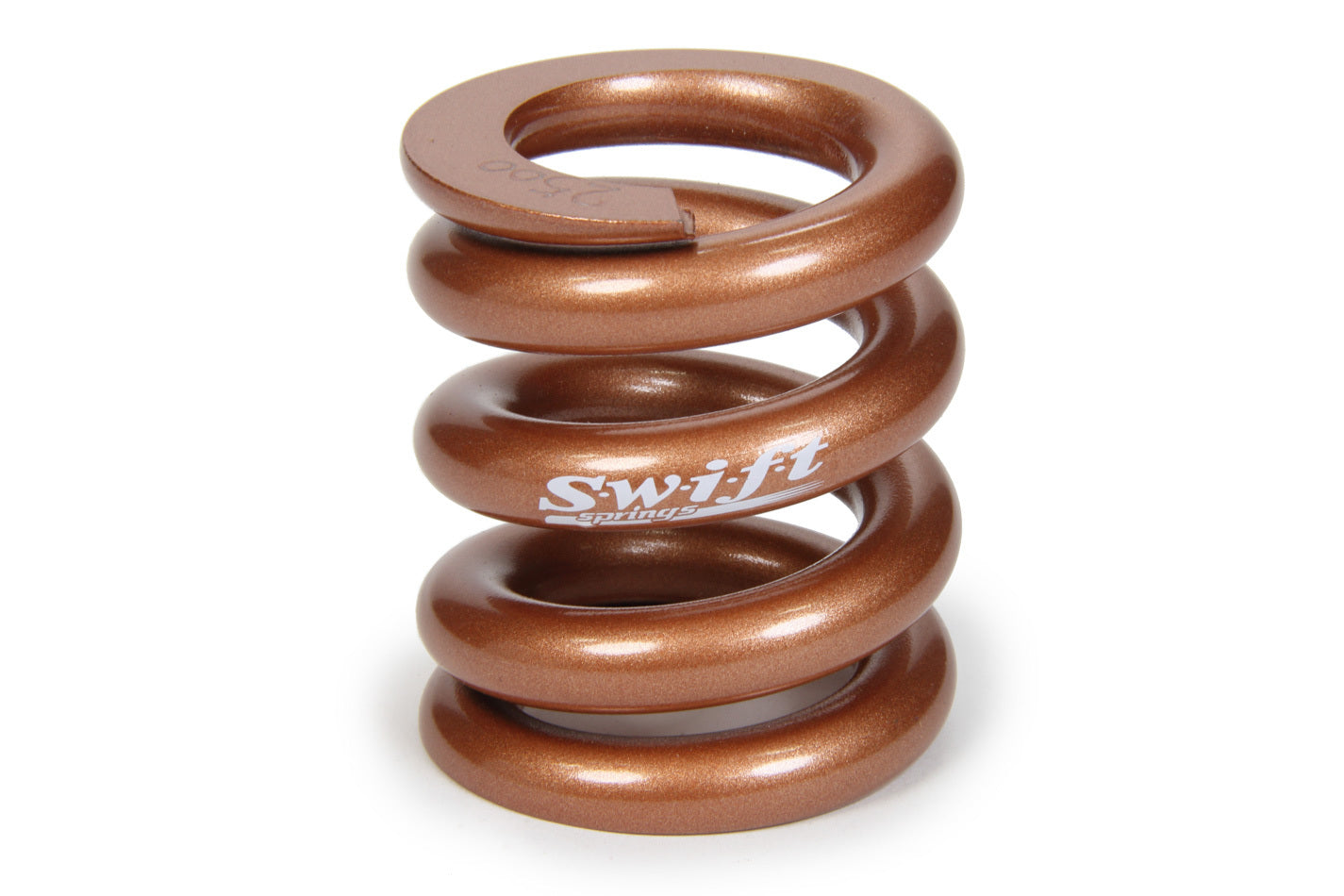

| SBS2500 | 2500 | 2.0 | 2.25 | 0.73 |

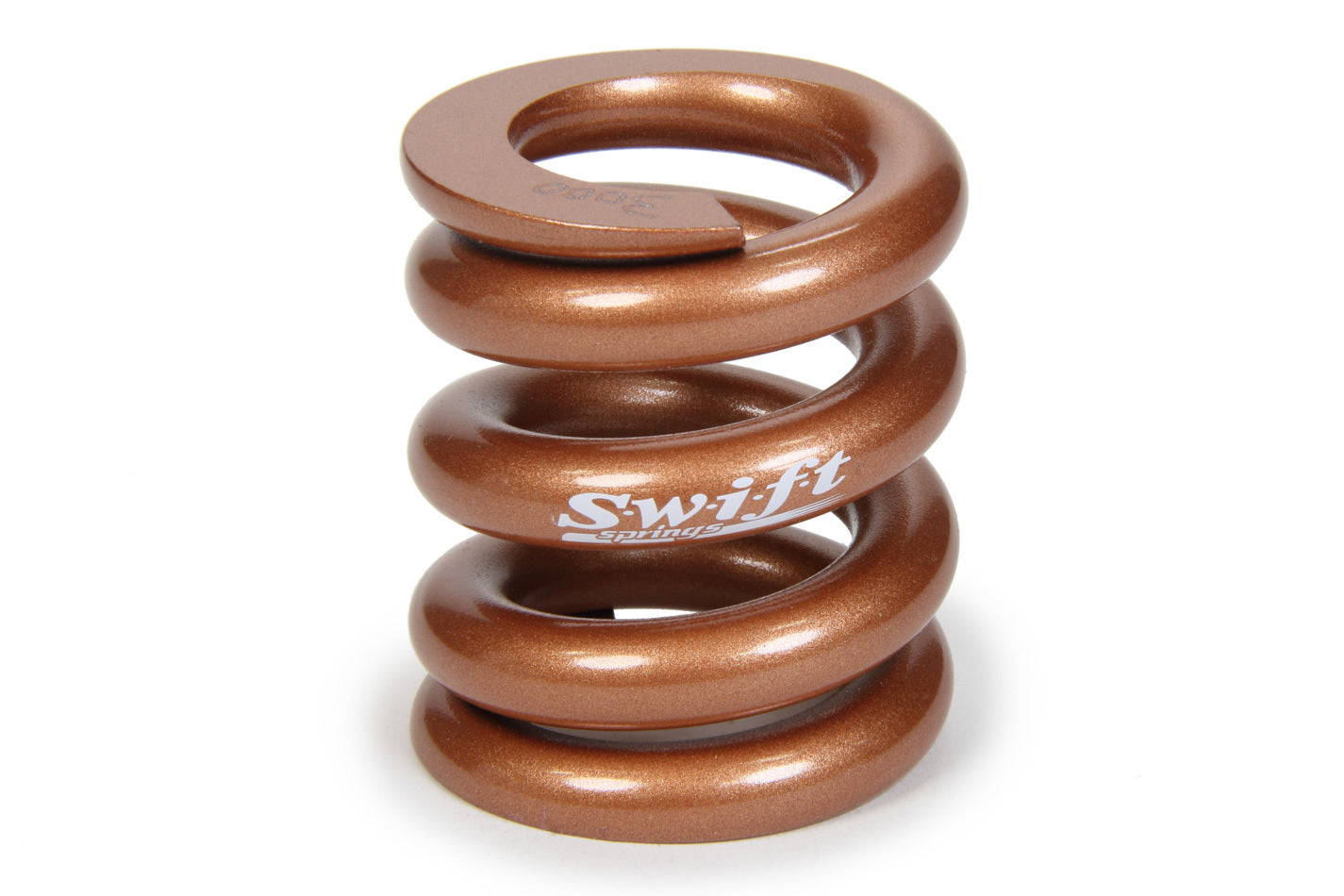

| SBS3000 | 3000 | 2.0 | 2.25 | 0.72 |
| SBS3500 | 3500 | 2.0 | 2.25 | 0.76 |
| SBS4000 | 4000 | 2.0 | 2.25 | 0.71 |
| SBS4500 | 4500 | 2.0 | 2.25 | 0.65 |

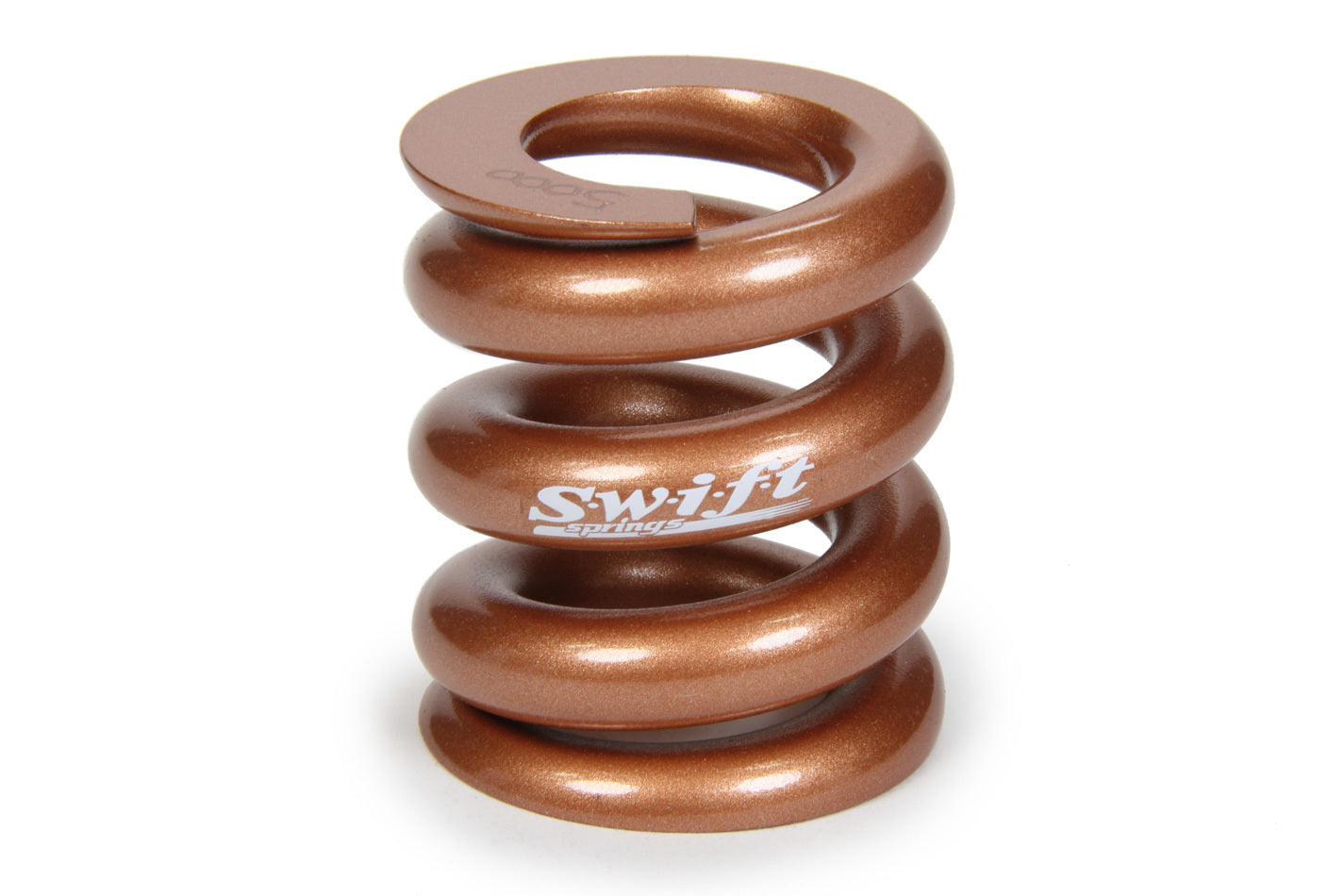

| SBS5000 | 5000 | 2.0 | 2.25 | 0.62 |
| SBS6000 | 6000 | 2.0 | 2.25 | 0.50 |

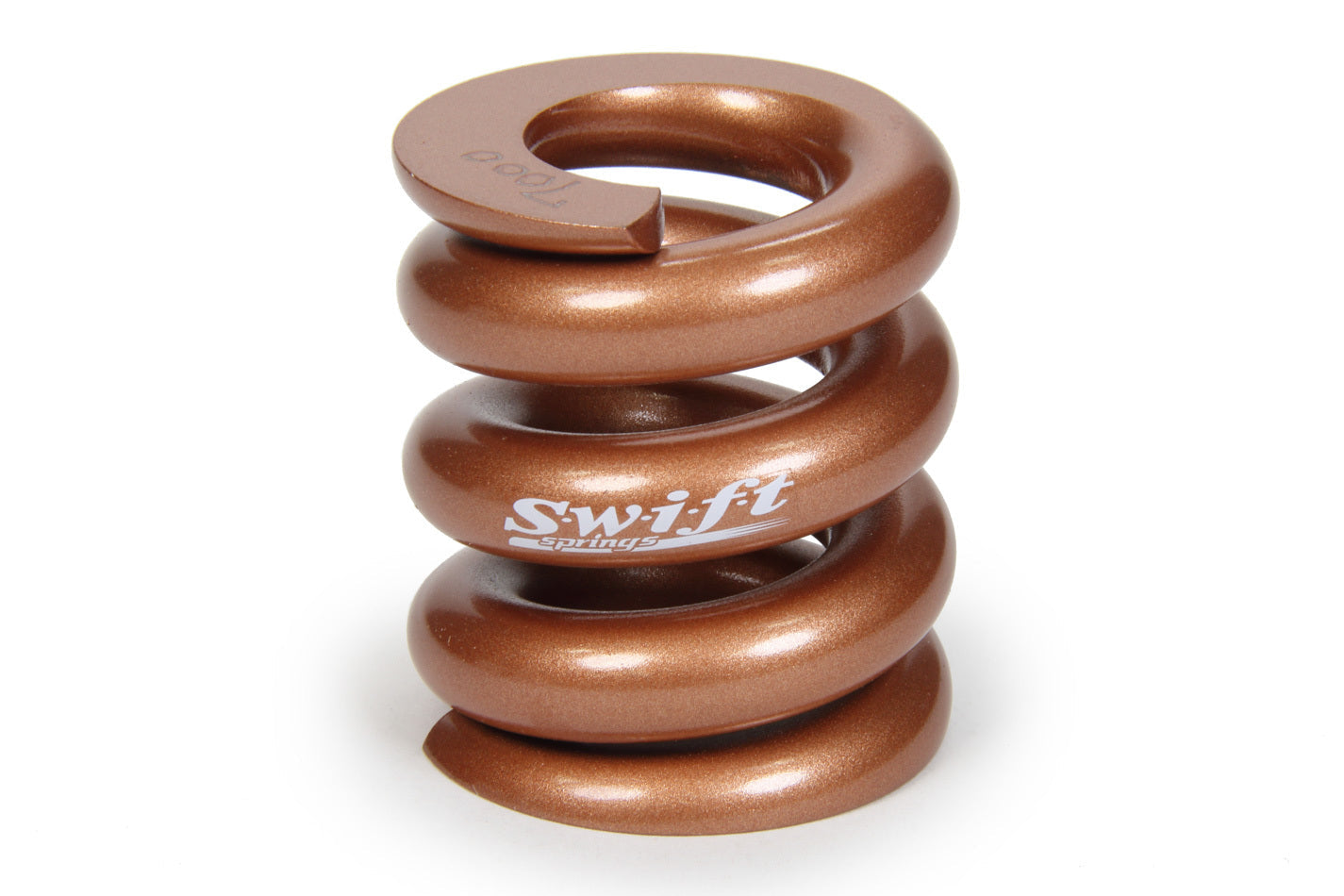

| SBS7000 | 7000 | 2.0 | 2.25 | 0.49 |

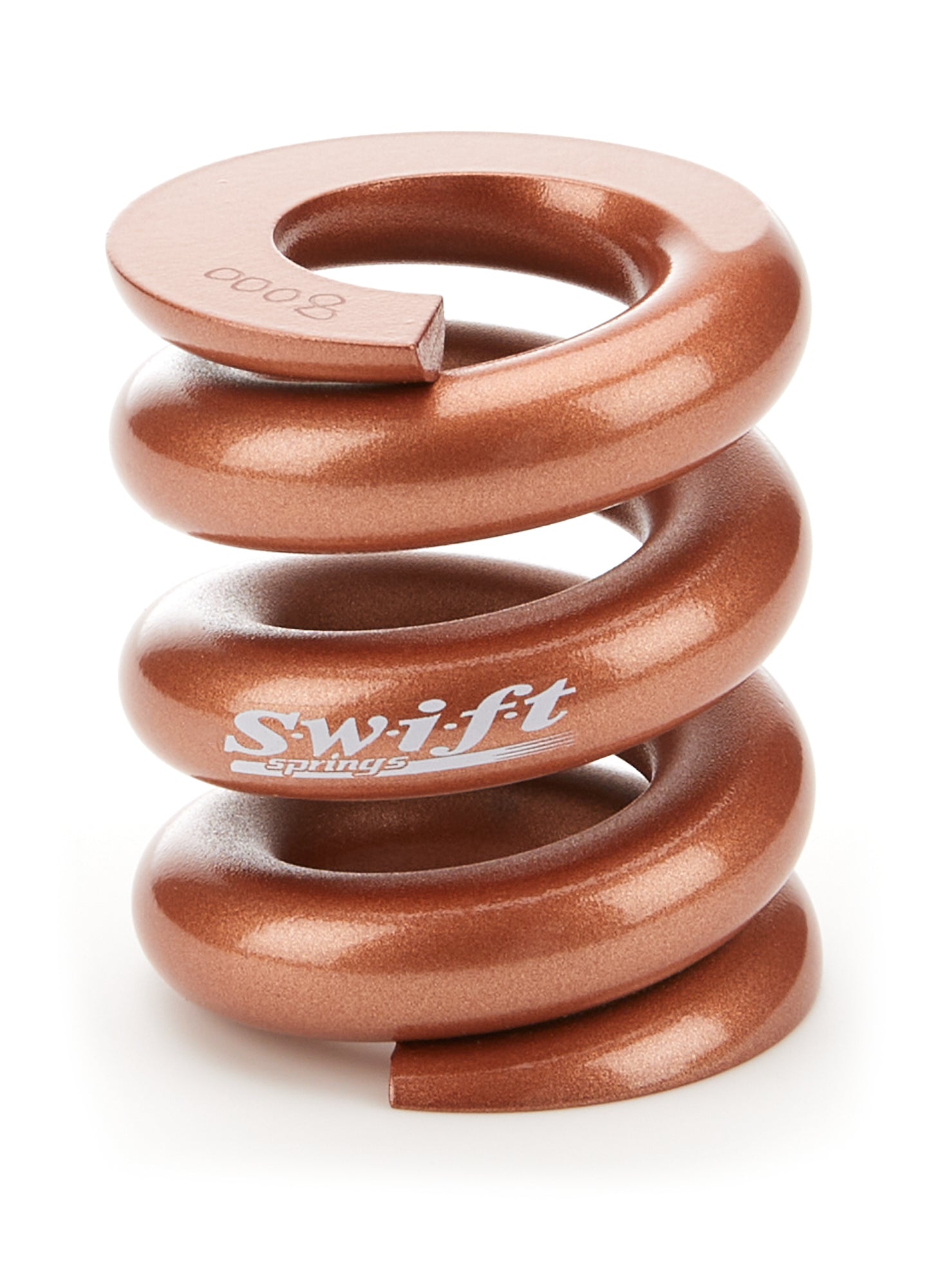

| SBS8000 | 8000 | 2.0 | 2.25 | 0.53 |

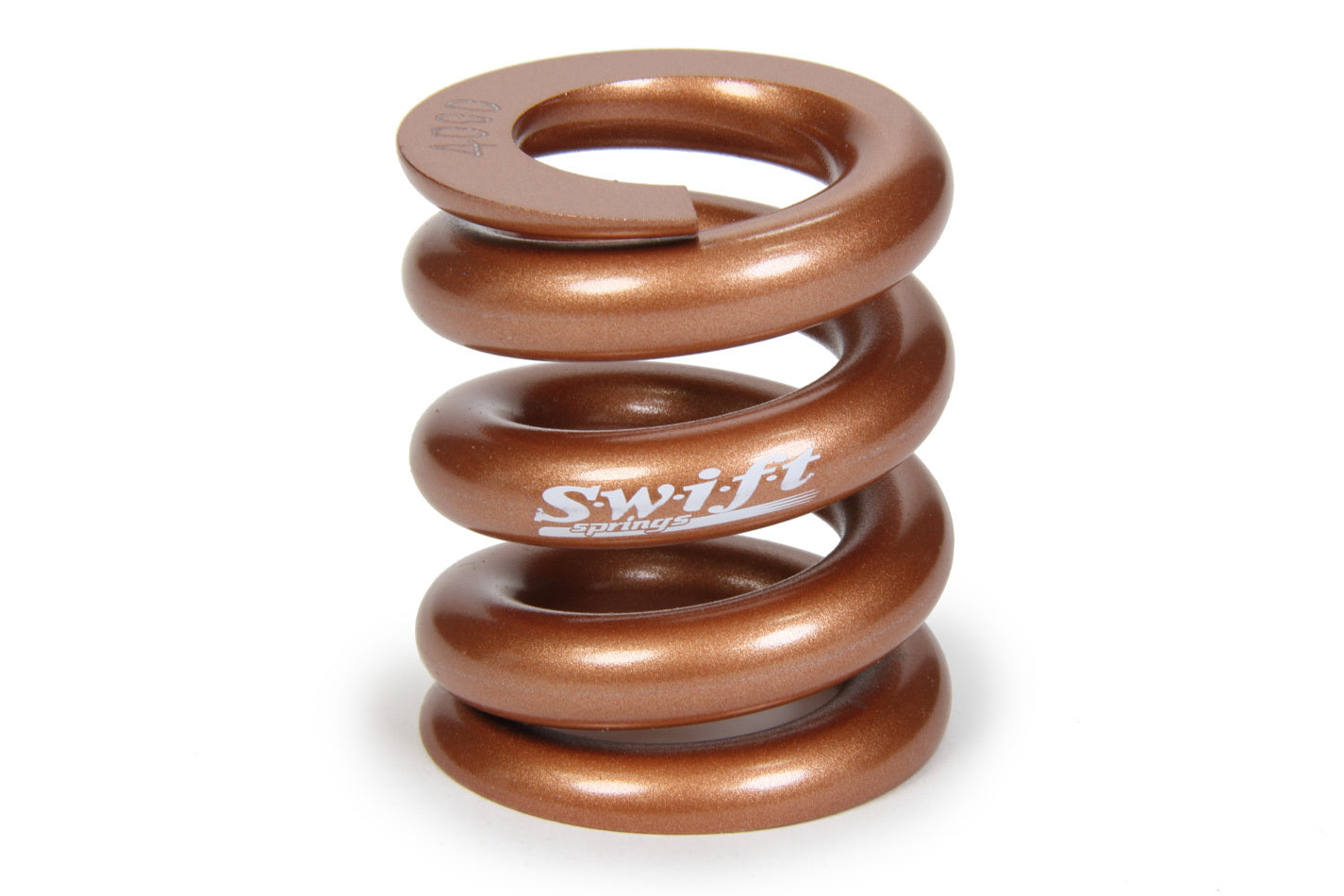

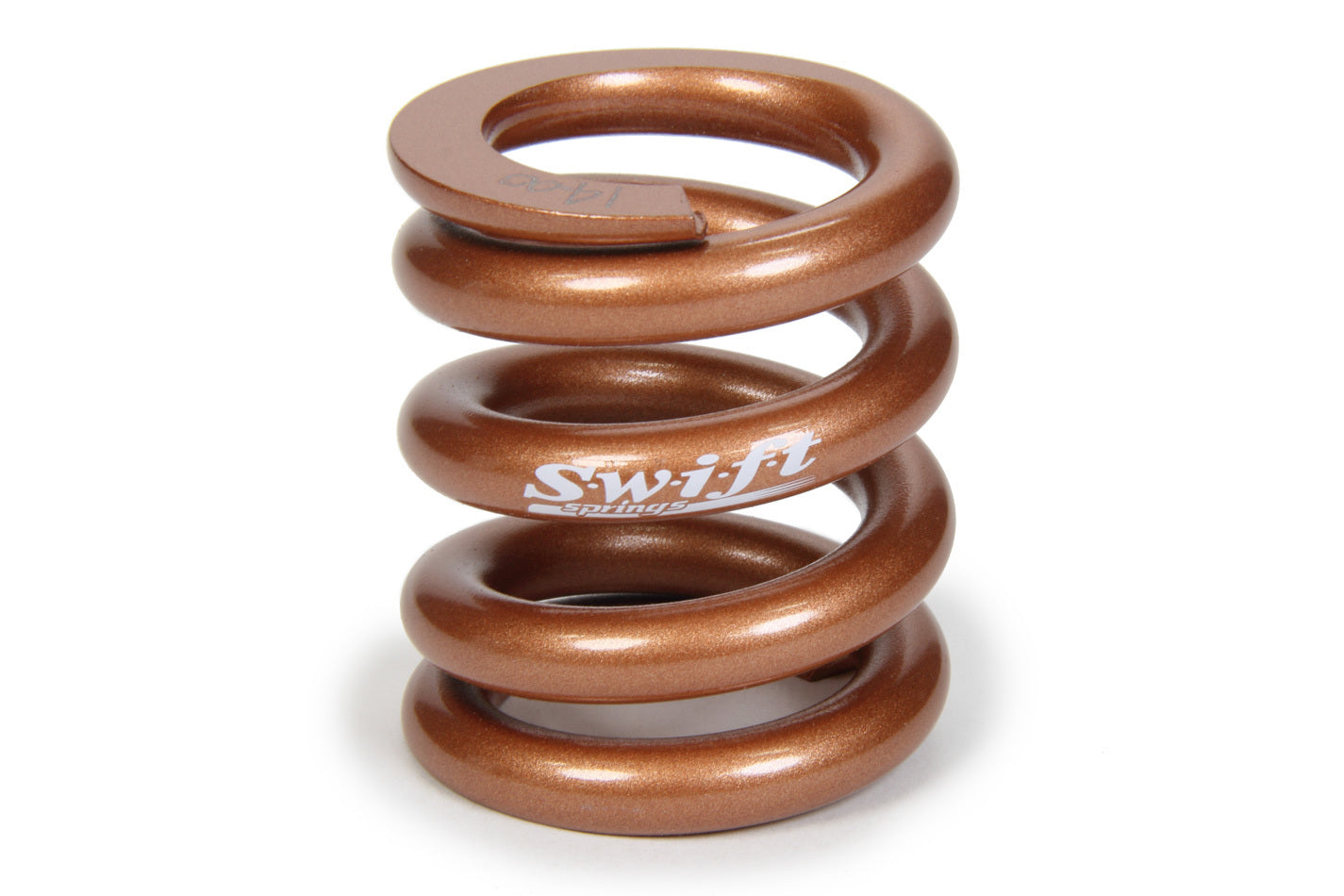

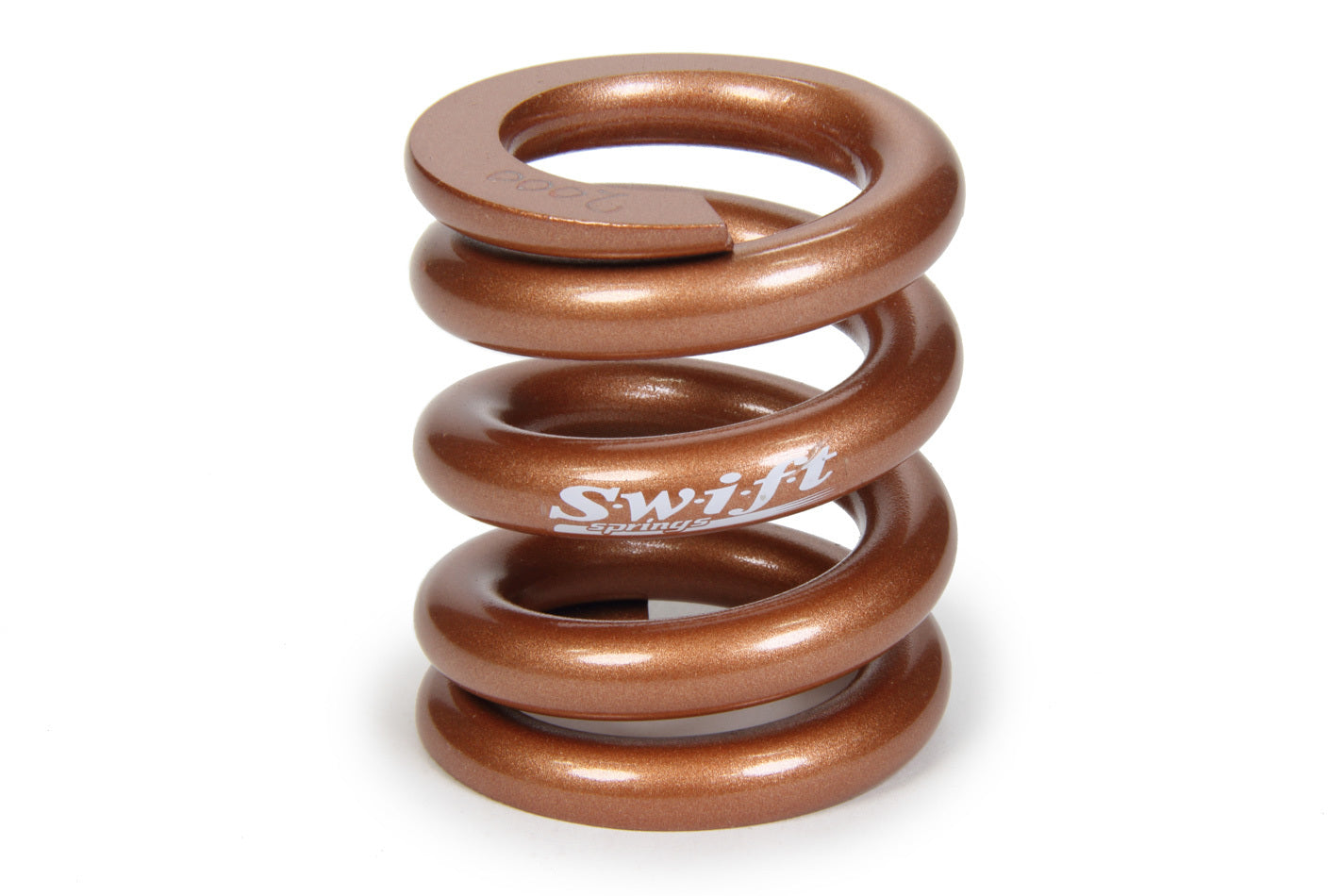

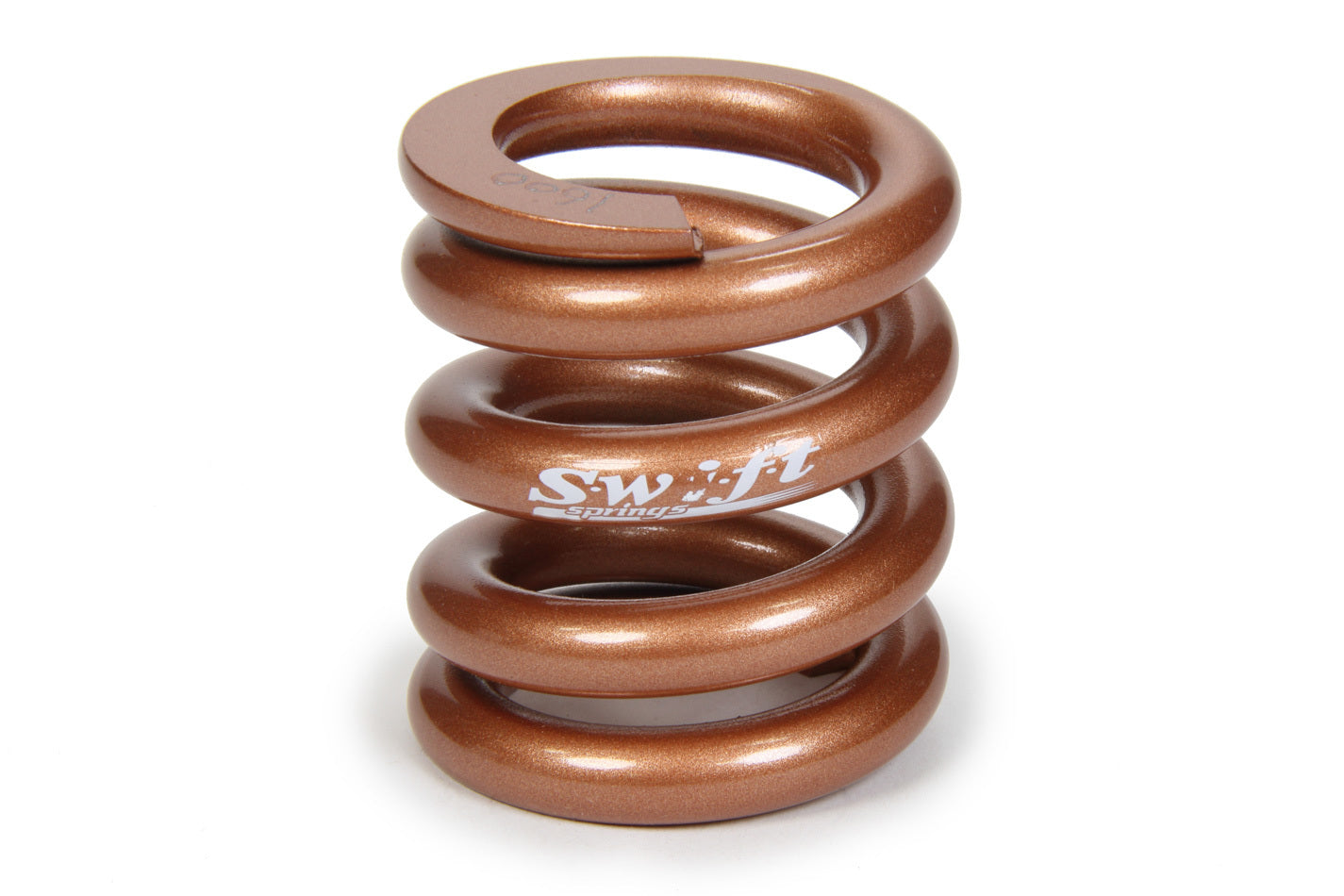

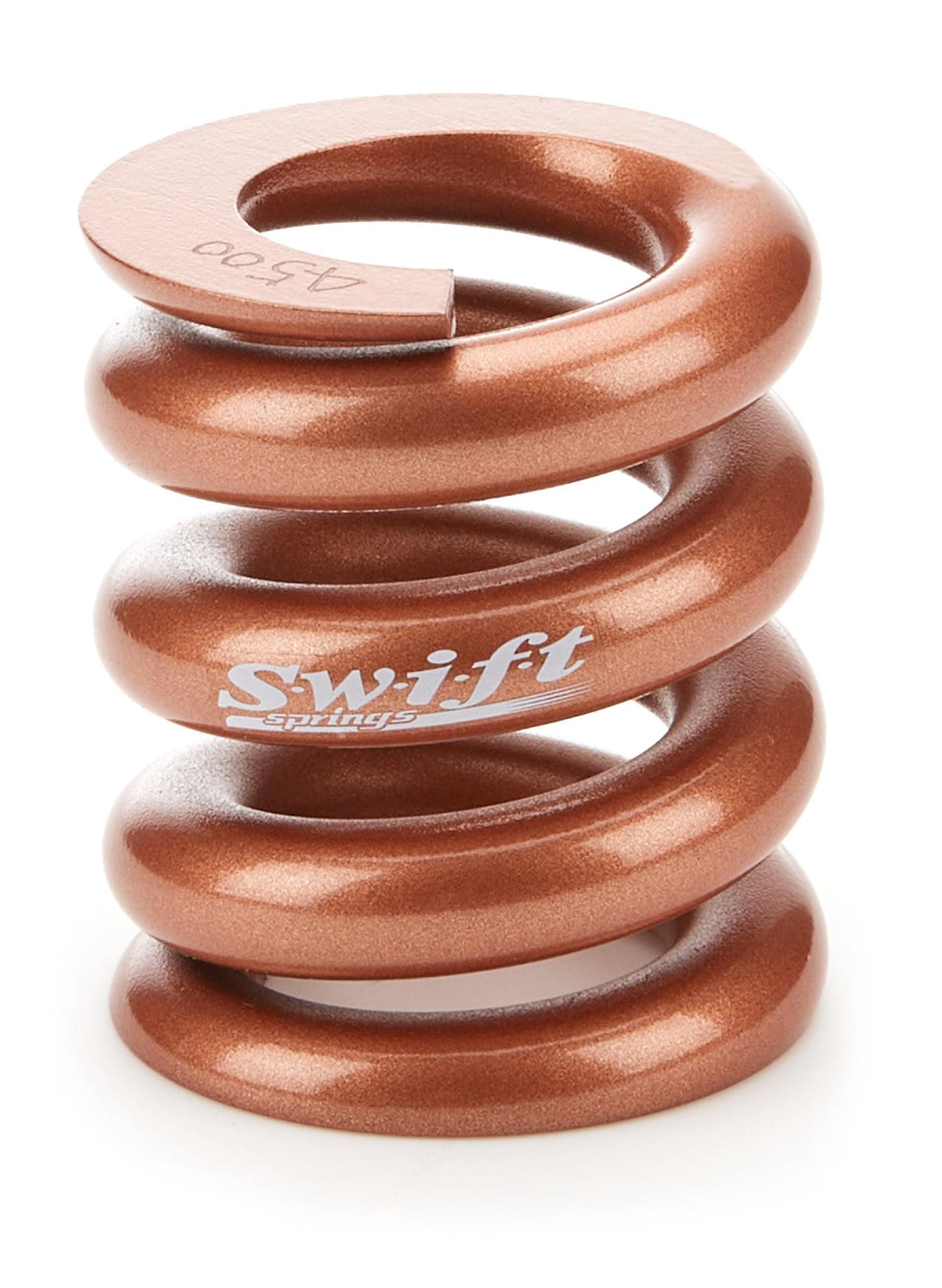

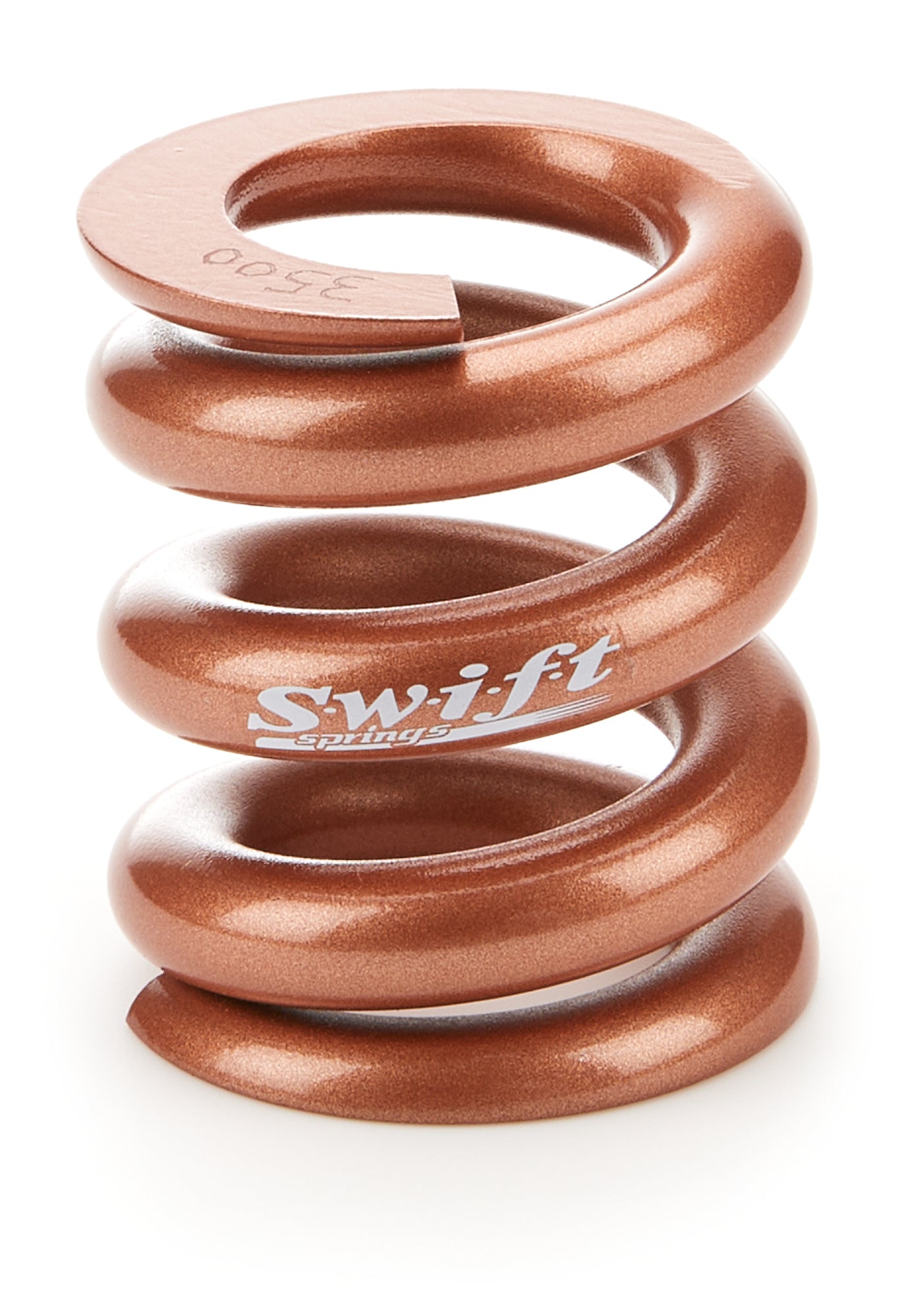

Swift Bump Spring Linear Rate
Sale price$109.00 USD
