Specifications
Product details shared across all variants.
- Product type
- Suspension Lift Kit
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Shipping dimensions (L × W × H)
- Shipping weight
- 365.8 lb
- Barcode
- 674866099777
Billable shipping weight; may include dimensional weight.
63 Performance System W/ Front Dirt Logic 2.5 Resi Coilovers & Rear Dirt Logic Shocks

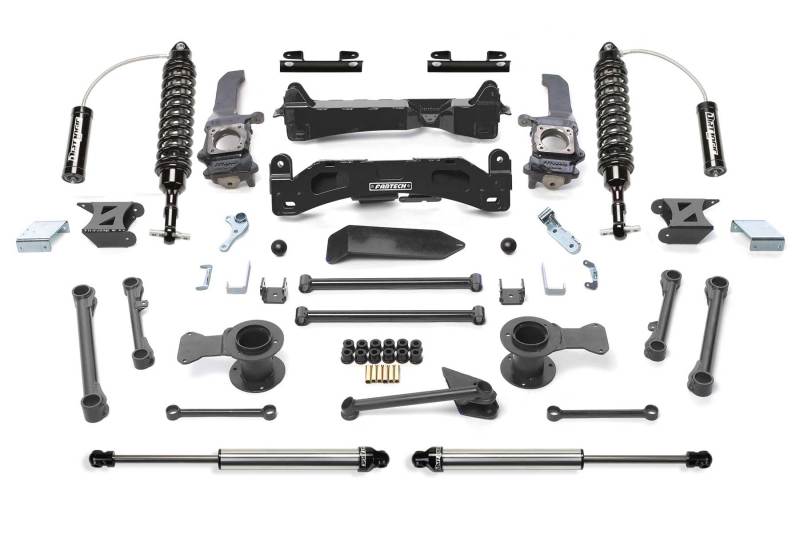

Fabtechs FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35" tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4" thick steel differential skid plate. The Performance system includes Fabtechs Dirt Logic 2.5 Resi Coilover shocks, replacing the stock front strut assemblies. The Performance rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtechs precise suspension geometry.
- Heavy Duty 1/43 Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/43 Thick Steel Skid Plate
- Front Dirt Logic 2.5 Resi Coilovers
- Impact Struts
- Sway Bar links
- Rear Upper & Lower Link Arms
- Rear Coil Spring Spacers
Additional information:
- Lift Lift: 6"
- Drive: 2wd/4wd
- Make: Toyota
- Systems: Performance System
- Model: Fj
- Year: 2010, 2011, 2012, 2013
Tires & Wheels
- Tire Size 35/12.50R17 Wheel Size 17×8 w/ 4 5/8in BS w/minor trimming
Included Shocks:
*Front Dirt Logic 2.5 Resi Coilover
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.53 OD Stainless Steel Body
- 2.253 OD Billet Aluminum Piston
- 7/83 NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/83 Spherical Ball Mounting Ends
- 2.503 OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
*Rear Dirt Logic 2.25 Shock
Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.253 OD Stainless Steel Body
- 2.03 OD Billet Aluminum Piston
- 7/83 NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010 - 2013 | Toyota | FJ Cruiser | Base, Premium |
