Fabtech Suspension Lift Kit
Fabtech Suspension Lift Kit
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Suspension Lift Kit
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Shipping dimensions (L × W × H)
- Shipping weight
- 324.0 lb
- Barcode
- 00674866104006
Billable shipping weight; may include dimensional weight.

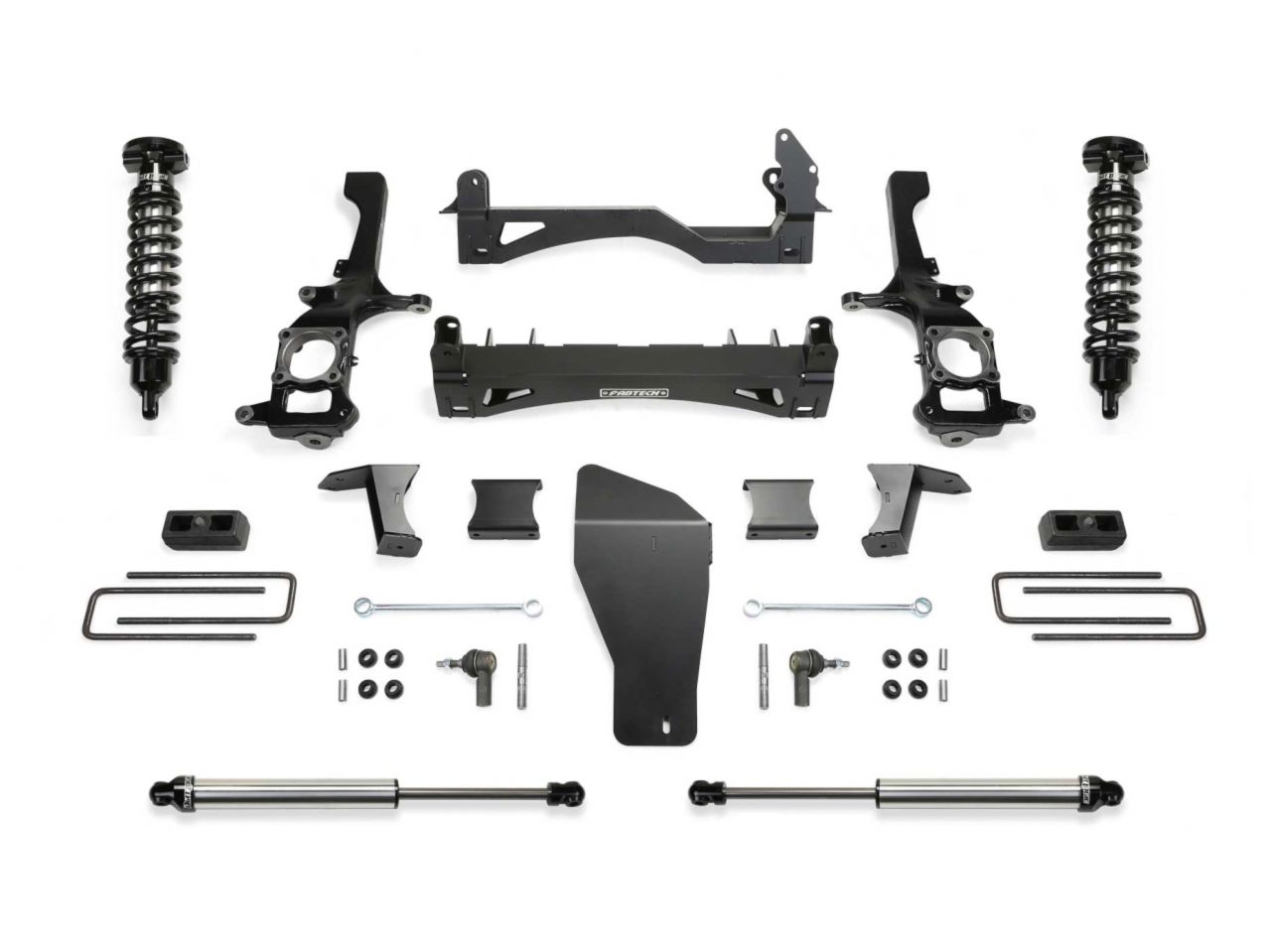

63 Performance System W/ Front Dirt Logic 2.5 Coilovers & Rear Dirt Logic Shocks
The Performance System features Dirt Logic Stainless Steel 2.5 Coilover front shocks and Dirt Logic Stainless Steel 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.
The Nissan XD systems feature Fabtechs proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with a block and u bolt configuration.
- Extended Length Ductile Iron Spindles
- 1/4" Thick High Arched Crossmembers
- Steel Coilover Spacers
- Rear Block & U-bolt Kit
Additional information:
Year: 2016, 2017, 2018
Make: Nissan
Model: Titan Xd
Drive: 4wd
Lift: 6"
Systems: Performance System
Tires & Wheels:
- Tire Size 35/12.50R18 Wheel Size 18×9 w/ 5in BS w/minor trimming
- Tire Size 295/70R18 Wheel Size 18×9 w/ 5in BS w/minor trimming
- Tire Size 35/12.50R20 Wheel Size 20×9 w/ 5in BS w/minor trimming
- Tire Size 295/60R20 Wheel Size 20×9 w/ 5in BS w/minor trimming
Included Shocks:
*Front Dirt Logic 2.5 Coilover
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.53 OD Stainless Steel Body
- 2.253 OD Billet Aluminum Piston
- 7/83 NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/83 Spherical Ball Mounting Ends2
*Rear Dirt Logic 2.25 Shock
Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.253 OD Stainless Steel Body
- 2.03 OD Billet Aluminum Piston
- 7/83 NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017 | Nissan | Titan | SL, Platinum Reserve, SV, PRO-4X, S |
| 2016 - 2018 | Nissan | Titan XD | PRO-4X, Platinum Reserve, SL, S, SV |
