Fabtech Suspension Lift Kit

33 Trail II System W/ Stealth Shocks

This Short Arm system replaces all four lower link arms due to their vulnerability to obstacles during offroad use.

The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .2503 thick wall tubing they are guaranteed not to bend. Fabtechs 5 Ton Joints® are included and come with a lifetime warranty against wearing out. The front adjustable Track Bar and bolt on rear track bar bracket with gusset recenters the axles for the increased ride height.

System includes Fabtechs Standard coil springs for great on and offroad suspension performance.Perfect system for rocks, trail and overland expedition use.

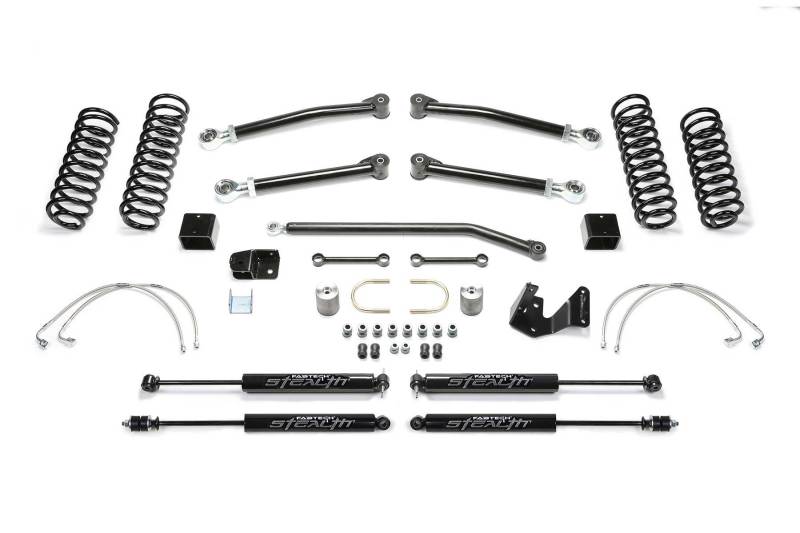

• Front & Rear Short Arm Lower Links
• Standard Front & Rear Coil Springs
• Front Adjustable Track Bar
• Front Sway Bar LInks
• Rear Track Bar Bracket w/Support
• Front & Rear Brake Lines
• E-brake Bracket
• Front Bump Stop Extensions
• Rear Bump Stop Brackets
• Optional Upper Links Available

Additional Information

• Lift: 3"
• Drive: 4wd
• Make : Jeep
• Systems: Trail II System
• Model: Jk
• Year: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Tires & Wheels

Stock Fenders

Tire Size 35/12.50r17 Wheel Size 17x9 W/ 4.5in Bs W/minor Trimming

Tire Size 35/12.50r17 Wheel Size 18x9 W/ 4.5in Bs W/minor Trimming

Tire Size 325/65r18 Wheel Size 18x9 W/ 4.5in Bs W/minor Trimming

Tire Size 35/12.50r20 Wheel Size 20x9 W/ 5in Bs W/minor Trimming

Tire Size 325/60r20 Wheel Size 20x9 W/ 5in Bs W/minor Trimming

Tube Fenders

Tire Size 37/12.50r17 Wheel Size 17x9 W/ 4.5in Bs W/cutting

Tire Size 37/12.50r18 Wheel Size 18x9 W/ 4.5in Bs W/cutting

Tire Size 37/12.50r20 Wheel Size 20x9 W/ 5in Bs W/cutting

Included Shocks

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price. Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

Vehicle Fitments:
