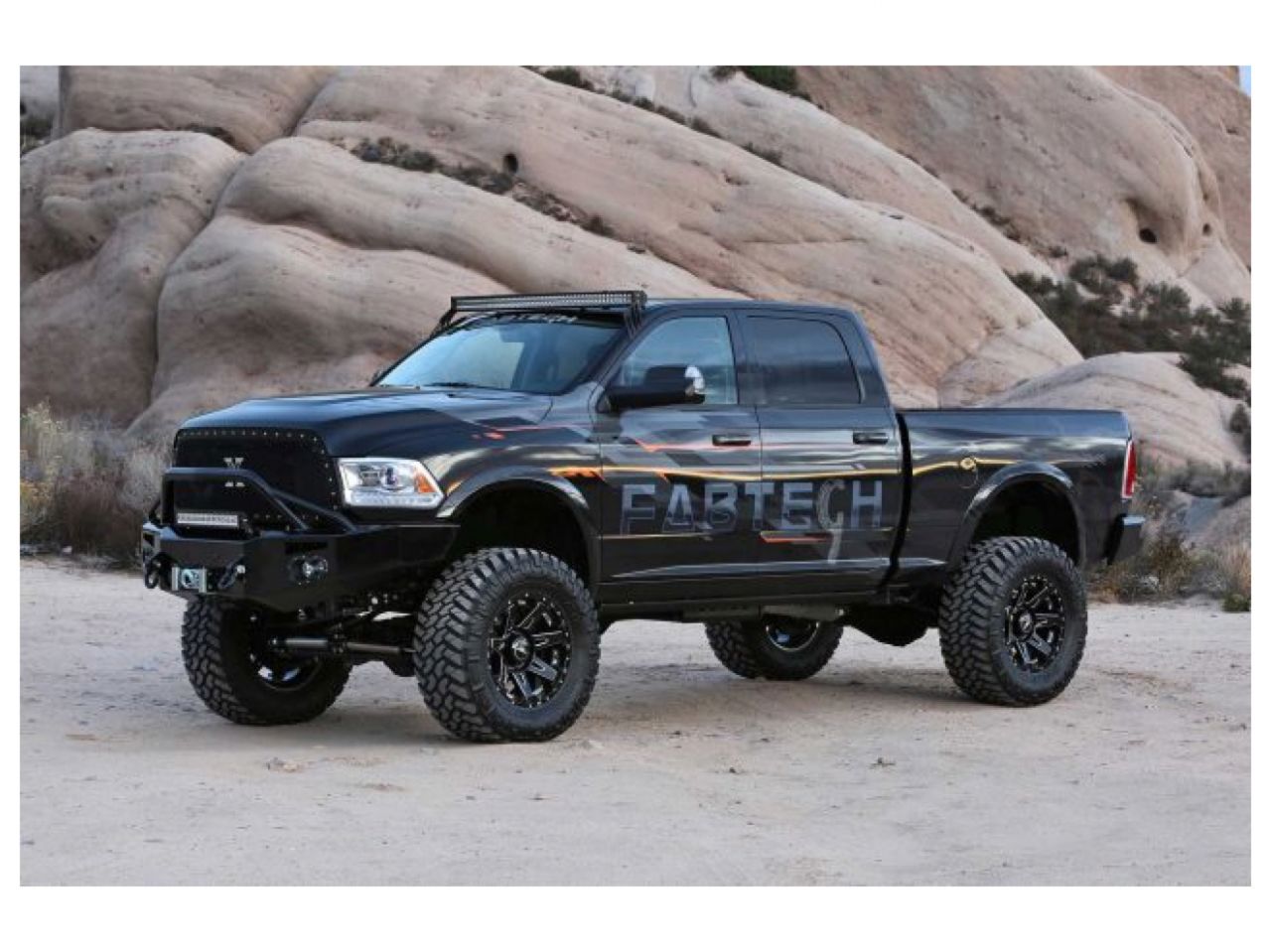

Fabtech Suspension Lift Kit

7″ Radius Arm System W/coil Springs & Front Dual Dirt Logic 2.25 Resi Shocks & Rear Dirt Logic Shocks

Fabtech’s new Coil Spring Suspension Systems for late model Ram 2500 trucks will provide a smoother on road ride than factory with the ability to handle heavy loads and rough offroad use.

As an industry exclusive Fabtech utilizes front coil springs with a straight spring design and patent pending angled lower mounts that produces a very smooth ride compared to stock. The factory springs are a high rate bowed style that naturally rides stiff with an overactive response to varying road conditions. Fabtech’s straight design has a lower spring rate that provides a smoother ride yet still retains the factory carrying capacity of the vehicle when required. No other Ram suspension system can offer this.

The Fabtech rear coil springs on 2500’s are a dual stage design. The first stage provides a supple ride quality when unloaded. The second stage provides the ability to handle factory carrying capacity loads when required giving the best of both worlds.

The combination of Fabtech’s front straight coil springs and rear dual stage coil springs will provide a noticeable ride quality improvement of the vehicle compared to stock.

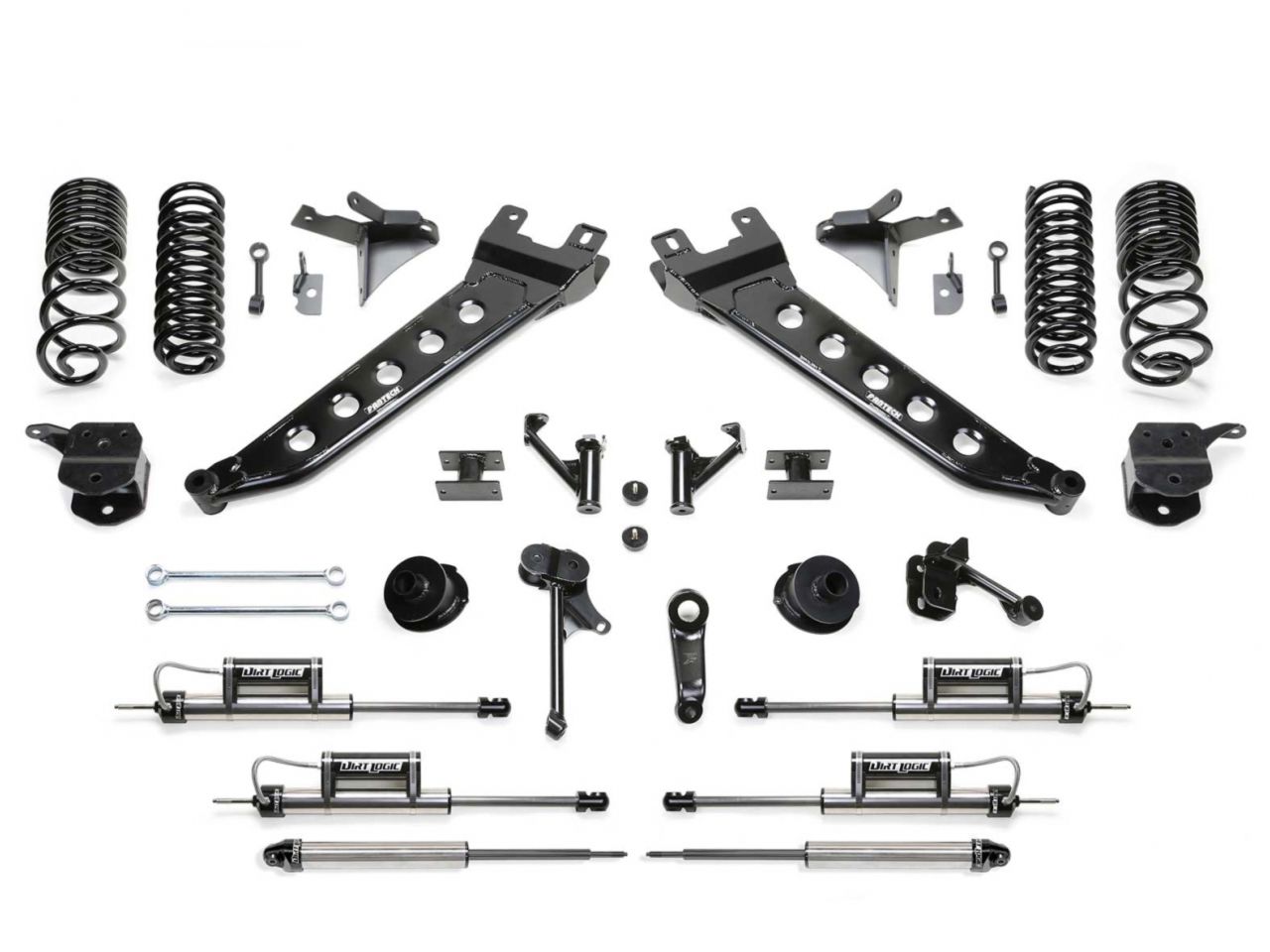

• Front Straight Coil Springs
• Front Angled Spring Mounts
• Fabtech Radius Arms
• Front & Rear Steel Bump Stop Extensions
• Front & Rear Track Bar Brackets
• Pitman Arm
• Rear Dual Rate Coil Springs

Additional Information:

• Year: 2014, 2015, 2016, 2017, 2018
• Make: Ram
• Model: 2500
• Drive: 4wd

Tires & Wheels

Tire Size – 38/13.50r17 Wheel Size – 17×9 W/ 5in Bs W/minor Trimming

Tire Size – 38/13.50r18 Wheel Size – 18×9 W/ 5in Bs W/minor Trimming

Tire Size – 38/13.50r20 Wheel Size – 20×10 W/ 5in Bs W/minor Trimming

Tire Size – 38/13.50r22 Wheel Size – 22×10 W/ 5in Bs W/minor Trimming

Included Shocks:

FRONT DIRT LOGIC 2.25 RESI SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® BlackPiston Rod
• Polyurethane Mounting Ends
• 2.25″ OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends
