Fabtech Suspension Lift Kit

SKU: 1FZ4Y | MPN:  K3156M
Sale price$2,905.49 USD
Sold out

7? Radius Arm System W/coil Springs & Stealth Shocks

Fabtech's new Coil Spring Suspension Systems for late model Ram 2500 trucks will provide a smoother on road ride than factory with the ability to handle heavy loads and rough offroad use.

As an industry exclusive Fabtech utilizes front coil springs with a straight spring design and patent pending angled lower mounts that produces a very smooth ride compared to stock. The factory springs are a high rate bowed style that naturally rides stiff with an overactive response to varying road conditions. Fabtech's straight design has a lower spring rate that provides a smoother ride yet still retains the factory carrying capacity of the vehicle when required. No other Ram suspension system can offer this.

The Fabtech rear coil springs on 2500's are a dual stage design. The first stage provides a supple ride quality when unloaded. The second stage provides the ability to handle factory carrying capacity loads when required giving the best of both worlds.

The combination of Fabtech's front straight coil springs and rear dual stage coil springs will provide a noticeable ride quality improvement of the vehicle compared to stock.

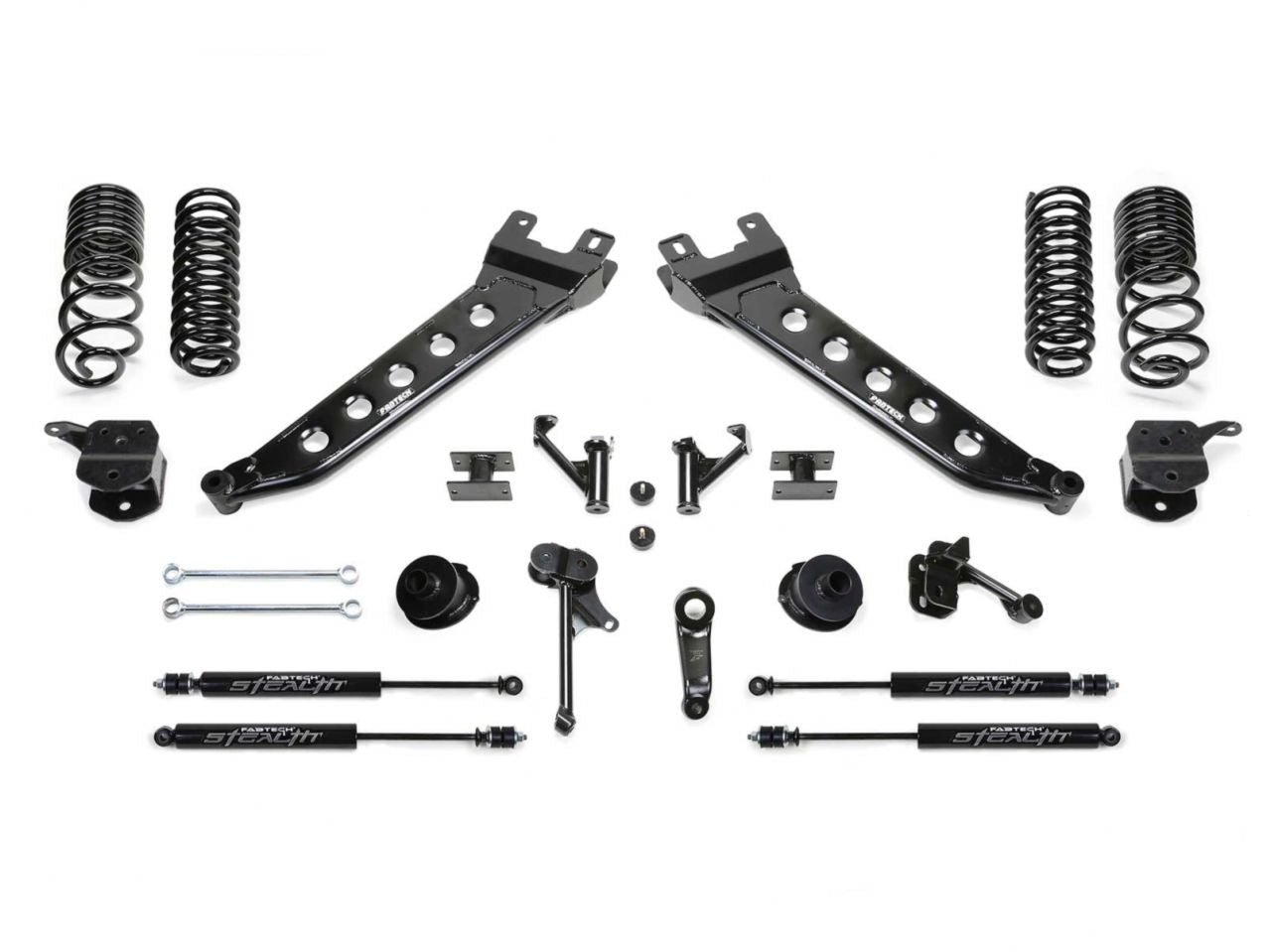

  • Front Straight Coil Springs
  • Front Angled Spring Mounts
  • Fabtech Radius Arms
  • Front & Rear Steel Bump Stop Extensions
  • Front & Rear Track Bar Brackets
  • Pitman Arm
  • Rear Dual Rate Coil Springs

Additional Info.

Year: 2014, 2015, 2016, 2017, 2018
Make: Ram
Model: 2500
Drive: 4wd
Lift: 7"
Systems: Radius Arm System

TIRES & WHEELS

  • Tire Size - 38/13.50R17 Wheel Size - 17×9 w/ 5in BS w/minor trimming
  • Tire Size - 38/13.50R18 Wheel Size - 18×9 w/ 5in BS w/minor trimming
  • Tire Size - 38/13.50R20 Wheel Size - 20×10 w/ 5in BS w/minor trimming
  • Tire Size - 38/13.50R22 Wheel Size - 22×10 w/ 5in BS w/minor trimming

INCLUDED SHOCKS

*STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

  • 50mm OD Seamless Steel Body
  • 46mm High Flow Piston for best ride
  • Vehicle specific valving designed for oversized tires
  • Full floating piston separates gas from oil for a consistent ride
  • 14mm Nitrocarb piston rod resists rock chips and rusting
  • All black finish with raised nameplate as a signature of quality
