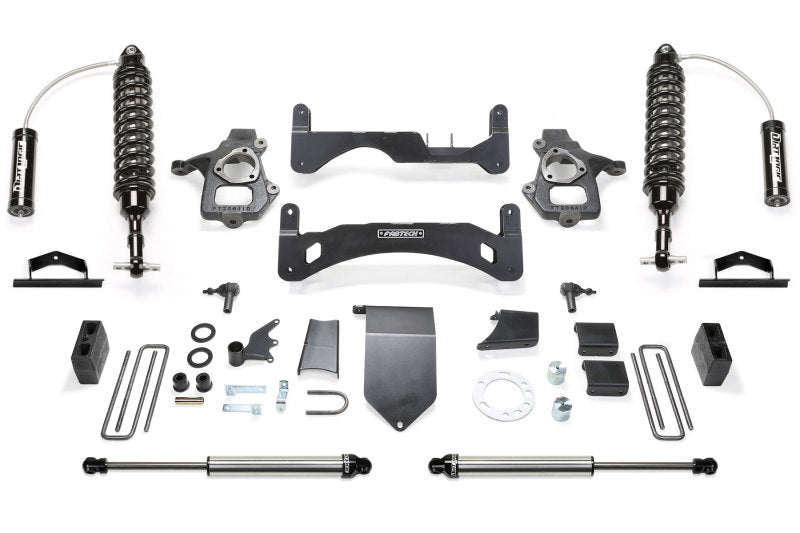

Fabtech Suspension Lift Kit
6? Performance System Gen Ii W/ Front Dirt Logic 2.5 Resi Coiloves & Rear Dirt Logic Shocks
This new Gen II system retains the factory track width keeping the tires under the fenders for a clean appearance. With the factory track width retained the front Sway Bar utilizes the stock end links and mounting holes keeping the leverage on the bar proper. There are no CV spacers, impact struts or add a leafs required for installation. The front differential is relocated in a manner so that when driving at higher 4 wheel drive speeds vibration is reduced.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Rear Block & U-bolt Kit
TIRES & WHEELS
- Tire Size - 35/12.50R17 Wheel Size - 17×8 w/ 5in BS w/minor trimming
- Tire Size - 325/65R18 Wheel Size - 18×9 w/ 5in BS w/minor trimming
- Tire Size - 35/12.50R20 Wheel Size - 20×9 w/ 5in BS w/minor trimming
INCLUDED SHOCKS
* FRONT DIRT LOGIC 2.5 RESI COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
- 2.50? OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
* REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2016 | Chevrolet | Silverado 1500 | Base |
| 2016 - 2018 | Chevrolet | Silverado 1500 | Custom |
| 2015 - 2018 | Chevrolet | Silverado 1500 | LS, SSV |
| 2014 - 2018 | Chevrolet | Silverado 1500 | WT, LTZ, LT, High Country |
| 2014 - 2018 | GMC | Sierra 1500 | Base, SLT, SLE, Denali |
