Fabtech Suspension Lift Kit
Fabtech Suspension Lift Kit
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Suspension Lift Kit
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 397.52 lb
- Barcode
- 00674866095618
Billable shipping weight; may include dimensional weight.

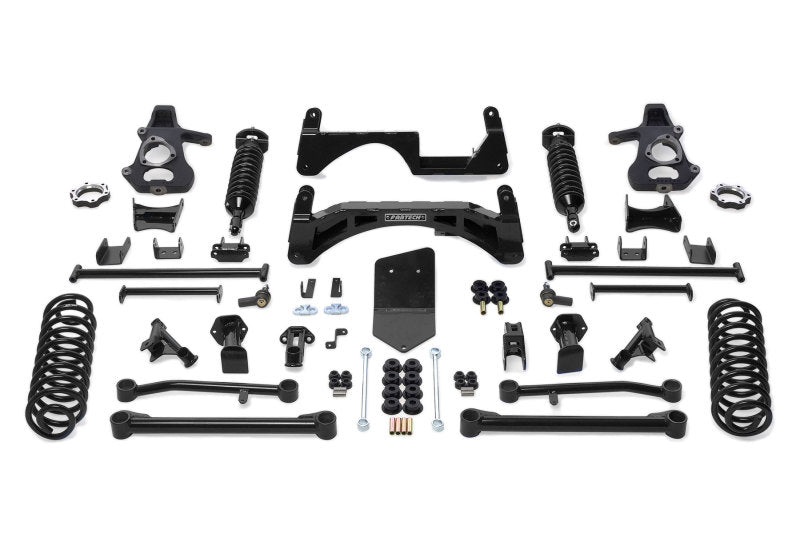

6" Performance System w/ front Dirt Logic 2.5 Coilovers & Rear Dirt Logic Shocks
Fabtech has developed this system with our proven one piece high arched lower crossmember design. An integrated differential skid plate adds solid support of the front suspension. Special attention was given to the design of replacement extended length steering knuckles to keep the track width of the vehicle near stock while retaining turning radius for easy maneuverability in tight areas. The rear system features extended length tubular upper and lower link arms with an oversized Trac bar relocation bracket to properly place the axle under the vehicle with zero driveline vibration. Model specific rear coil springs maintain proper ride height. The Performance System includes front Dirt Logic 2.5 coilovers for superior offroad damping, while providing a supple highway ride. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Impact Struts
- Track Bar Relocation Bracket
- Rear Extended Length Tubular Upper & Lower Link Arms
- Rear Coil Springs
Additional Information:
MAKE: GM
MODEL: C1500 SUT, C1500 SUV, K1500 SUT, K1500 SUV
DRIVE: 2WD, 4WD
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
SYSTEMS: PERFORMANCE SYSTEM
LIFT: 6"
Included Shocks:
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2013 | Chevrolet | Avalanche | Base |
| 2013 | Chevrolet | Avalanche | Black Diamond LT, Black Diamond LS, Black Diamond LTZ |
| 2007 - 2012 | Chevrolet | Avalanche | LTZ, LS, LT |
| 2007 - 2012 | Chevrolet | Suburban 1500 | Base |
| 2007 - 2013 | Chevrolet | Suburban 1500 | LTZ, LS, LT |
| 2007 | Chevrolet | Suburban 1500 | Z71 |
| 2007 - 2012 | Chevrolet | Tahoe | Base |
| 2008 - 2013 | Chevrolet | Tahoe | Hybrid |
| 2007 - 2014 | Chevrolet | Tahoe | LS, LTZ, LT |
| 2012 - 2014 | Chevrolet | Tahoe | PPV, SSV |
| 2008 - 2009 | Chevrolet | Tahoe | Z71 |
| 2007 - 2012 | GMC | Yukon | Base |
| 2010 - 2013 | GMC | Yukon | Denali Hybrid |
| 2007 - 2014 | GMC | Yukon | Denali, SLT, SLE |
| 2008 - 2013 | GMC | Yukon | Hybrid |
| 2007 - 2013 | GMC | Yukon XL 1500 | SLT, Denali, SLE |
