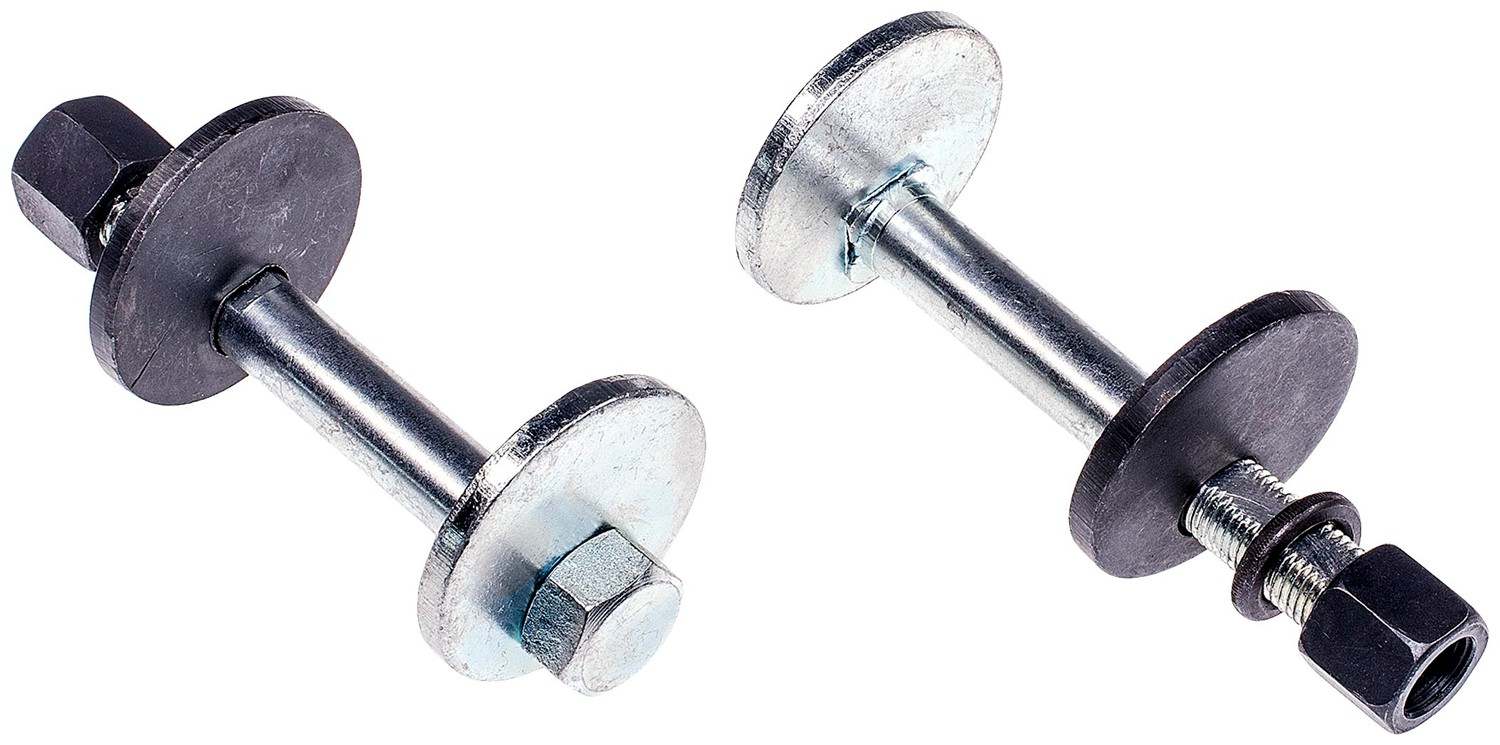

Dorman Suspension Control Arm Bolt

Suspension Control Arm Bolt

Application Summary: Chrysler 1993-71, Chrysler 1966-59, General Motors 1982-62

This alignment cam bolt kit is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.

• Direct replacement - fits and performs like the original equipment on specific vehicles
• Reliable fit - precision-engineered to match the design and dimensions of original components
• Durable construction - manufactured to strict standards using sturdy, safe materials
• Rigorously tested - thorough quality control measures ensure longevity

Product Specifications

Adjustment Range: +/- 1.125 Deg.

Adjustment Type: Manual

Bolt Grade: 10.9

Bolt Length: 100 mm

Bolt Thread Diameter: 12 mm

Bolt Thread Pitch: 1.75 mm

Bushing Material: None

Cam Maximum Width: 45 mm Diameter

Cam Thickness: 4.6 mm

Color: Yellow

Grease Fitting Included: Not Required

Mount Hole Diameter: 12 mm

Mount Hole Quantity: 1

Mount Stud Quantity: 0

Nut Included: Yes

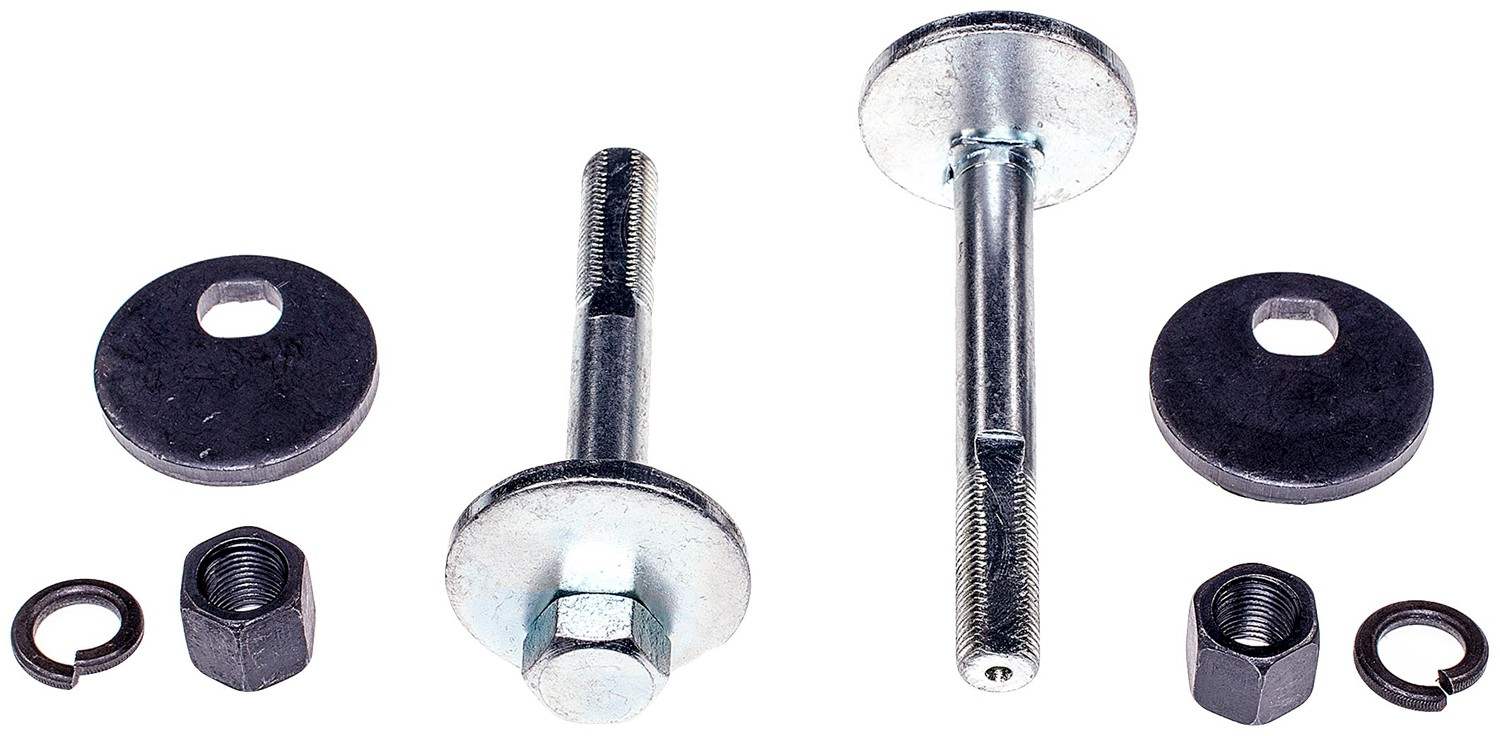

Package Contents: 1 Bolt, 2 Cams, Lock Washer and Nut

Package Quantity: 1

Packaging Type: Box

Selling Package Quantity UOM: Piece

Thread Length: 35 mm

Washer Color: Yellow

Washer Included: Yes

Washer Material: Steel

Vehicle Fitments:
