Dorman Suspension Ball Joint

Suspension Ball Joint

Application Summary: Hyundai Santa Fe 2012-01, Kia Sorento 2013-11

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Product Specifications

Adjustable: No

Attachment Type: Taper

Bearing Material: Polymer

Bolts/Studs Included: No

Castle Nut Included: No

Cotter Pin Hole: No

Dust Boot Material: Rubber

Grade Type: Regular

Greasable: No

Housing Press Fit Diameter: 42.9 mm

Material: Steel

Mounting Hardware Included: Yes

Mounting Hole Quantity: 0

Mounting Type: Pressed

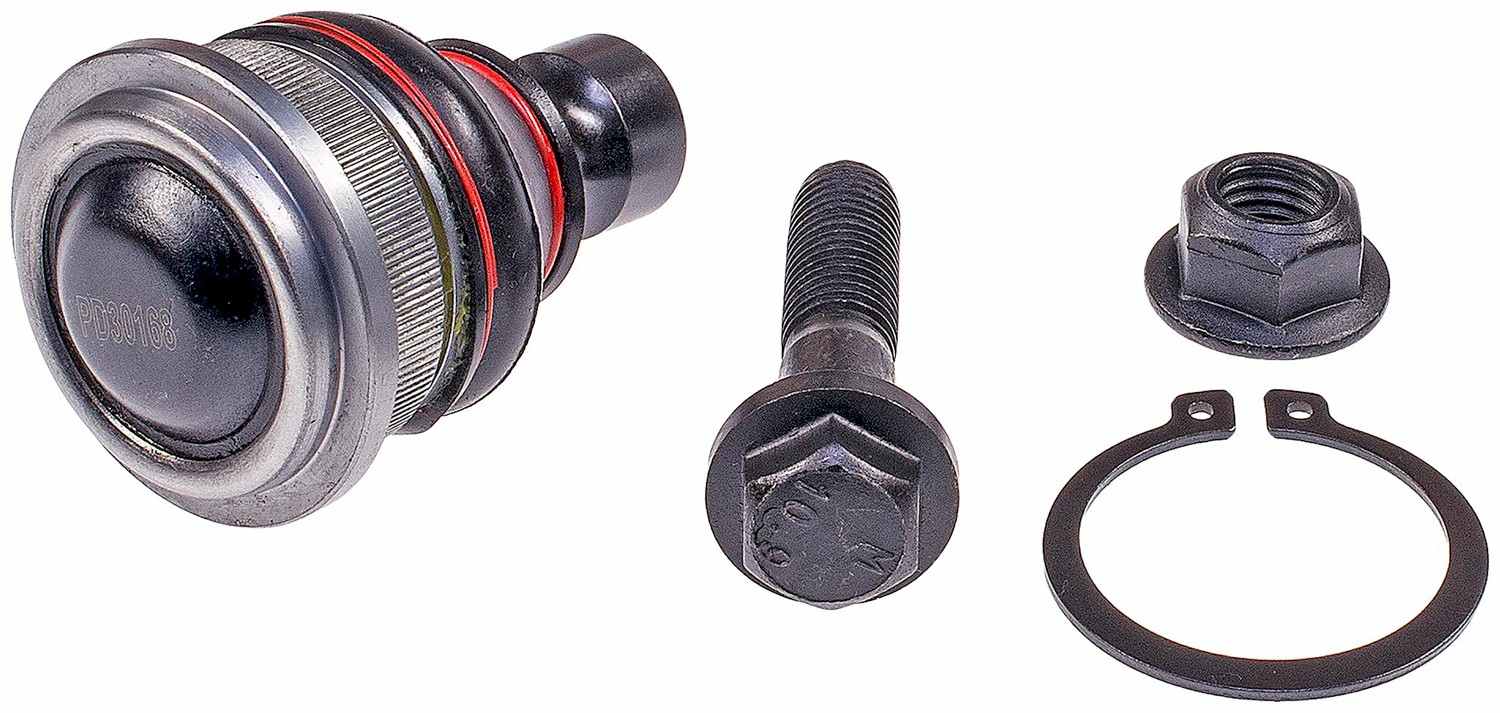

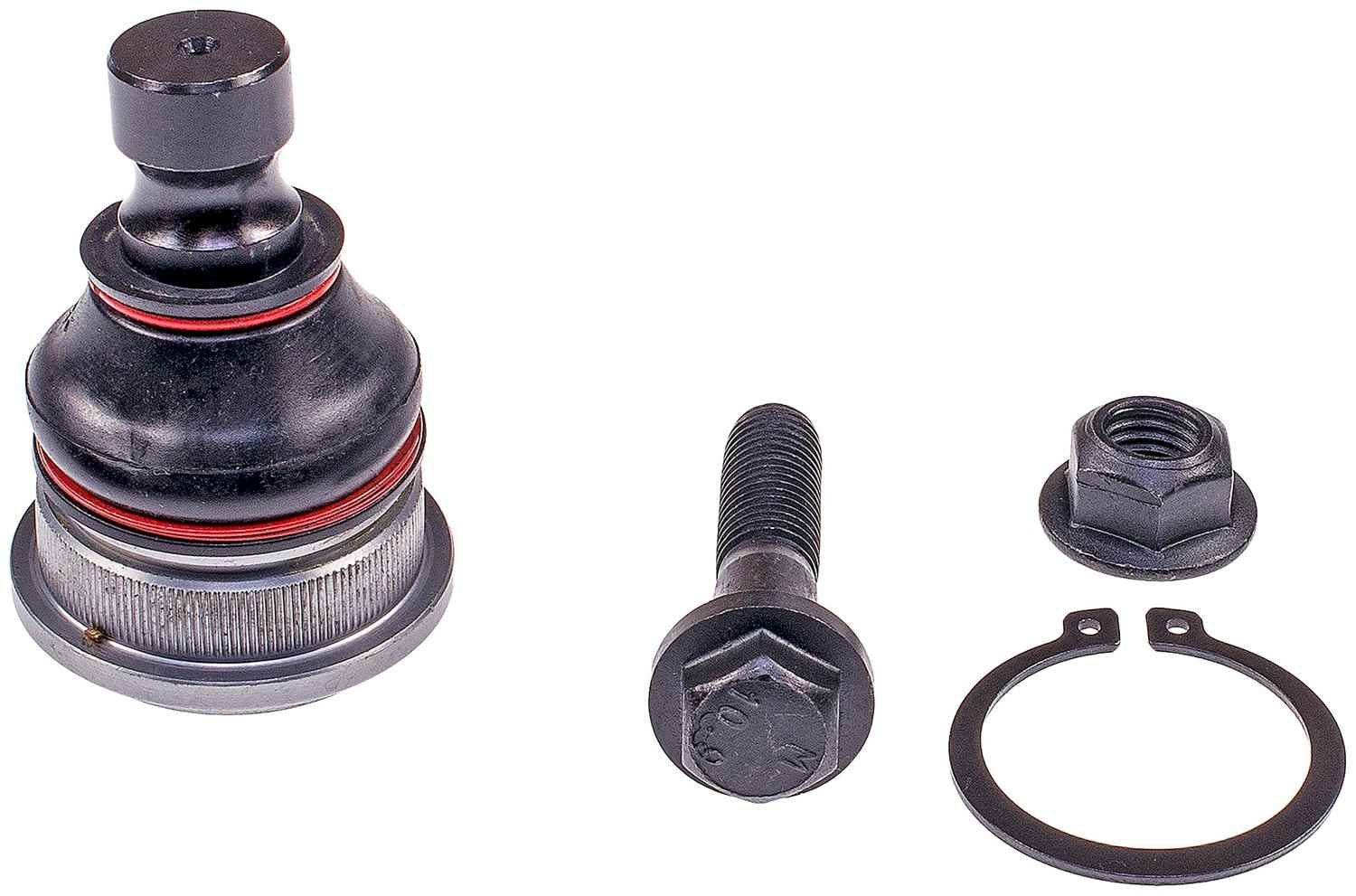

Package Contents: 1 Ball Joint; 1 Bolt; 1 Nut; 1 Retaining Ring

Package Quantity: 1

Packaging Type: Box

Stud Thread Diameter: 20 mm

Stud Type: Pinch Bolt

Thread Pitch: 0 mm

Brand: Dorman - Premium XL

Vehicle Fitments:
