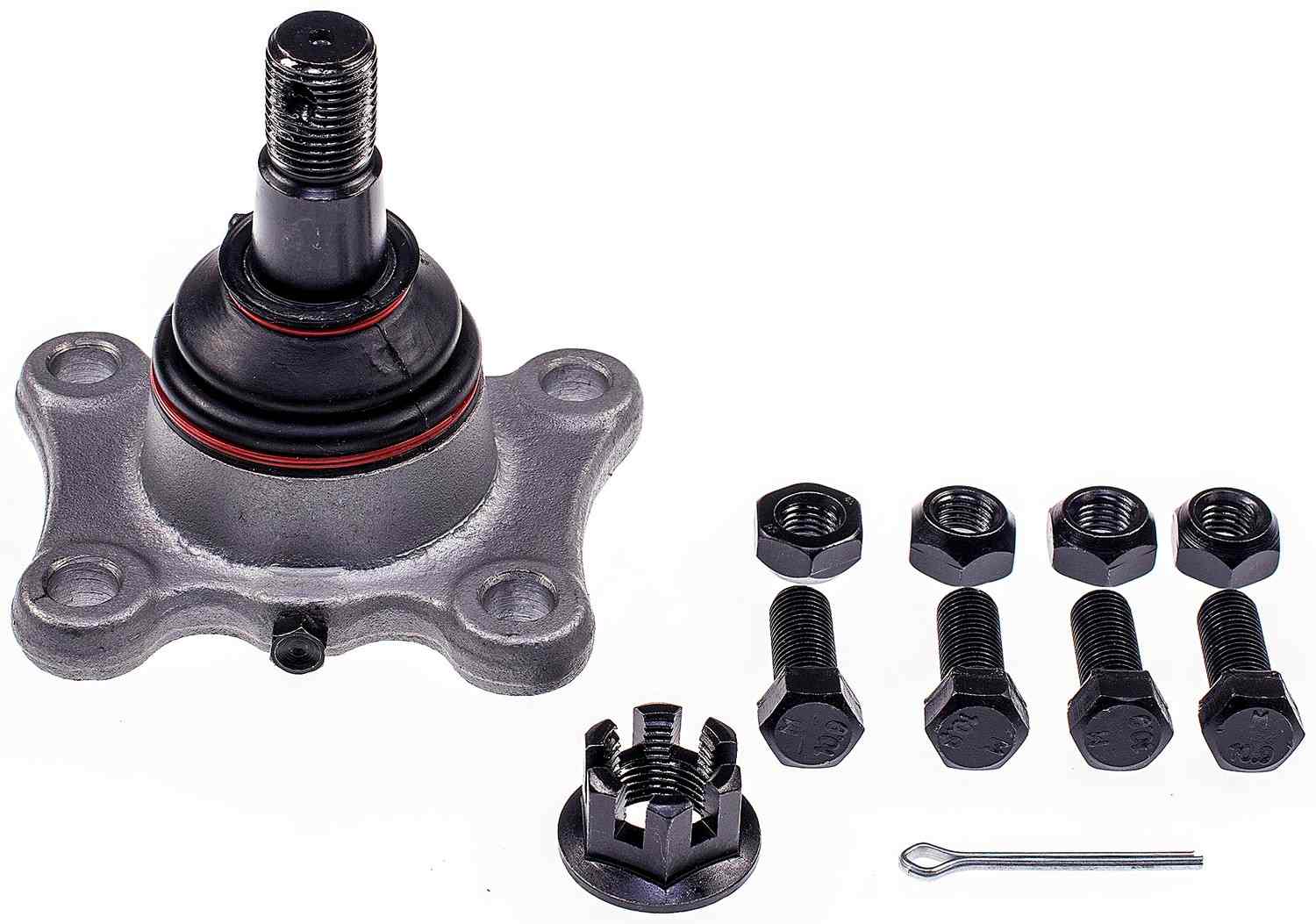

Dorman Suspension Ball Joint

Suspension Ball Joint

Application Summary: Toyota 4Runner 1995-89, Toyota Pickup 1995-89, Toyota T100 1998-93

This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Product Specifications

• Adjustable: No
• Attachment Type: Taper
• Bearing Material: Metal
• Castle Nut Included: Yes
• Cotter Pin Hole: Yes
• Dust Boot Material: Polychloroprene
• Grade Type: Premium
• Greasable: Yes
• Housing Press Fit Diameter: 53.5 mm
• Material: Steel
• Mounting Hardware Included: Yes
• Mounting Hole Quantity: 4
• Mounting Type: Bolt On
• Package Contents: Ball Joint, Castle Nut, Cotter Pin, 4 Bolts, 4 Nuts
• Package Quantity: 1
• Packaging Type: Box
• Stud Thread Diameter: M16
• Stud Type: Taper
• Thread Pitch: 1.5
• Brand: Dorman - Premium XL
