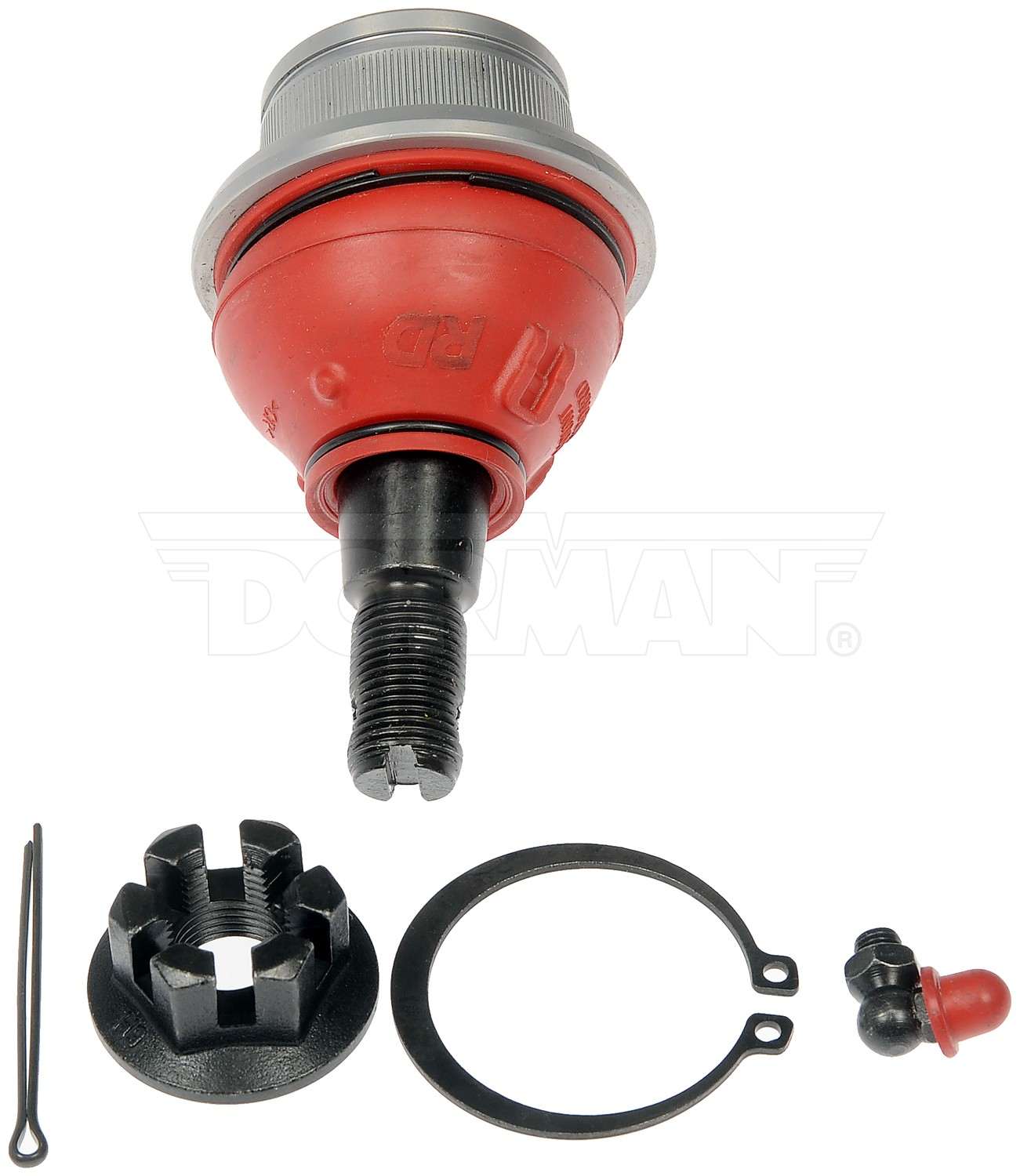

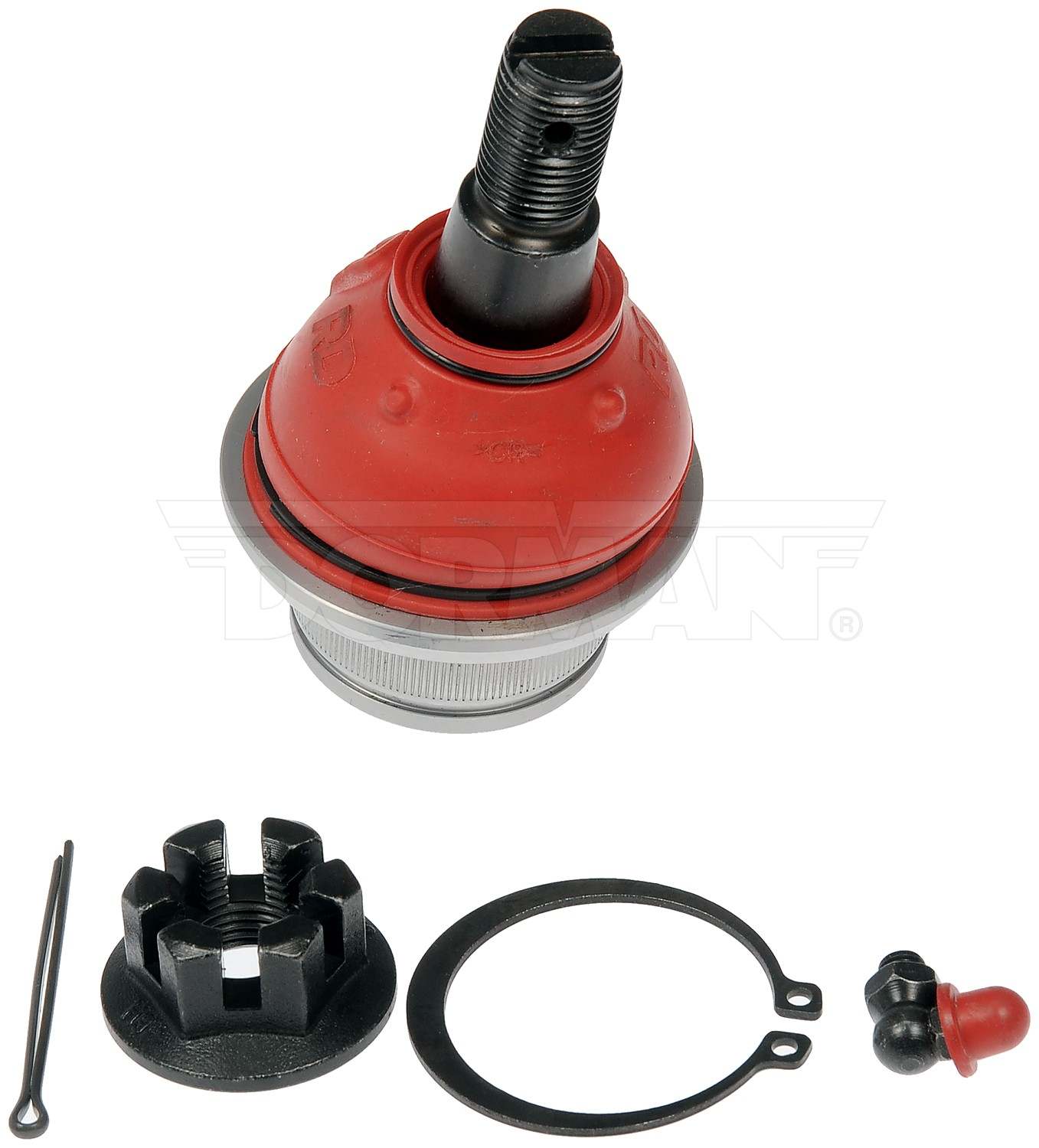

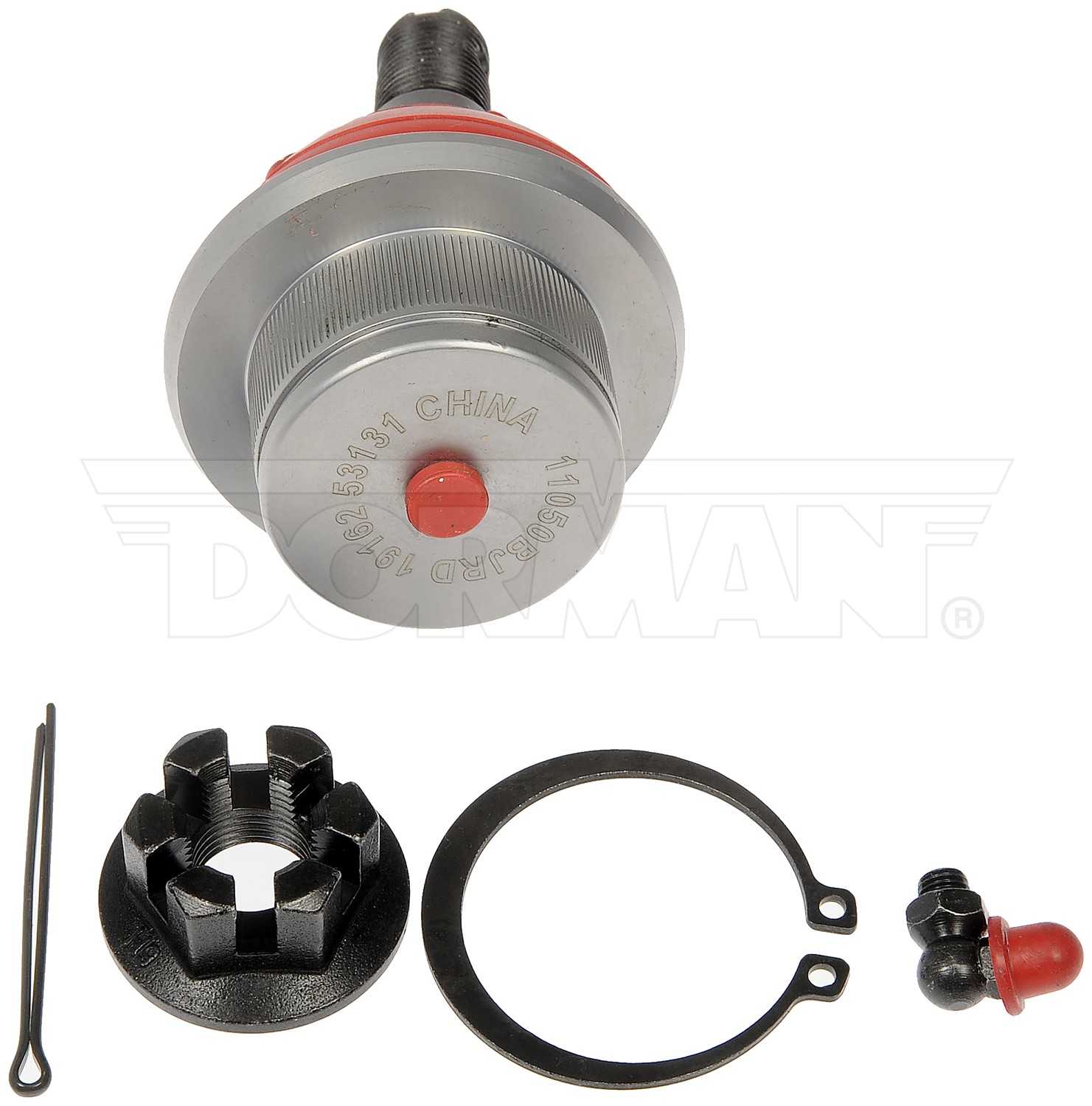

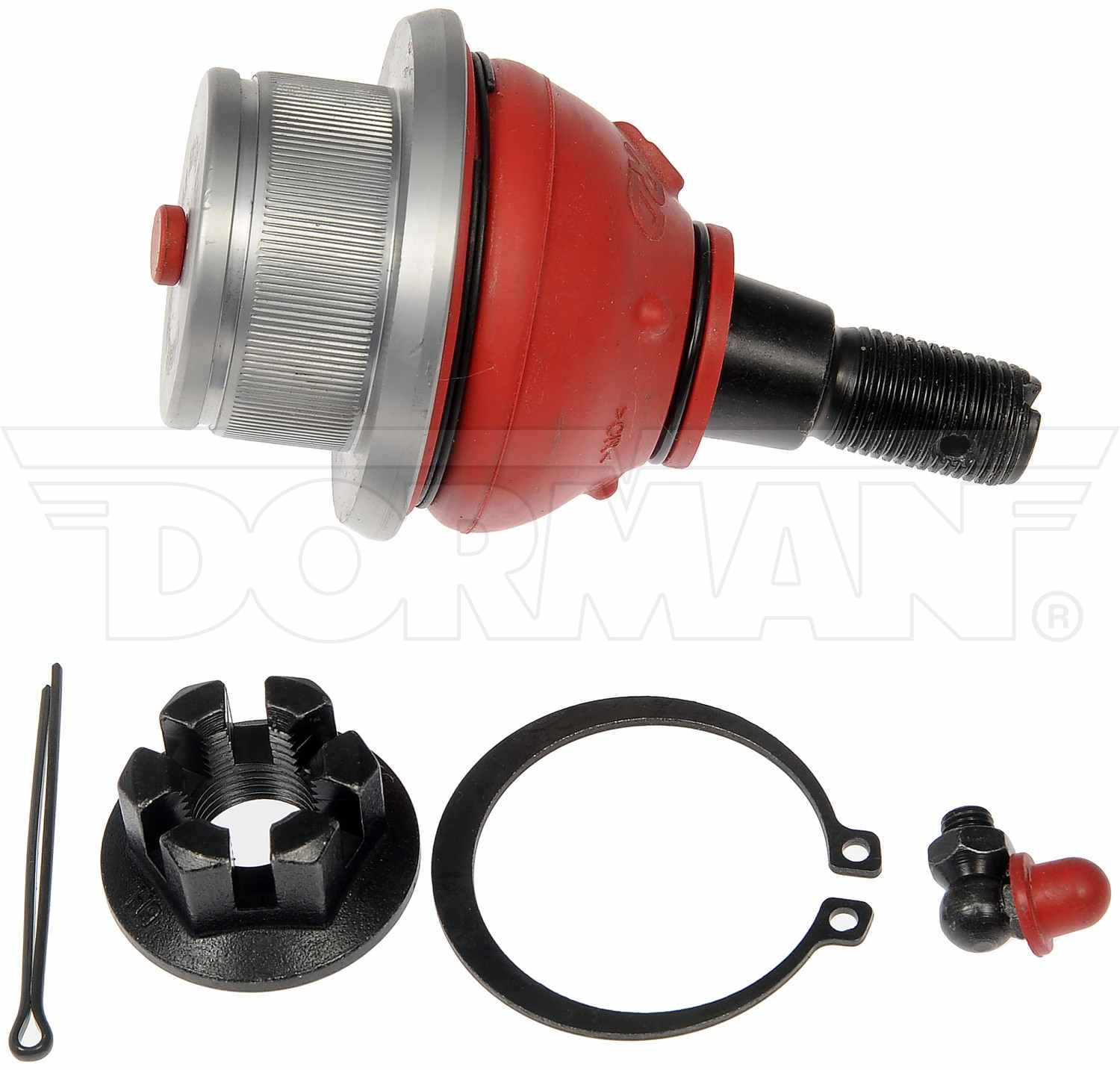

Dorman Suspension Ball Joint

This rugged duty ball joint is built for maximum load absorption and durability. Featuring a hardened ball stud with a highly polished ball, a serviceable integrated bearing, I.C.E. synthetic grease and premium corrosion resistance.
- Rugged-duty construction - this ball joint is built with features to maximize absorption and durability for hard-working vehicles
- Superior ball stud - hardened ArmourGrade stud with large, highly polished ball
- Greaseable integrated bearing - serviceable IntegraFit bearing pre-loaded with I.C.E. synthetic grease
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Application Summary: Cadillac 2016-02, Chevrolet 2016-99, GMC 2016-99
Product Specifications
- Adjustable: No
- Attachment Type: Pressed
- Bearing Material: Metal
- Castle Nut Included: Yes
- Cotter Pin Hole: Yes
- Dust Boot Material: Polychloroprene
- Grade Type: Premium
- Greasable: Yes
- Housing Press Fit Diameter: 44.6 mm
- Material: Steel
- Mounting Hardware Included: Yes
- Mounting Hole Quantity: 0
- Mounting Type: Threaded
- Package Contents: Ball Joint; Castle Nut; Cotter Pin; Zerk Fitting; Retaining Ring
- Package Quantity: 1
- Packaging Type: Box
- Stud Thread Diameter: 16 mm
- Stud Type: Taper
- Thread Pitch: 1.5 mm
- Brand: Dorman - Premium RD
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2002 - 2016 | Cadillac | Escalade | Base |
2009 - 2013 | Cadillac | Escalade | Hybrid |
2010 - 2013 | Cadillac | Escalade | Hybrid Platinum |
2008 - 2016 | Cadillac | Escalade | Platinum |
2011 - 2016 | Cadillac | Escalade | Premium, Luxury |
2012 | Cadillac | Escalade | Special Edition |
2003 - 2016 | Cadillac | Escalade ESV | Base |
2008 - 2016 | Cadillac | Escalade ESV | Platinum |
2011 - 2016 | Cadillac | Escalade ESV | Premium, Luxury |
2012 | Cadillac | Escalade ESV | Special Edition |
2002 - 2013 | Cadillac | Escalade EXT | Base |
2011 - 2013 | Cadillac | Escalade EXT | Luxury, Premium |
2007 - 2013 | Chevrolet | Avalanche | Base |
2013 | Chevrolet | Avalanche | Black Diamond LTZ, Black Diamond LT, Black Diamond LS |
2007 - 2012 | Chevrolet | Avalanche | LTZ, LS, LT |
2002 - 2006 | Chevrolet | Avalanche 1500 | LT, Base, Z71, LS |
2002 - 2003 | Chevrolet | Avalanche 1500 | On Road Edition, North Face |
2003 | Chevrolet | Avalanche 1500 | WBH |
2004 - 2006 | Chevrolet | Avalanche 1500 | Z66 |
2007 - 2009 | Chevrolet | Cheyenne | Base |
2010 - 2016 | Chevrolet | Cheyenne | Cheyenne |
2010 | Chevrolet | Cheyenne | LTZ |
2003 - 2014 | Chevrolet | Express 1500 | LS, Base |
2006 - 2014 | Chevrolet | Express 1500 | LT |
2003 - 2005 | Chevrolet | Express 2500 | LS, Base |
2009 - 2014 | Chevrolet | Express Cargo | Base |
2009 - 2014 | Chevrolet | Express Pasajeros | Base |
2002 - 2016 | Chevrolet | Silverado 1500 | Custom, WT |
2014 - 2016 | Chevrolet | Silverado 1500 | High Country |
2004 - 2013 | Chevrolet | Silverado 1500 | Hybrid |
1999 - 2016 | Chevrolet | Silverado 1500 | LS, LT, Base |
2007 - 2016 | Chevrolet | Silverado 1500 | LTZ |
2003 - 2006 | Chevrolet | Silverado 1500 | SS |
2015 - 2016 | Chevrolet | Silverado 1500 | SSV |
2010 - 2013 | Chevrolet | Silverado 1500 | XFE |
2004 | Chevrolet | Silverado 1500 | Z71 |
2007 | Chevrolet | Silverado 1500 Classic | LT, WT, LS, Hybrid, SS |
2000 - 2006 | Chevrolet | Sonora | Base |
2000 - 2002 | Chevrolet | Sonora | LT, LS |
2016 | Chevrolet | Suburban | HD |
2015 - 2016 | Chevrolet | Suburban | LS, LTZ |
2014 - 2016 | Chevrolet | Suburban | LT |
2000 - 2012 | Chevrolet | Suburban 1500 | Base |
2000 - 2014 | Chevrolet | Suburban 1500 | LT, LS |
2006 - 2014 | Chevrolet | Suburban 1500 | LTZ |
2004 - 2007 | Chevrolet | Suburban 1500 | Z71 |
2000 - 2012 | Chevrolet | Tahoe | Base |
2008 - 2013 | Chevrolet | Tahoe | Hybrid |
2000 | Chevrolet | Tahoe | Limited |
2000 - 2016 | Chevrolet | Tahoe | LS, Z71, LT |
2007 - 2016 | Chevrolet | Tahoe | LTZ |
2012 - 2016 | Chevrolet | Tahoe | PPV, SSV |
2003 - 2014 | GMC | Savana 1500 | Base |
2006 - 2014 | GMC | Savana 1500 | LS, LT |
2009 - 2013 | GMC | Savana 1500 | SL |
2003 - 2013 | GMC | Savana 1500 | SLE |
2003 - 2005 | GMC | Savana 2500 | Base, SLE |
2014 - 2015 | GMC | Sierra | All Terrain |
2007 - 2016 | GMC | Sierra | Base |
2008 - 2016 | GMC | Sierra | Denali |
2014 | GMC | Sierra | SLT, SLE |
2001 | GMC | Sierra 1500 | C3 |
2002 - 2016 | GMC | Sierra 1500 | Denali, Base |
2002 | GMC | Sierra 1500 | HT |
2005 - 2013 | GMC | Sierra 1500 | Hybrid |
1999 - 2013 | GMC | Sierra 1500 | SL |
1999 - 2016 | GMC | Sierra 1500 | SLE, SLT |
2002 - 2013 | GMC | Sierra 1500 | WT |
2010 - 2013 | GMC | Sierra 1500 | XFE |
2007 | GMC | Sierra 1500 Classic | SL, SLT, Denali, WT, Hybrid, SLE |
2007 - 2012 | GMC | Yukon | Base |
2010 - 2013 | GMC | Yukon | Denali Hybrid |
2008 - 2013 | GMC | Yukon | Hybrid |
2006 | GMC | Yukon | SL |
2000 - 2016 | GMC | Yukon | SLE, SLT, Denali |
2015 - 2016 | GMC | Yukon XL | SLE, Denali, SLT |
2001 - 2014 | GMC | Yukon XL 1500 | Denali |
2006 | GMC | Yukon XL 1500 | SL |
2000 - 2014 | GMC | Yukon XL 1500 | SLE, SLT |
