Supertech Forged 4032 Aluminum Pistons Miata B6 78.50mm
Supertech pistons are designed using CAD software and Finite Element Analysis to create a strong structural, high performance, yet lightweight pistons for each application.
These pistons are manufactured in Argentina with European technology. Supertech uses an enhanced 4032 alloy with extruded high silicon. Additional copper, nickel, and magnesium is added to prevent thermal expansion, produce excellent wear characteristics, and increase thermal conductivity.
The forging is a 2 to 3 step process that yields a fine structural grain orientated in fibers in the same direction of the stresses. Several heat treatments provide the piston with high tensile strength that is evenly distributed.
The surface of each piston are coated with a phosphate dry lubricant to protect the rings from micro welding to the pistons and enhance the lubrication of the skirt/cylinder area.

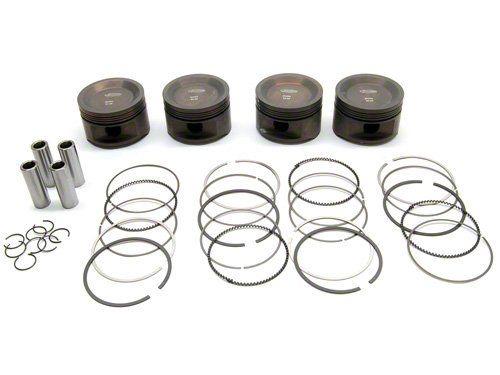

Note: Pictures may not be actual product.
Specs:
- Bore: 78.50mm
- Oversize: +0.5mm
- Comp. Ratio: 8.8:1
- Dome/Dish CC's: -11
- Head CC's: 36
- Comp. Height: 1.260'' (32mm)
- Stroke: 3.287"
- Skirt Style: R
- Rod Length: 5.228"
- Pin Diam.: 20mm (.787")
- Weight (grams): 353
- Ring P/N: GNH7850
- Application: N/T
NOTE: T (Turbo) / N (Nitrous) / A (Naturally Aspirated) / R (Round) / X (Slipper style)
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1995 - 1996 | Ford | Escort | Equi, Aust, Mid |
| 1995 | Ford | Escort | GT Equippe |
| 1991 - 1996 | Ford | Escort | GT, LX, Base |
| 1994 | Ford | Escort | Lujo |
| 1991 - 1995 | Ford | Escort | LX Sport |
| 1992 - 1993 | Ford | Escort | LX-E |
| 1993 - 1996 | Ford | Escort | Sport |
| 1999 | Mazda | Miata | 10th Anniversary |
| 1990 - 2005 | Mazda | Miata | Base |
| 1993 | Mazda | Miata | LE |
| 2000 - 2005 | Mazda | Miata | LS |
| 1994 - 1997 | Mazda | Miata | M Edition |
| 2004 - 2005 | Mazda | Miata | Mazdaspeed |
| 1991 - 2003 | Mazda | Miata | SE |
| 2003 | Mazda | Miata | Shinsen |
| 1997 | Mazda | Miata | STO |
