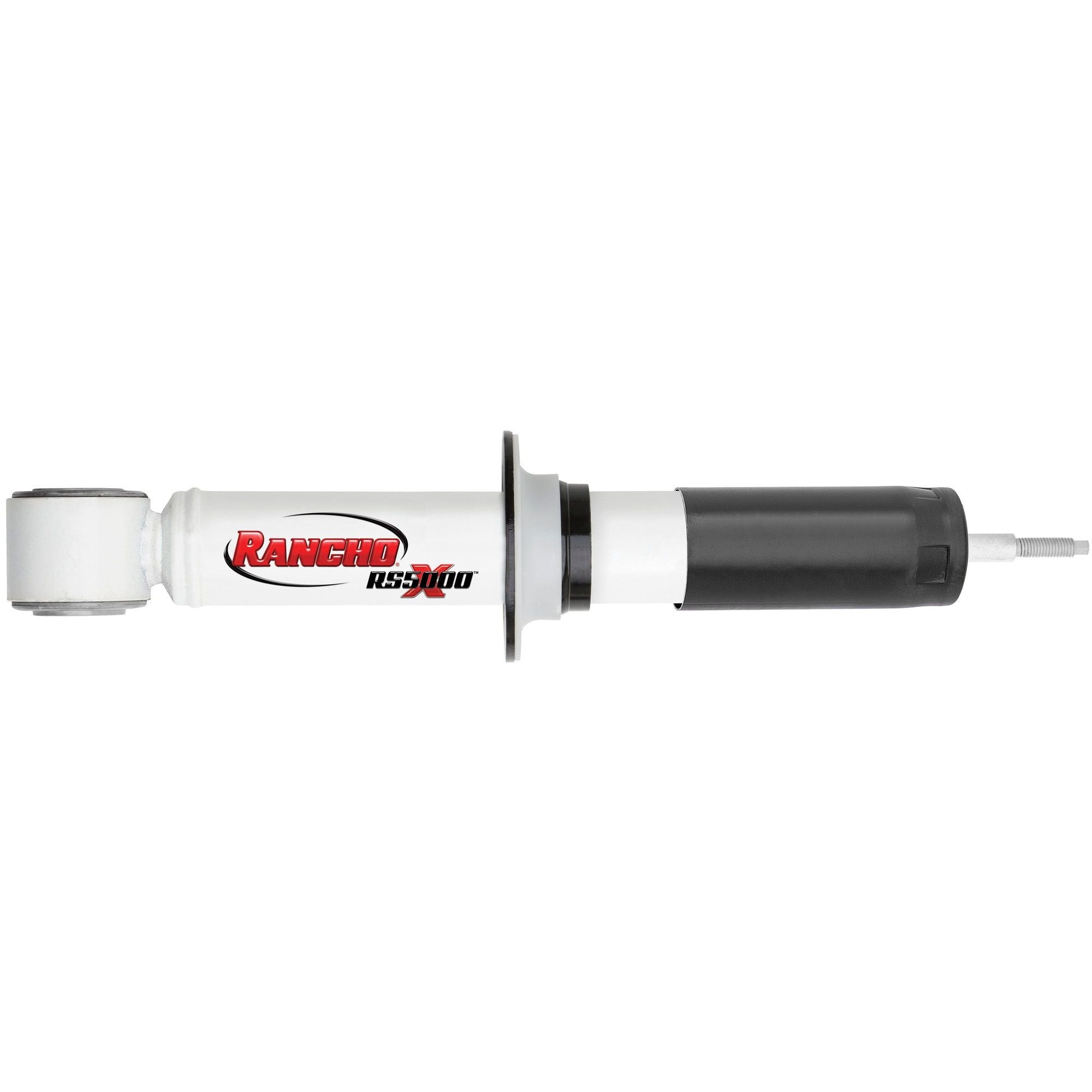

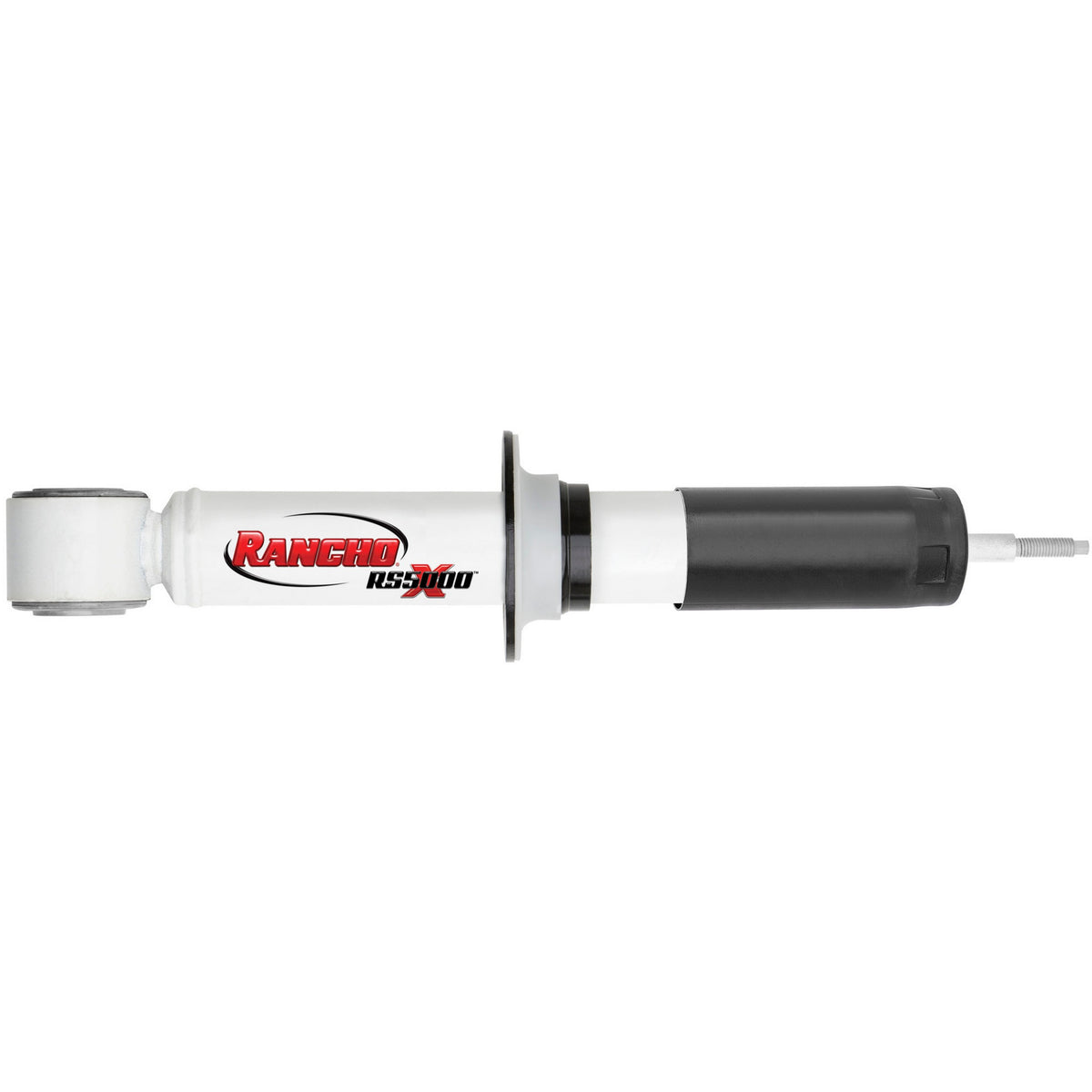

Read the shipping policyRANCHO RS5000X STRUT
The core of this new and innovative shock from Rancho® is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road.
FEATURES:
Progressive Engagement Valving
Tuned Compression Control Valve
Enlarged 2-1/4-inch Twin Tube Body
Gas Pressurization of Shock
Full-Displaced 35 mm Bore
1-3/8-inch Diameter Sintered Iron Piston
Rebound Bumper
Black, Natural Rubber Bushings
Low-Friction, Self-Lubricating Seal
Protective Boot
Glass-Filled, Fluon Banded Piston
Double-Welded Loops
Specifications:
- COMPRESSED LENGTH: 13.50
- EXTENDED LENGTH: 16.18
- TRAVEL LENGTH: 2.68
- BODY TYPE: SS3
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996 - 2001 | Toyota | 4Runner | Base |
| 1996 - 2002 | Toyota | 4Runner | SR5, Limited |
| 1995 - 2004 | Toyota | Tacoma | Base |
| 1995 - 2003 | Toyota | Tacoma | DLX |
| 1998 - 2000 | Toyota | Tacoma | Limited |
| 1998 - 2004 | Toyota | Tacoma | Pre Runner |
| 2001 - 2004 | Toyota | Tacoma | S-Runner |
| 1995 - 2000 | Toyota | Tacoma | SR5 |
