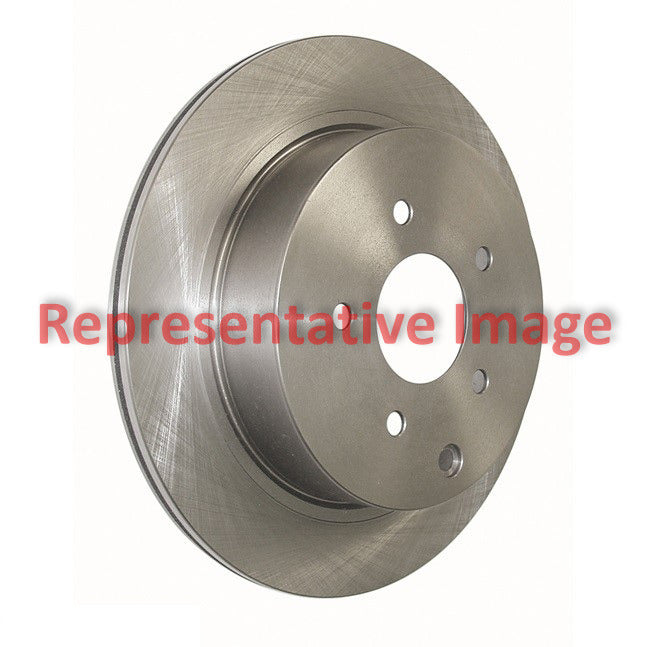

StopTech Aerorotor Ring Including Hardware Right 328X28 Slotted

StopTech AeroRotor Rings

The patented 2-piece AeroRotor assembly uses uniquely designed and patented AeroVanes® inside the disc to optimize airflow through the rotor. This improved directional design minimizes turbulence and flows up to 61 percent more air than any other rotor tested. The result is up to 80 percent better airflow over original equipment rotors and 10-30 percent better airflow than other directional vane racing rotors currently available. Better airflow equals better cooling, and better cooling means less fade and better overall brake system performance.

StopTech AeroRotors also feature a proprietary alloy chemistry. By adding molybdenum to the gray iron, carefully targeting a narrow range of hardness and tensile strength values, and controlling the cooling rate of the rotor after casting, StopTech produces a friction ring with added crack resistance as well as improved functionality.

Super strong Inconel drive pin washers - as used in aircraft engines and other racing applications - are practically impervious to oxidation or corrosion even at extreme temperatures.

Street rotors use a curved drive pin washer to add tension to the hat assembly, reducing rattle. Race applications use a flat washer that allows full freedom of movement between hat and friction ring.

StopTech AeroHats feature directional stand offs to further improve airflow and cool the rotor.

Elongated drive pin slots allow separate expansion of rotor and hat to resist coning.

Tapered slots allow evacuation of debris that might otherwise accumulate with straight-cut slots.

Drive pins used to affix the hat to the rotor have a slightly out-of-round hole and are self-locking. They withstand high temperatures much better than typical lock washers and allow drive pins to move freely, yet securely, as hat and rotor expand at different rates.

Drive Pins

In certain applications where packaging is an issue - such as on the Chevrolet Corvette - StopTech uses slant-head drive pins to provide improved clearance as pads wear.

Zinc Plating

Zinc Plating, available on StopTech AeroRotors, prevents corrosion. This is particularly useful in winter climates where road salt and other environmental factors may increase the likelihood of oxidation.
