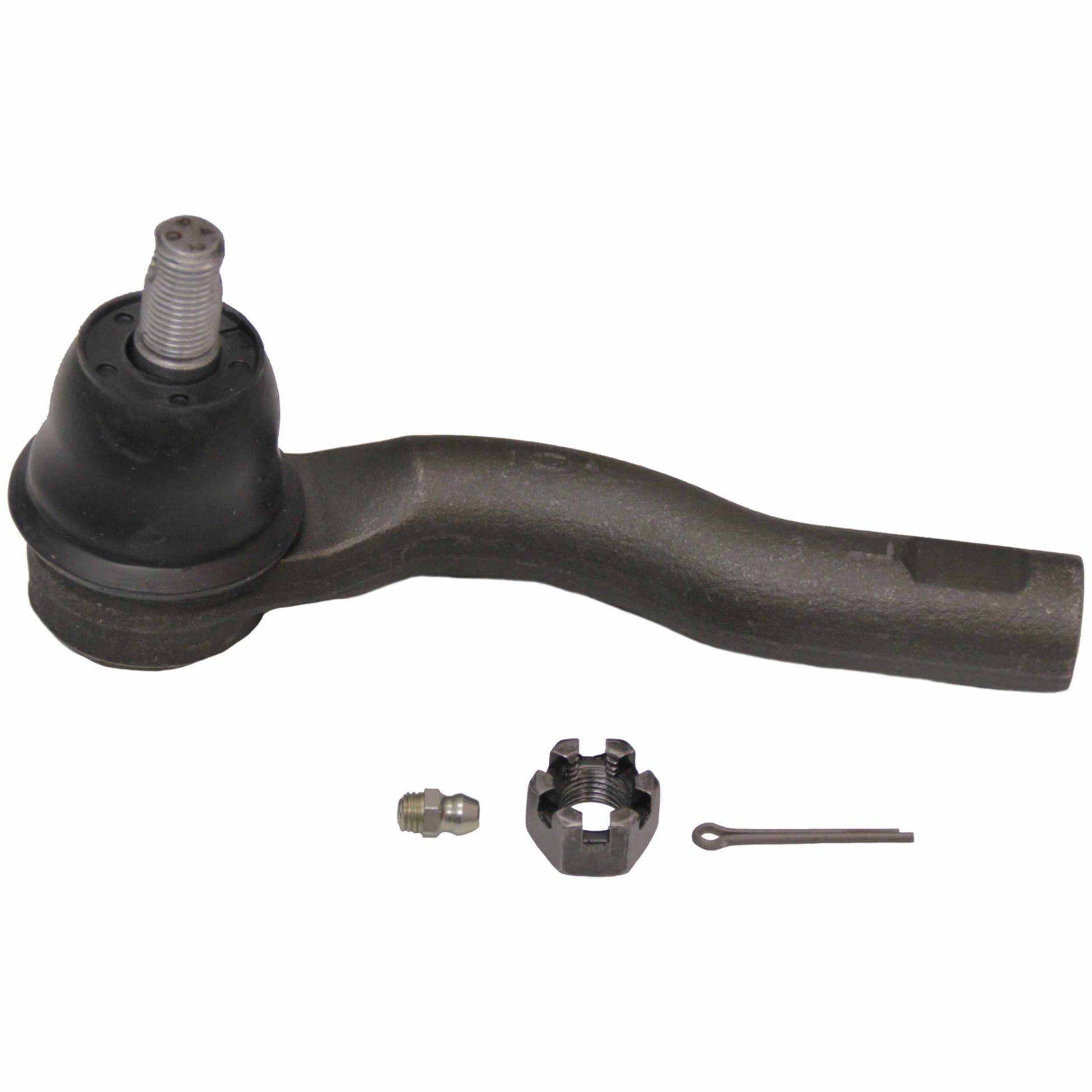

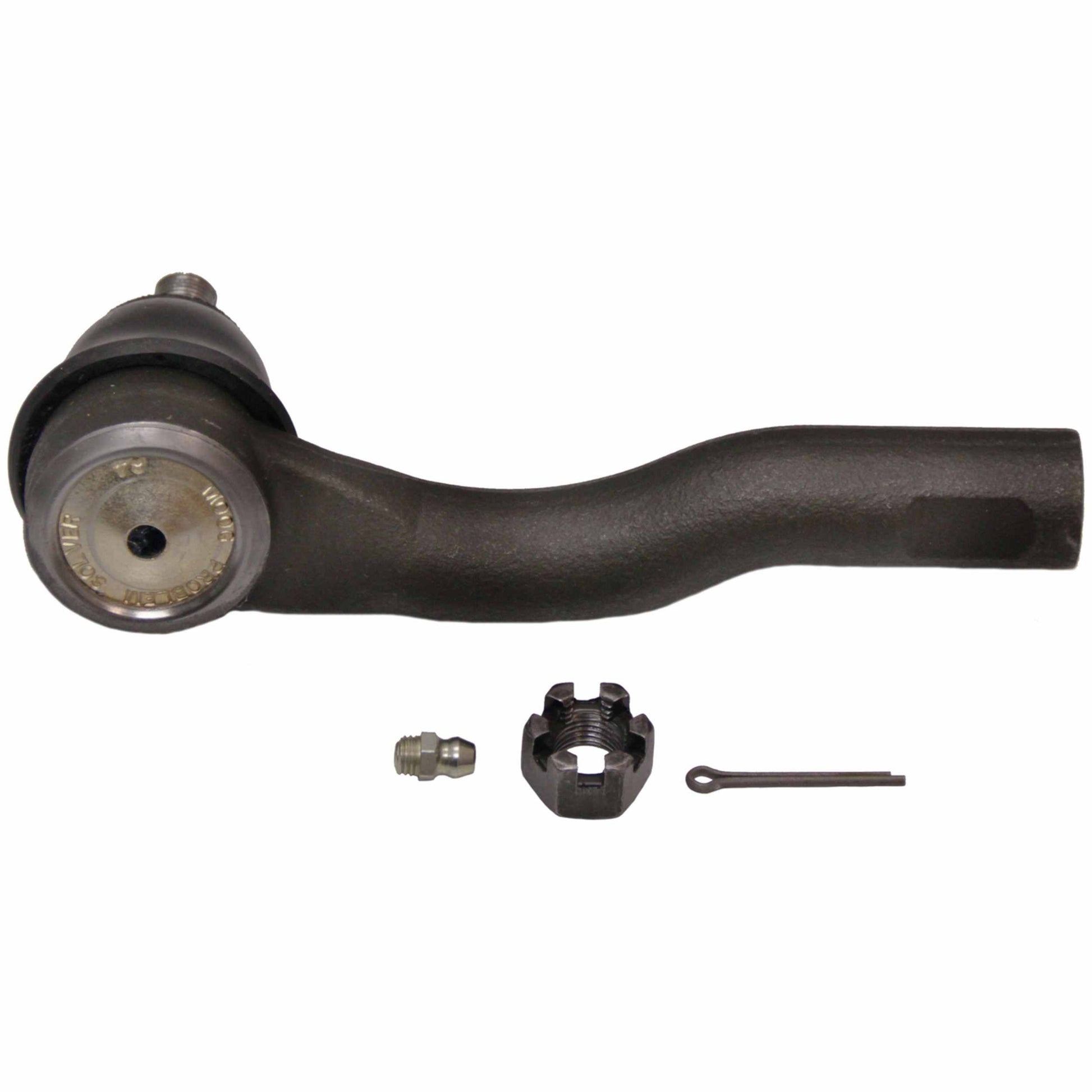

Moog Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

Features:

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications:

• Greasable: Yes
• Stud Center to End (in): 5.710
• Rod Thread: M14 X 1.50
• Configuration: BENT
• Rod Type (Male / Female): FEMALE
• Stud Diameter Dimension (top in.): 0.505
• Stud Diameter Dimension (bottom in.): 0.600
• Stud Thread: M12 X 1.25
• Rack End Thread: M12 X 1.25
• Specification Image Reference: OUTERTIEROD.tif
• Dust Boot Included: Yes
• End 1 Thread Diameter (MM): 14.0
• End 1 Thread Pitch (MM): 1.5
• End 1 Thread Direction: Clockwise
• End 2 Thread Diameter (MM): 12.0
• End 2 Thread Pitch (MM): 1.25
• End 2 Thread Direction: Clockwise

Vehicle Fitments:
