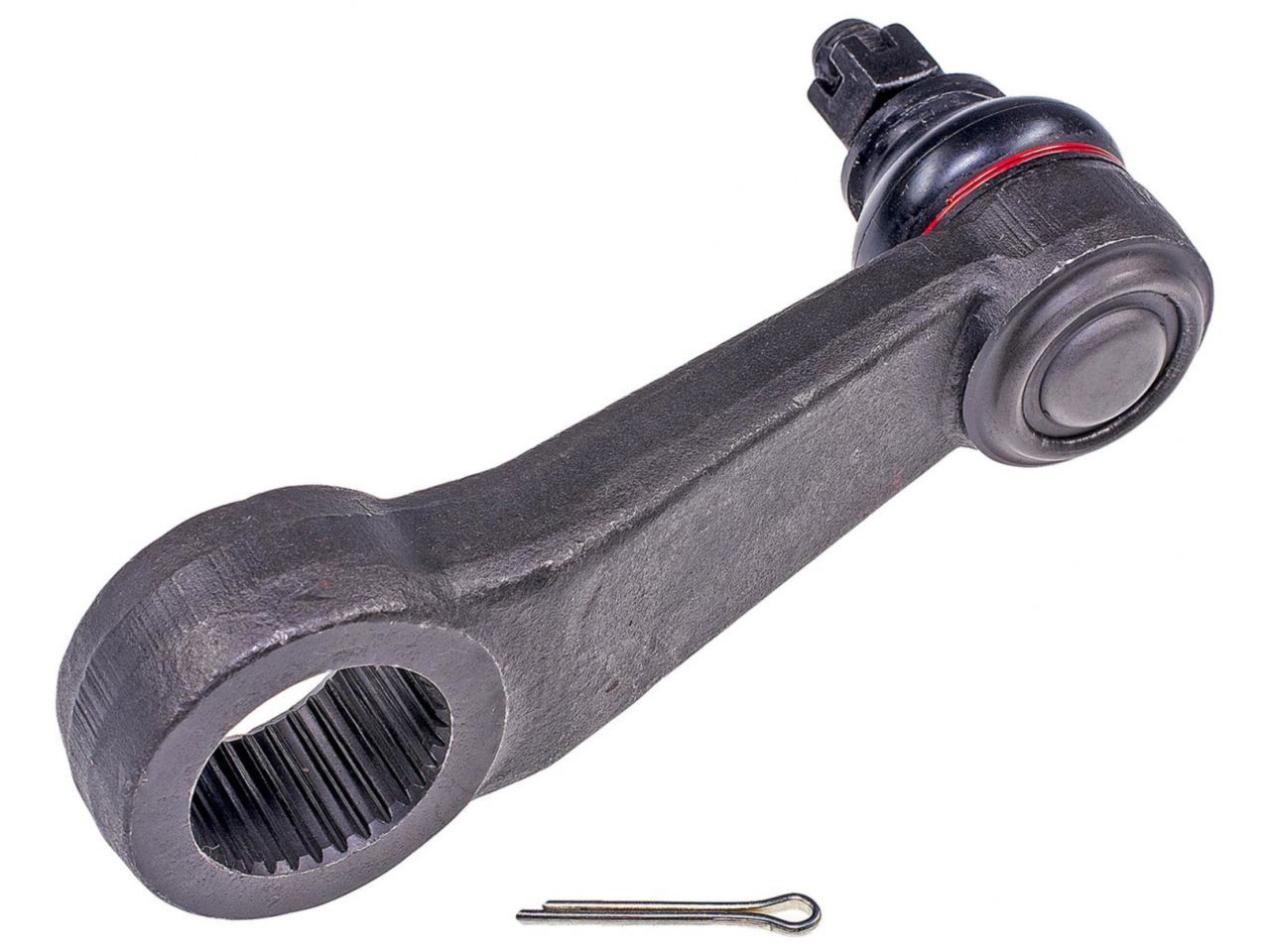

Dorman Steering Pitman Arm

This steering pitman arm is precision-engineered and rigorously tested to provide reliable replacement components for the original part on specific vehicles.

• Direct replacement - this steering pitman arm has been reverse-engineered to match the fit and function of the stock part on specific vehicles
• Reliable fit - precision-engineered to match the design and dimensions of the original part
• Durable construction - manufactured to strict standards using sturdy, safe materials
• Rigorously tested - thorough quality control measures ensure longevity

Application Summary: Dodge Ram 50 1993-90, Mitsubishi Mighty Max 1996-90

Product Specifications

• Castle Nut Included: Yes
• Center Link End Attachment Diameter: 10 mm
• Center Link End Attachment Pitch: 1.25
• Color: Black
• End 1 Attachment Type: Spline
• End 2 Attachment Type: Male Taper
• Finish: Coated
• Grease Fitting Included: No
• Length: 109 mm
• Material: Steel
• Mounting Hardware Included: Yes

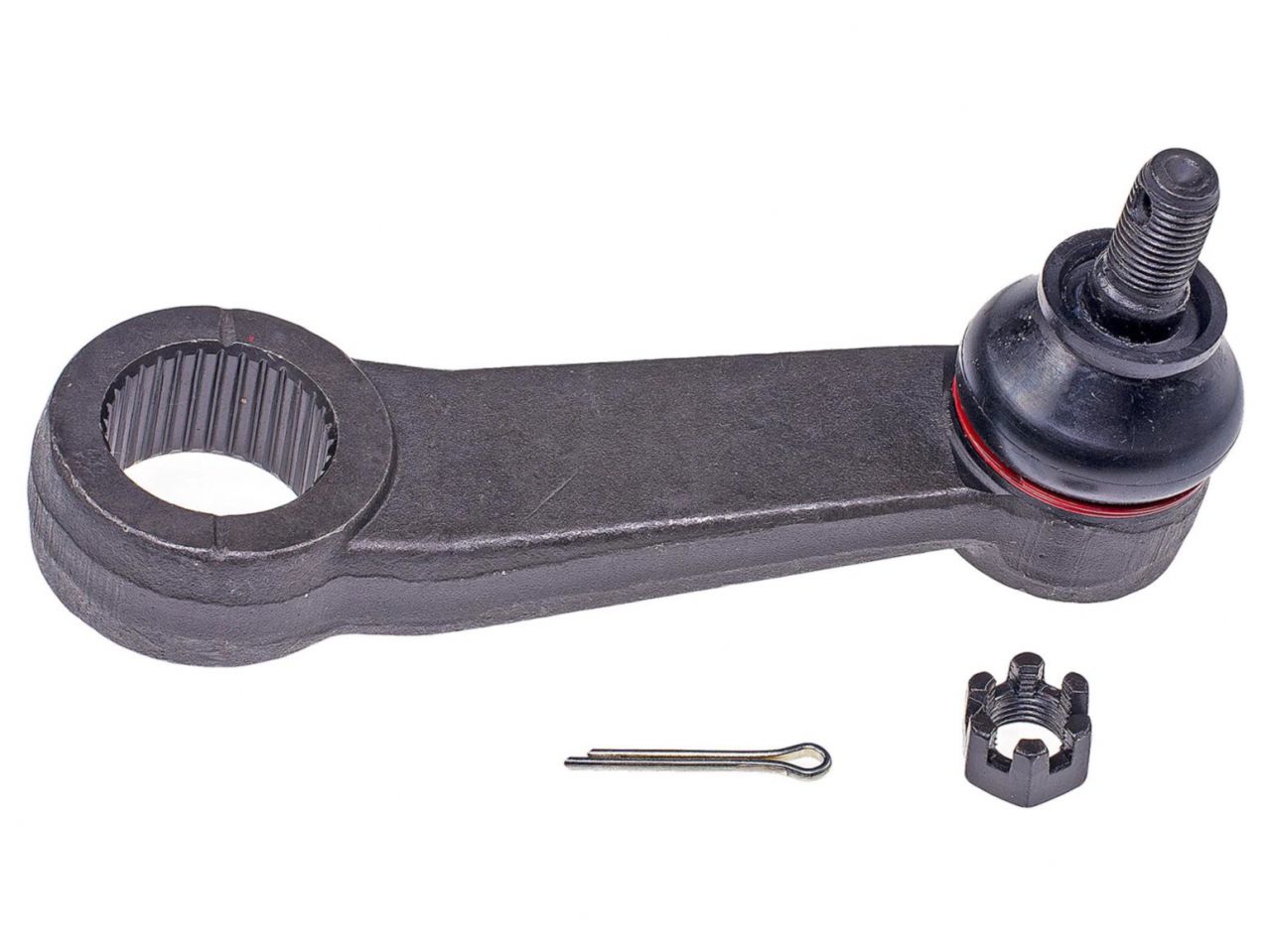

• Package Contents: 1 Pitman Arm; 1 Ball Joint; 1 Castle Nut; 1 Cotter Pin
• Spline Quantity: 43
• Steering Shaft Diameter: 25.5 mm
