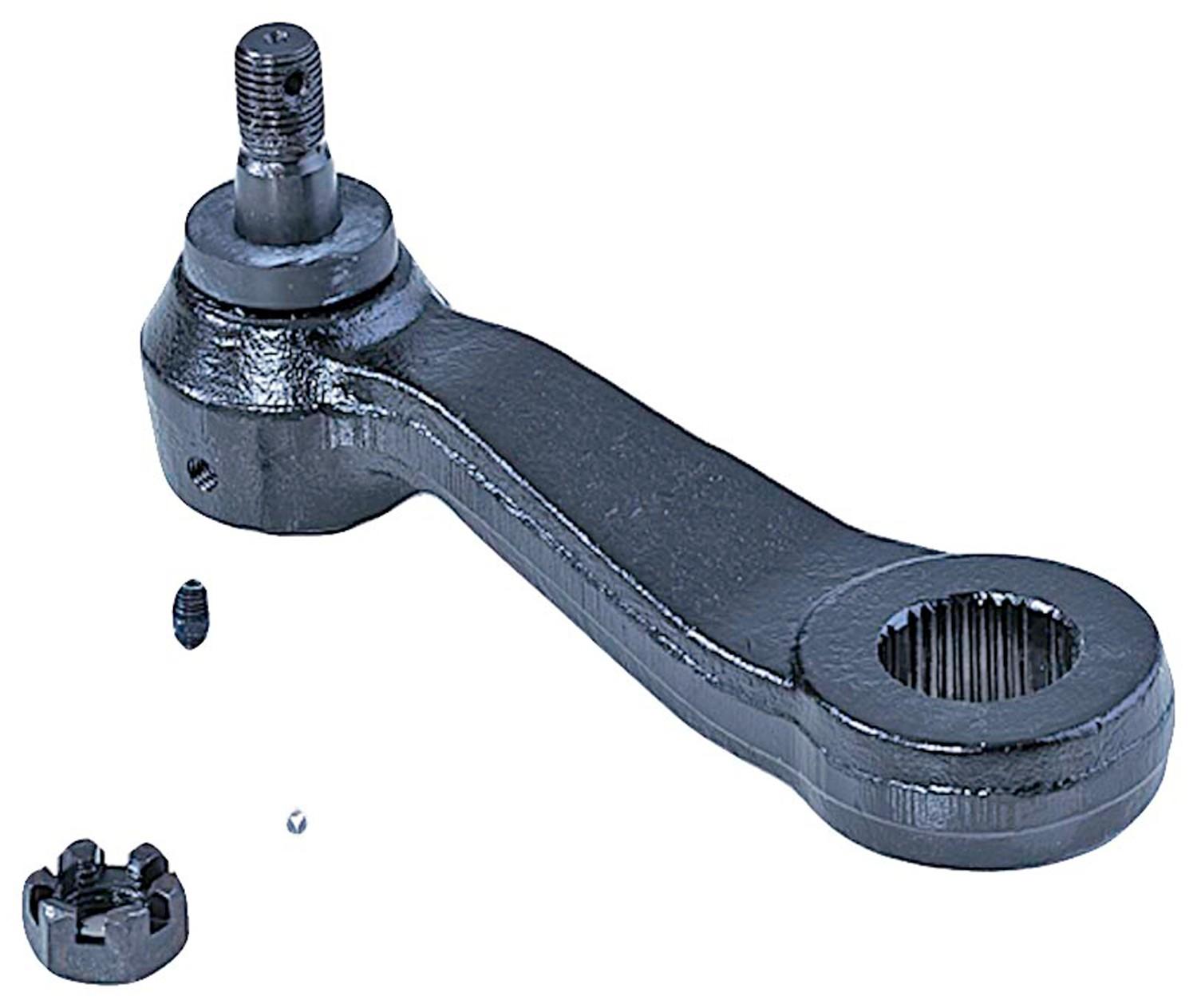

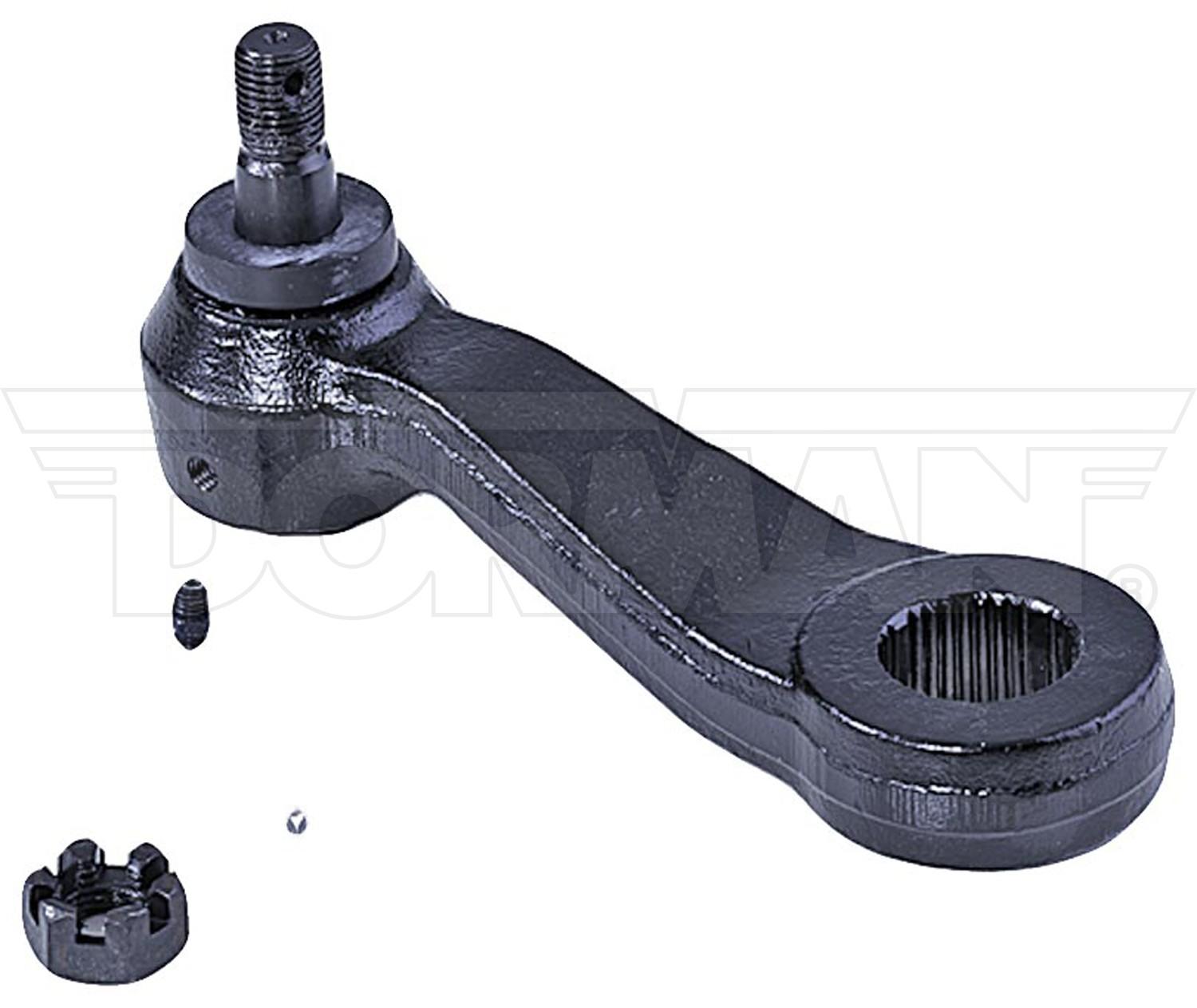

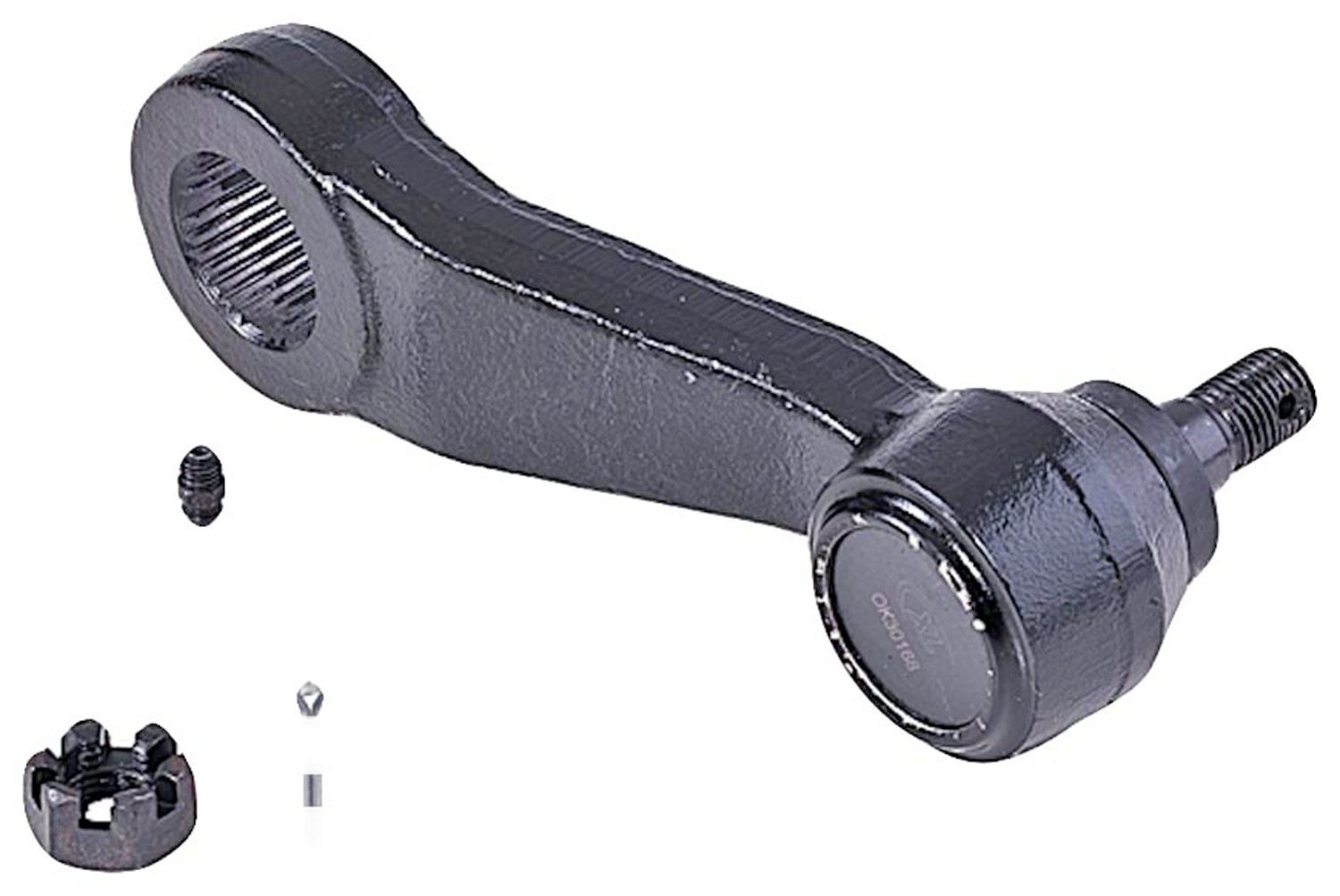

Dorman Steering Pitman Arm

Steering Pitman Arm

Application Summary: Chevrolet 2005-83, GMC 2005-83, Isuzu 2000-98, Oldsmobile 2001-96, Oldsmobile 1994-91

This extended life steering pitman arm is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this pitman arm is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Product Specifications

• Castle Nut Included: Yes
• Center Link End Attachment Diameter: 14 mm
• Center Link End Attachment Pitch: 1.50
• Color: Black
• End 1 Attachment Type: Spline
• End 2 Attachment Type: Male Taper
• Finish: Coated
• Grease Fitting Included: Yes
• Length: 132 mm
• Material: Steel
• Mounting Hardware Included: Yes
• Package Contents: Pitman Arm, Castle Nut, Cotter Pin, Zerk Fitting, Foam Washer
• Spline Quantity: 36
• Steering Shaft Diameter: 29.1 mm

Vehicle Fitments:
