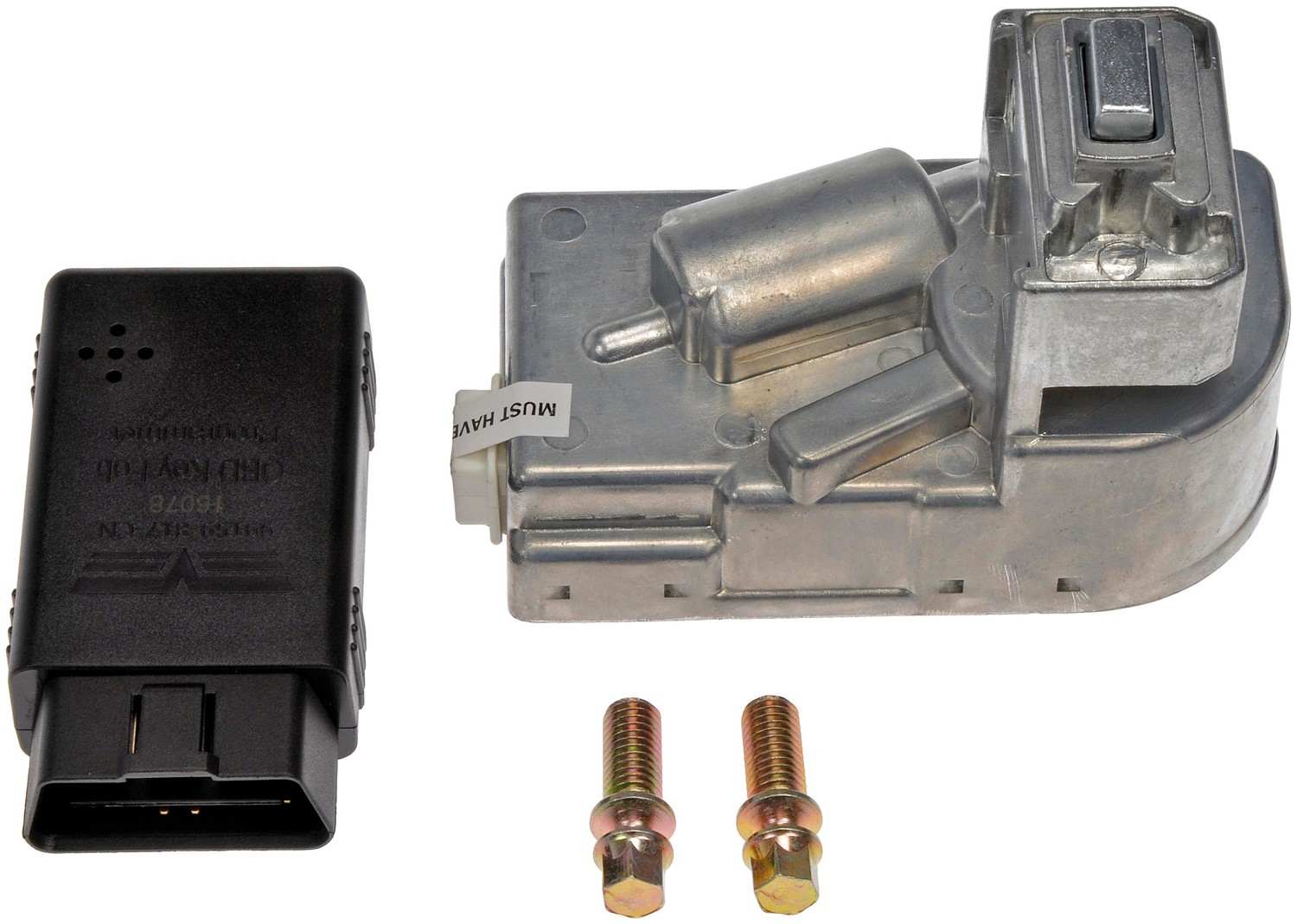

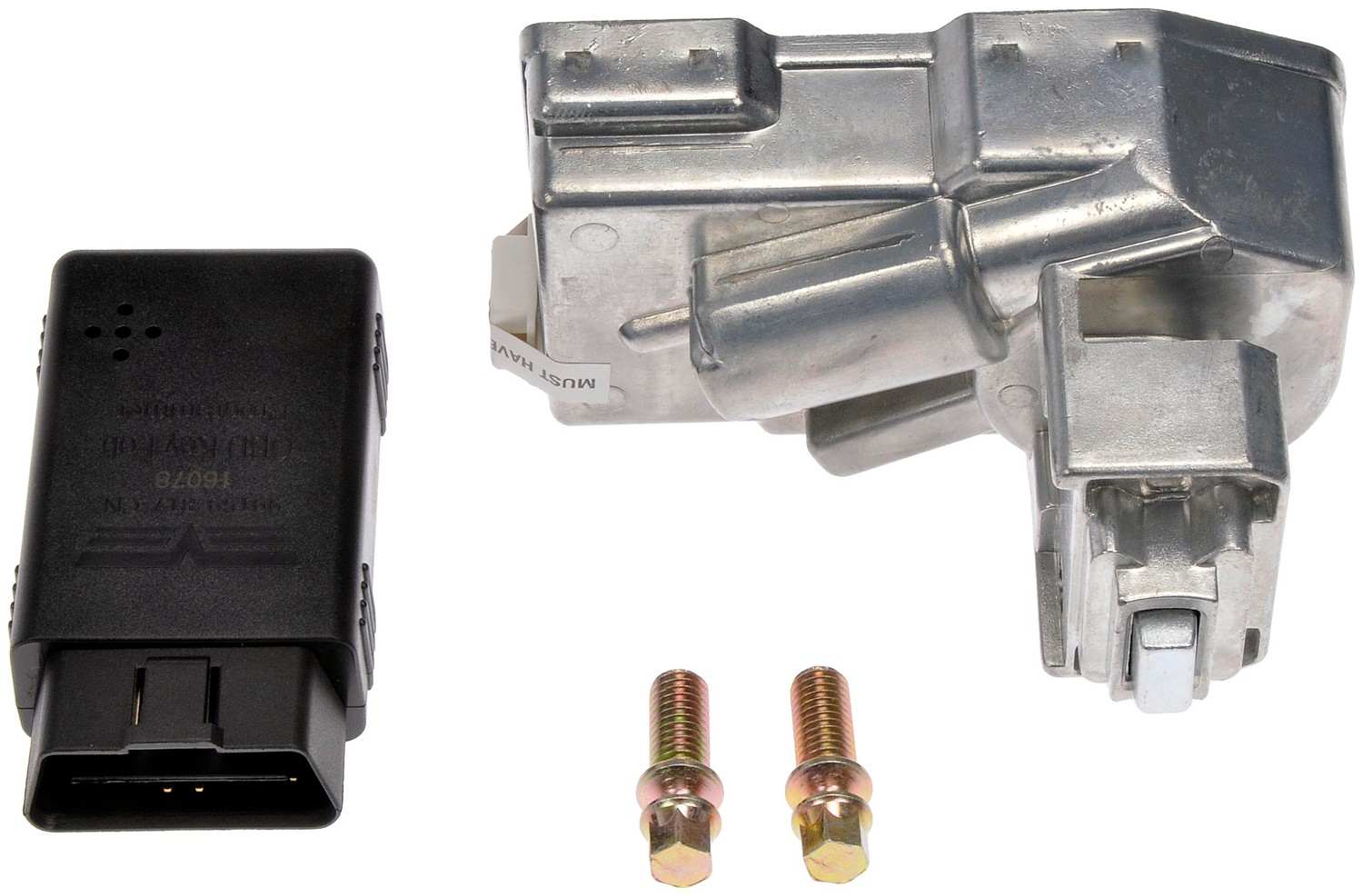

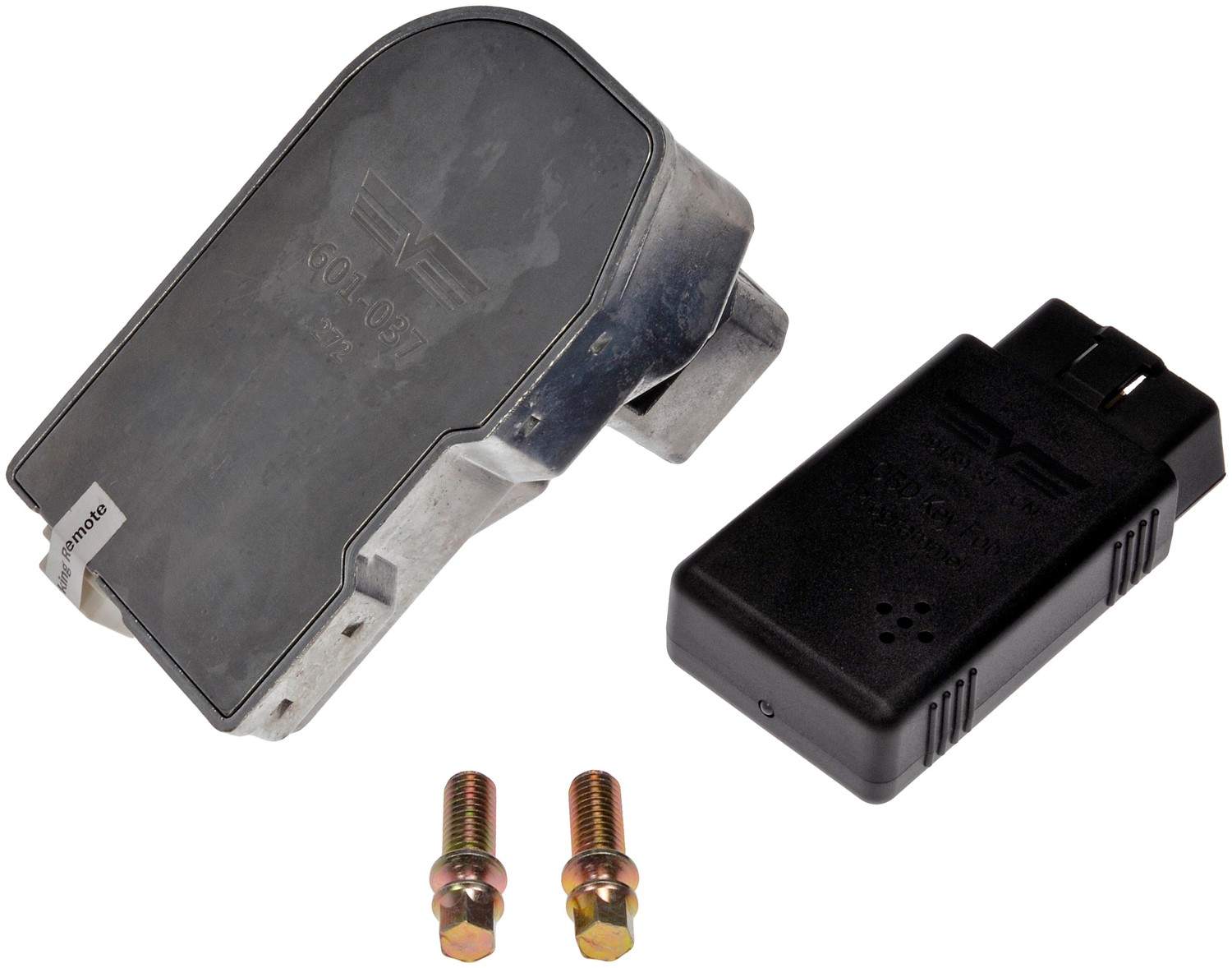

Dorman Steering Column Lock Actuator

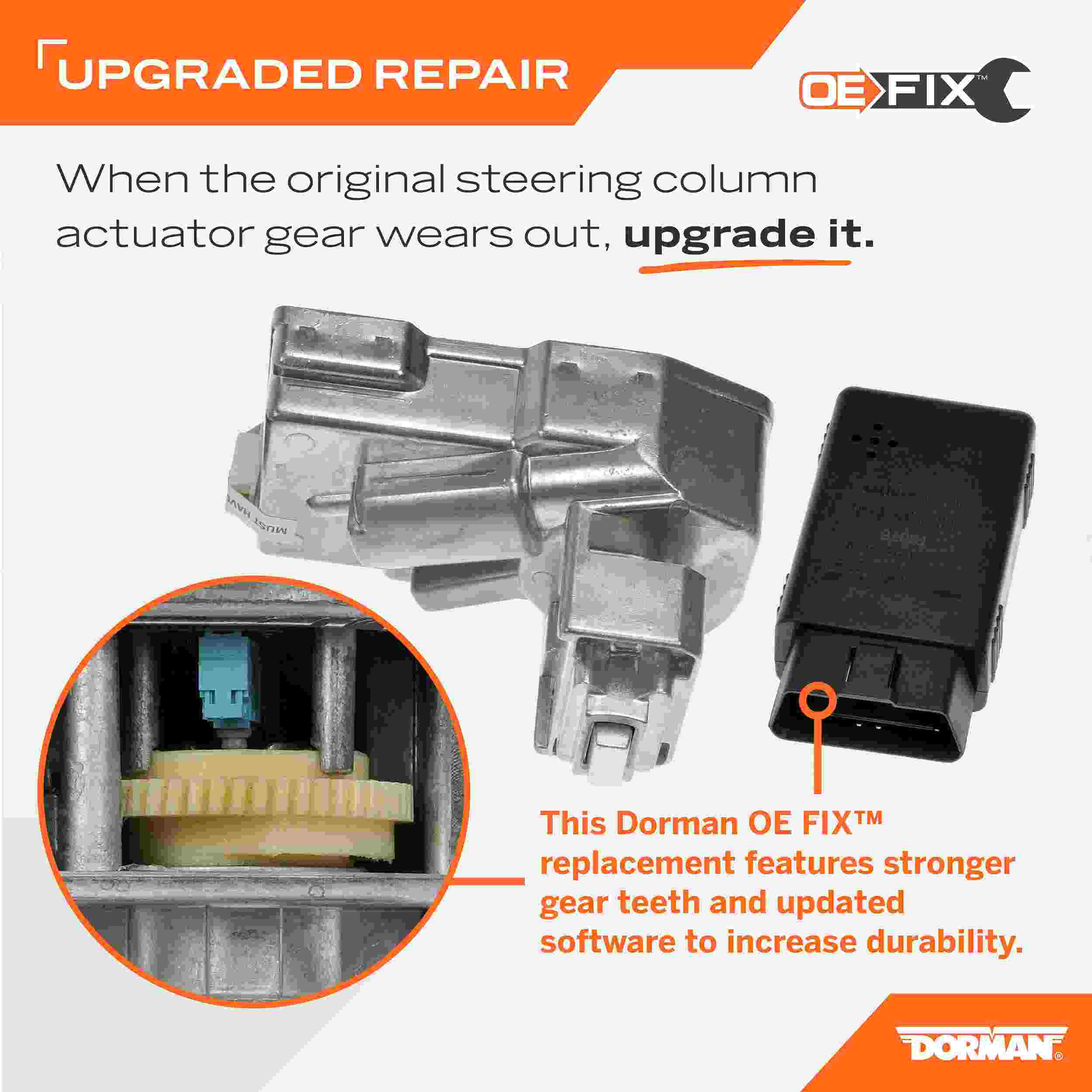

Our electronic steering column lock actuator is part of the vehicle's Smart Key System. The original unit typically requires replacement due to worn gear teeth and the inability to start and release the steering lock. Our OE FIX returns the vehicle to proper working condition by upgrading the gear material for increased durability and a longer service life. Additionally, the updated software adjusts the gear speed to minimize gear teeth wear in the future.

• Direct replacement and operation with the support of a Dorman Programmer
• Improved design mitigates failure mode of faulty internal gear assembly
• Includes easy to follow instructions with a programmer that allows installers to reprogram their vehicle's Smart Remotes
• Vehicle try-on testing has been conducted on this part to ensure a trouble-free performance

Specifications

• Connector Color: White
• Connector Gender: Female
• Connector Shape: Rectangle
• Housing Length: 4.17 In.
• Housing Width: 2.44 In.
• Mount Hole Quantity: 2
• Package Contents: Electronic Ignition Lock and 2 Bolts
• Package Quantity: 1
• Packaging Type: Box
• Terminal Gender: Male
• Terminal Quantity: 1
• Terminal Type: Pin
• Wire Gauge Measurement: 0

Application

• Infiniti 2013-09, Nissan 2017-07
