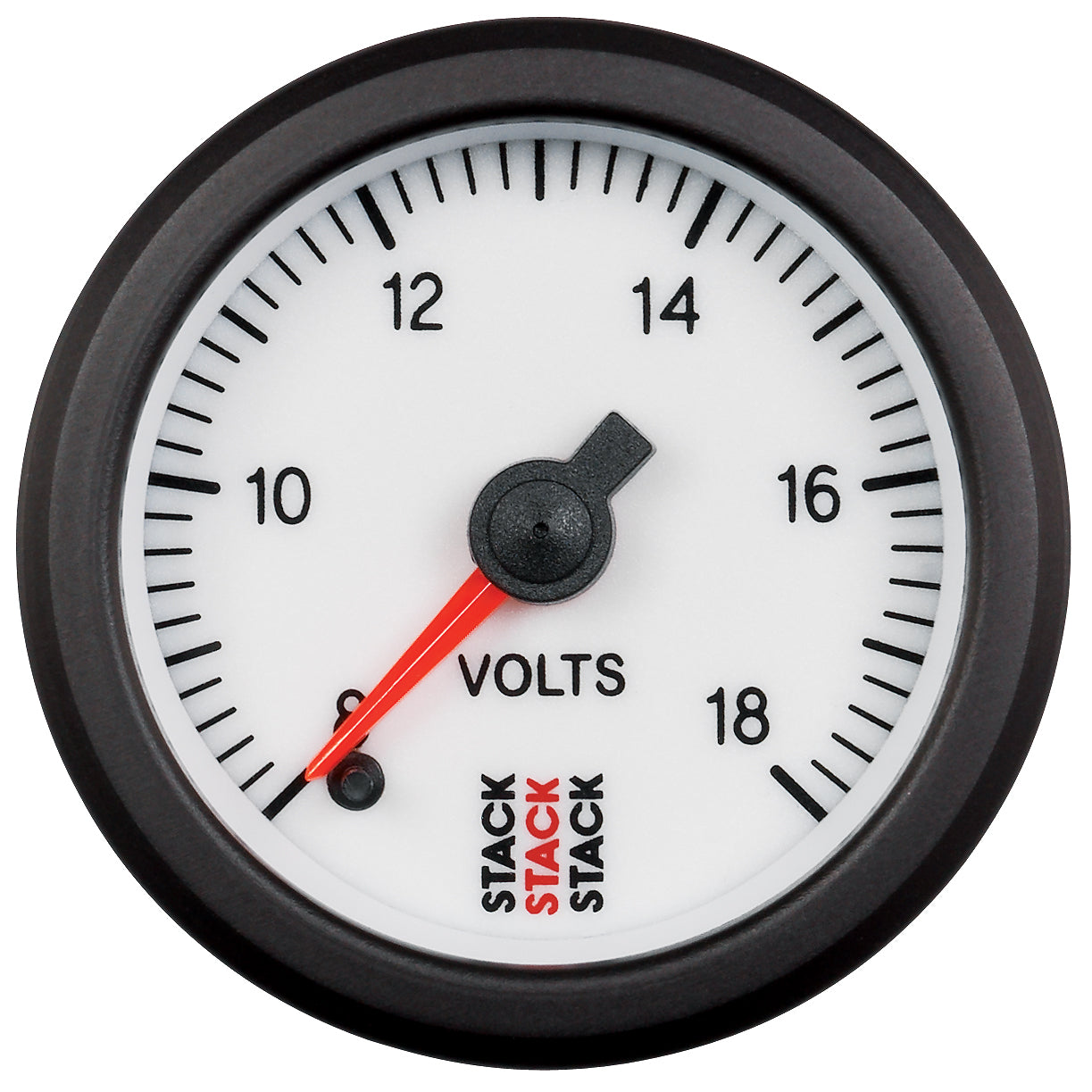

Stack Battery Voltage, Pro Stepper Motor, 52mm, Wht, 8-18v
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)
Stack Wideband Air-Fuel Ratio (Lambda) gauges are the ultimate tuning aid! Dimmable dual digital red numeric and multi-colour radial LED displays provide accurate real-time readout of either air/fuel ratio or lambda (user-selectable) in a format that is optimised for driver viewing. User adjustable scaling allows for tailored calibration for specialty fuel types and maximum display resolution per application. Inbuilt peak lean value recall and user programmable alarm setting enable quick data review and driver alerts. Inboard photo sensor provides automatic display intensity adjustment for varying ambient lighting conditions (manual driver control may be enabled via switch connection to the illumination wire on the loom). 0-5Volt analogue and serial data outputs may be connected to a data-logger, ECU or other device to provide real-time closed-loop feedback for improved mapping. Pro-Control output allows automatic control of other power systems based on specific Lambda conditions. Supplied complete with wiring harness and includes Bosch LSU4.9 sensor.
Professional Stepper Motor Analogue Gauges
These precision auxiliary instruments combine digital microprocessor accuracy with a high-precision stepper motor needle movement, to provide a new level of accuracy and reliability in 52mm gauges. They combine the durability and readability of 270° mechanical gauges with the easy installation and safe operation of conventional electric gauges.
The 270° dialface together with the new white LED backlighting and illuminated needle ensure excellent readability day or night
Features:
- 52mm diameter
- Fast, smooth stepper motor needle drive
- 270° full sweep movement for excellent readability
- Remotely mounted solid-state sensors keep hazardous fluids in the engine compartment
- Better than 2% accuracy
- All-electronic design for maximum reliability
- White LED through-the-dial backlighting
- Black dialface with White LED illuminated needle or White dialface with Orange LED illuminated needle
- Classic Range features aircraft style perimeter incandescent lighting for a period correct look
