SPC Performance 05+ Chrysler 300/04-08 Pacifica/08+ Dodge Challenger/06+ Charger Rear

Dodge Rear Toe Bushing

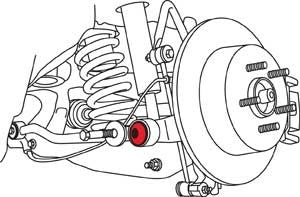

Extend the range of rear toe adjustment by ±1.5° on the rear of the Chrysler LX platform by installing SPC's offset bushing. The OE rear toe cam on the Challenger, Charger, 300, Magnum, and Pacifica gives you a ±1.0° window of adjustment. This is often not enough, especially if the suspension has been modified. Simply replace the OE bushing with SPC's offset bushing and use the factory cam to fine tune adjustment. The OE toe link is difficult to remove because the inner bolt is trapped. This kit is designed to replace the outer bushing while the arm is still on the car to save time. The OE bushing can be pressed out and the SPC bushing pressed in using p/n 40920 bushing press and p/n 66025 press adapter kit. Do you need camber change as well? Use SPC p/n 66050 for ±1.5° of rear camber adjustment.

Specifications

Rear Adjustment Range: ±1.5° Toe

Installation time: .3 hr/side

Required: 1 kit per wheel

Vehicle Fitments:
